Search › Model › YY61

YY61

Toyota TOYOACE-DYNA · 1985 · 3,278 parts · 166 categories

3,278 items

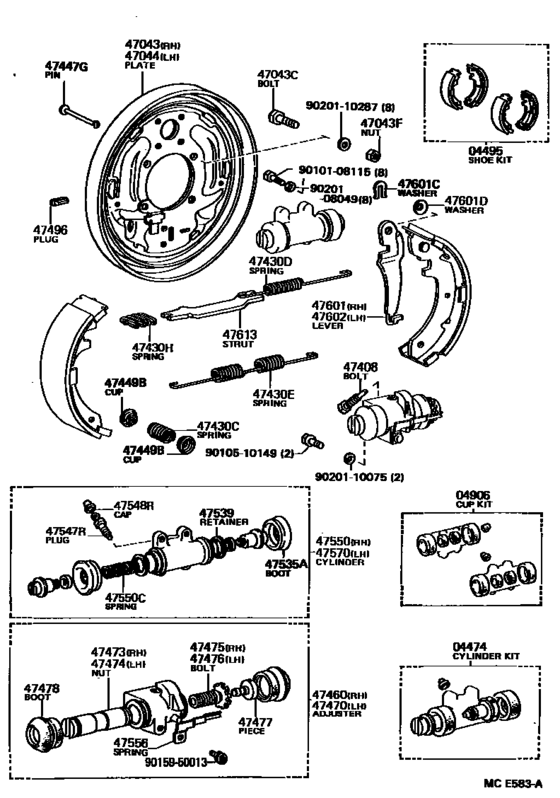

Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG) 46

#	OEM	Part name
4474	04474-26020	Cylinder Kit, Rear Wheel
4495	04495-26031	Shoe Kit, Rear Brake
4495	04495-26170	Shoe Kit, Rear Brake
4495	04497-26041	Shoe Kit, Rear Brake
4906	04906-26040	Cup Kit, Rear Wheel Cylinder
47043	47043-26031	Plate Sub-Assy, Brake Backing, Rear Rh
47043	90101-10028	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	90170-10021	Nut(For Steering Center Arm)
47044	47044-26031	Plate Sub-Assy, Brake Backing, Rear Lh
47408	47408-30020	Bolt Sub-Assy, Retracting Spring Clamp
47430	90501-20756	Spring(For Front Brake Shoe Hold Down)
47430	90506-23010	Spring, Tension(For Rear Brake Shoe Return)
47430	90506-26159	Spring, Tension(For Rear Brake Shoe Return)
47430	90504-14003	Spring, Compression(For Parking Brake Shoe Strut)
47447	47447-20010	Pin, Shoe Hold Down Spring(For Front Brake)
47449	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47460	47460-28011	Adjuster Assy, Shoe, Rh(For Rear Brake)
47470	47470-28011	Adjuster Assy, Shoe, Lh(For Rear Brake)
47473	47473-28010	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47474	47474-28010	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47475	47475-28010	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476	47476-28010	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47477	47477-28010	Piece, Shoe Support (For Rear Brake)
47478	47478-28010	Boot, Adjuster Cylinder(For Rear Brake)
47496	47491-36010	Plug, Hole(For Front Brake)
47496	47491-36020	Plug, Hole(For Rear Brake)
47535	47535-26030	Boot, Rear Wheel Cylinder
47539	47539-26020	Retainer, Wheel Cylinder Boot
47547	47547-26010	Plug, Bleeder (For Deceleration Sensing Proportionin)
47548	31478-30010	Bleeder Plug Cap
47550	47550-26070	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	90501-07006	Spring, Compression(For Rear Wheel Brake Cylinder)
47550	90029-60014	Spring, Compression(For Rear Wheel Brake Cylinder)
47556	47555-28010	Spring, Adjuster Lock(For Rear Brake)
47556	47556-28010	Spring, Adjuster Lock(For Rear Brake)
47601	47611-26040	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)
47601	90213-07010	Washer, Type C(For Parking Brake Shoe)
47601	90206-10059	Washer, Wave(For Rear Brake)
47602	47612-26040	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)
47613	47613-26010	Strut, Parking Brake Shoe (For Rear Brake)
9010108115	90101-08115	Bolt(For Rear Wheel Cylinder)
9010510149	90105-10149	New Genuine Part
9015950013	90159-50013	New Genuine Part
9020108049	90201-08049	Washer(For Rear Wheel Cylinder)
9020110075	90201-10075	WASHER
9020110287	90201-10287	Washer(For Front Wheel Cylinder)

OEM	Part name	Category
04474-26020	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
04495-26031	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
04495-26170	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
04497-26041	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
04906-26040	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47043-26031	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47044-26031	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47408-30020	Bolt Sub-Assy, Retracting Spring Clamp	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47447-20010	Pin, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47460-28011	Adjuster Assy, Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47470-28011	Adjuster Assy, Shoe, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47473-28010	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47474-28010	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47475-28010	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47476-28010	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47477-28010	Piece, Shoe Support (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47478-28010	Boot, Adjuster Cylinder(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47491-36010	Plug, Hole(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47491-36020	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47535-26030	Boot, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47539-26020	Retainer, Wheel Cylinder Boot	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47547-26010	Plug, Bleeder (For Deceleration Sensing Proportionin)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47550-26070	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47555-28010	Spring, Adjuster Lock(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47556-28010	Spring, Adjuster Lock(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47611-26040	Lever Sub-Assy, Parking Brake Shoe, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47612-26040	Lever Sub-Assy, Parking Brake Shoe, Lh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
47613-26010	Strut, Parking Brake Shoe (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90029-60014	Spring, Compression(For Rear Wheel Brake Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90101-08115	Bolt(For Rear Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90101-10028	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90105-10149	New Genuine Part	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90159-50013	New Genuine Part	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90170-10021	Nut(For Steering Center Arm)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90201-08049	Washer(For Rear Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90201-10075	WASHER	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90201-10287	Washer(For Front Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90206-10059	Washer, Wave(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90213-07010	Washer, Type C(For Parking Brake Shoe)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90501-07006	Spring, Compression(For Rear Wheel Brake Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90501-20756	Spring(For Front Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90504-14003	Spring, Compression(For Parking Brake Shoe Strut)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90506-23010	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)
90506-26159	Spring, Tension(For Rear Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([08.1994 - ] (8708- )LY50,YY5#..125..WT1 ; (9408- )LPG)

Source: Public OEM parts-catalog data
Variants: 2 / 58
Category: 166
Collected: 2026-08-03
