| 11493-71011 |
Gasket, Water Seal Plate |

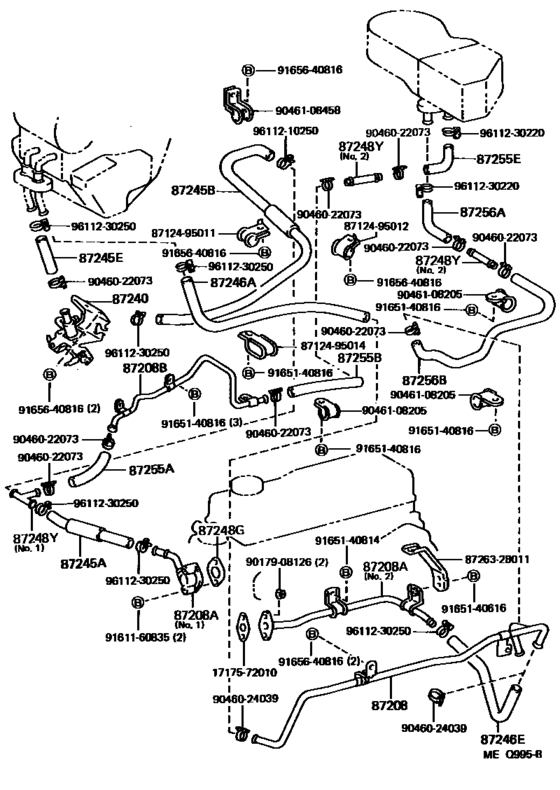

Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 17175-72010 |
Gasket, Heater Pipe |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 17175-72011 |
Gasket, Heater Pipe |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 87124-95011 |
Clamp, Heater |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 87124-95012 |
Clamp, Heater |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 87124-95014 |
Clamp, Heater |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 87208-25010 |
Pipe Sub-Assy, Heater Water |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 87208-28021 |
Pipe Sub-Assy, Heater Water |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 87208-28500 |
Pipe Sub-Assy, Heater Water |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 87240-95409 |
Valve Assy, Heater Water |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 87245-95045 |
Hose, Heater Water, Inlet A |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 87245-95051 |
Hose, Heater Water, Outlet E |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 87263-28011 |
Bracket, Water By-Pass Pipe |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 90080-11228 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 90080-11395 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 90119-A0109 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 90179-08126 |
Nut |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 90460-22073 |
Clip(For Ventilation Hose No.2) |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 90460-24039 |
Clamp Or Clip, Hose(For Oil Cooler Hose) |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 90461-08205 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 90461-08458 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 90467-19022 |
Clip(For Ventilation Hose No.2) |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 90467-21010 |
Clip(For Ventilation Hose No.2) |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 91611-60835 |
Bolt(For Clutch Release Cylinder Setting) |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 91621-60614 |
Bolt(For Transaxle & Engine Setting) |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 91651-40616 |
BOLT |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 91651-40814 |
BOLT |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 91651-40816 |
BOLT |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 91651-B0814 |
Bolt with washer |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 91656-40816 |
New Genuine Part |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 96112-10220 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 96112-10250 |
Clamp Or Clip, Hose(For Oil Cooler Hose) |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 96112-30220 |
Clamp Or Clip, Hose(For Water By-Pass Hose) |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 96112-30250 |
Clamp Or Clip, Hose(For Oil Cooler Hose) |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 99556-30135 |
Hose, Heater Water, Inlet E |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 99556-30200 |
Hose, Heater Water, Inlet D |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 99556-30740 |
Hose, Heater Water, Outlet A |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
| 99556-31000 |
Hose, Heater Water, Inlet B |
Heating & Air Conditioning - Water Piping ([08.1990 - ] W(REAR HEATER) (9008- )YY5#,61) |
