Search › Model › YY61

YY61

Toyota TOYOACE-DYNA · 1985 · 3,278 parts · 166 categories

3,278 items

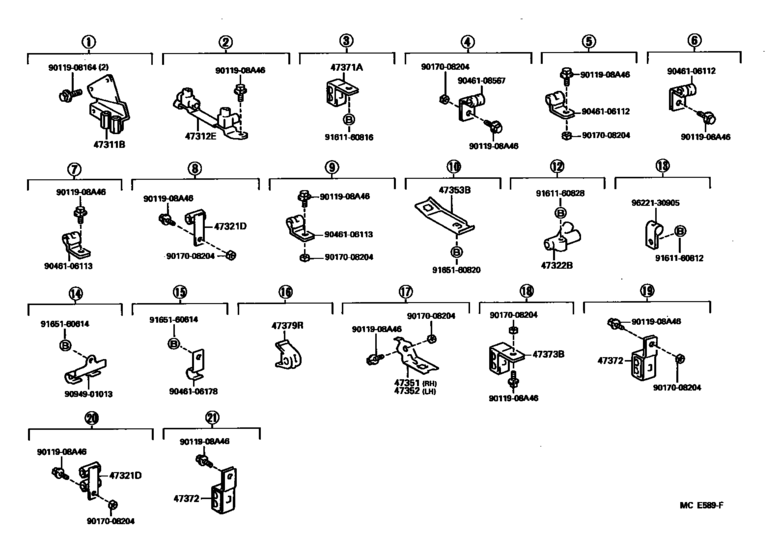

Brake Tube & Clamp ([08.1987 - ] (8708- )) 54

#	OEM	Part name
4477	04477-60010	Bush & Boot Kit, Load Sensing Spring
47311	90412-10129	Way, No.1(For Front Brake Tube)
47312	90414-10015	Way, No.2(For Front Brake Tube)
47321	90412-10126	Way(For Front Brake Tube)
47322	90413-10147	Way, 3(For Rear Brake Tube)
47351	47351-25081	Bracket, Flexible Hose(For Front Rh)
47352	47352-25091	Bracket, Flexible Hose(For Front Lh)
47353	47353-25080	Bracket, Flexible Hose(For Rear)
47371	47373-25020	Clamp, Brake Tube, No.1
47372	47372-25010	Clamp, Brake Tube, No.1
47373	47373-25010	Clamp, Brake Tube, No.1
47910	47910-26171	Valve Assy, Load Sensing Proportioning
47920	47920-25020	Spring Assy, Load Sensing
47920	90387-08099	Collar(For Load Sensing Spring)
47920	90467-31110	Clip(For Load Sensing Valve Boot)
47920	90202-10103	Washer(For Load Sensing Spring)
47931	47931-25030	Bracket, Load Sensing Valve
47933	47933-36050	Bracket, Load Sensing Shackle, No.1
47933	94130-00802	Nut, No.1 (For Center Support Bearing)
47933	47933-36051	Bracket, Load Sensing Shackle, No.1
47935	47935-35010	Shackle, Load Sensing Spring, No.1
47935	90385-10064	Bush(For Load Sensing Spring Shackle)
47935	90948-02033	Retainer(For Load Sensing Spring Shackle)
47936	47936-35010	Shackle, Load Sensing Spring, No.2
47937	47937-60010	Plate, Load Sensing Valve Set
9011908	90119-08A46	BOLT WWASHER
9011908164	90119-08164	Bolt
9011908164	90119-08802	BOLT WWASHER
9011908703	90119-08703	New Genuine Part
9017008204	90170-08204	Nut (For Propeller Shaft)
9020123360	90201-23360	WASHER
9046106112	90461-06112	Clamp, Brake Tube, No.6
9046106113	90461-06113	Clamp, Brake Tube, No.2
9046106178	90461-06178	New Genuine Part
9046108567	90461-08567	New Genuine Part
9094901013	90949-01013	New Genuine Part
9113150840	91131-50840	BOLT
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161160828	91611-60828	Bolt(For Clutch Release Cylinder Setting)
9165160614	91651-60614	Bolt
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9411040800	94110-40800	Nut(For Steering Damper)
9411041000	94110-41000	Nut(For Steering Damper)
9414140800	94141-40800	New Genuine Part
9451200800	94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)
9451201000	94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)
9538102020	95381-02020	PIN
9622130905	96221-30905	CLAMP

OEM	Part name	Category
04477-60010	Bush & Boot Kit, Load Sensing Spring	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47351-25081	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47352-25091	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47353-25080	Bracket, Flexible Hose(For Rear)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47372-25010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47373-25010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47373-25020	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47910-26171	Valve Assy, Load Sensing Proportioning	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47920-25020	Spring Assy, Load Sensing	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47931-25030	Bracket, Load Sensing Valve	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47933-36050	Bracket, Load Sensing Shackle, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47933-36051	Bracket, Load Sensing Shackle, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47935-35010	Shackle, Load Sensing Spring, No.1	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47936-35010	Shackle, Load Sensing Spring, No.2	Brake Tube & Clamp ([08.1987 - ] (8708- ))
47937-60010	Plate, Load Sensing Valve Set	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90119-08164	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90119-08703	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90119-08802	BOLT WWASHER	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90119-08A46	BOLT WWASHER	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90170-08204	Nut (For Propeller Shaft)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90201-23360	WASHER	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90202-10103	Washer(For Load Sensing Spring)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90385-10064	Bush(For Load Sensing Spring Shackle)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90387-08099	Collar(For Load Sensing Spring)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90412-10126	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90412-10129	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90413-10147	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90414-10015	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90461-06112	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90461-06113	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90461-06178	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90461-08567	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90467-31110	Clip(For Load Sensing Valve Boot)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90948-02033	Retainer(For Load Sensing Spring Shackle)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
90949-01013	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91131-50840	BOLT	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-60820	Bolt(For Transaxle & Engine Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-60828	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-B0812	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-B0816	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91611-G0820	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91651-60614	Bolt	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91651-60820	Bolt, Radiator Side Support Plate	Brake Tube & Clamp ([08.1987 - ] (8708- ))
91651-B0820	Bolt, Radiator Side Support Plate	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94110-40800	Nut(For Steering Damper)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94110-41000	Nut(For Steering Damper)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94130-00802	Nut, No.1 (For Center Support Bearing)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94141-40800	New Genuine Part	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94512-00800	Washer, No.1 (For Propeller Shaft & Differential Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
94512-01000	Washer, No.1 (For Propeller Shaft & Differential Setting)	Brake Tube & Clamp ([08.1987 - ] (8708- ))
95381-02020	PIN	Brake Tube & Clamp ([08.1987 - ] (8708- ))
96221-30905	CLAMP	Brake Tube & Clamp ([08.1987 - ] (8708- ))

Source: Public OEM parts-catalog data
Variants: 2 / 58
Category: 166
Collected: 2026-08-03
