YY52

Toyota TOYOACE-DYNA · 1985 · 3,130 parts · 168 categories

← Back to categories

3,130 items

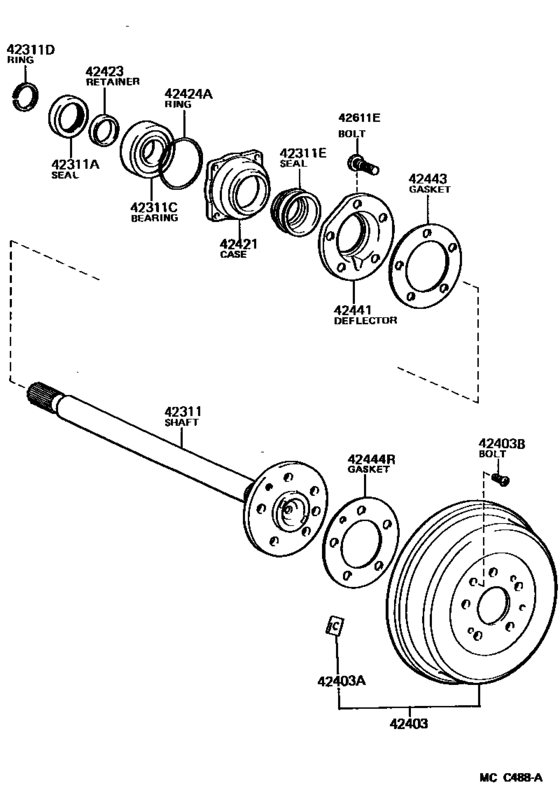

Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST) 16

#	OEM	Part name
42311	42311-25090	Shaft, Rear Axle
42311	90310-50001	Seal, Oil (For Rear Axle Shaft)
42311	90310-50006	Seal, Oil (For Rear Axle Shaft)
42311	90363-40041	Bearing (For Rear Axle Shaft)
42311	90520-36045	Ring, Snap (For Rear Axle Shaft)
42311	90313-48001	Seal, Oil (For Rear Axle Shaft Outer)
42403	42431-25070	Drum Sub-Assy, Rear Brake
42421	42421-35030	Case, Rear Axle Bearing
42423	42423-20010	Retainer, Rear Axle Bearing, Inner
42424	90301-88077	Ring, O (For Rear Axle Bearing Case)
42441	42441-25041	Deflector, Brake Drum Oil
42443	42443-25010	Gasket, Brake Drum Oil Deflector
42444	42444-25010	Gasket, Brake Drum (For Rear Axle)
42444	42444-25020	Gasket, Brake Drum (For Rear Axle)
42611	90942-02030	Bolt, Hub (For Rear Axle Rh)
42611	90942-02083	Bolt, Hub (For Rear Axle)

OEM	Part name	Category
42311-25090	Shaft, Rear Axle	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
42421-35030	Case, Rear Axle Bearing	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
42423-20010	Retainer, Rear Axle Bearing, Inner	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
42431-25070	Drum Sub-Assy, Rear Brake	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
42441-25041	Deflector, Brake Drum Oil	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
42443-25010	Gasket, Brake Drum Oil Deflector	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
42444-25010	Gasket, Brake Drum (For Rear Axle)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
42444-25020	Gasket, Brake Drum (For Rear Axle)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
90301-88077	Ring, O (For Rear Axle Bearing Case)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
90310-50001	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
90310-50006	Seal, Oil (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
90313-48001	Seal, Oil (For Rear Axle Shaft Outer)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
90363-40041	Bearing (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
90520-36045	Ring, Snap (For Rear Axle Shaft)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
90942-02030	Bolt, Hub (For Rear Axle Rh)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
90942-02083	Bolt, Hub (For Rear Axle)	Rear Axle Shaft & Hub ([08.1987 - ] (8708- )LY50,YY5#..TS..ST)
