YY51

Toyota TOYOACE-DYNA · 1987 · 3,205 parts · 167 categories
YY51 ×

← Back to categories

3,205 items

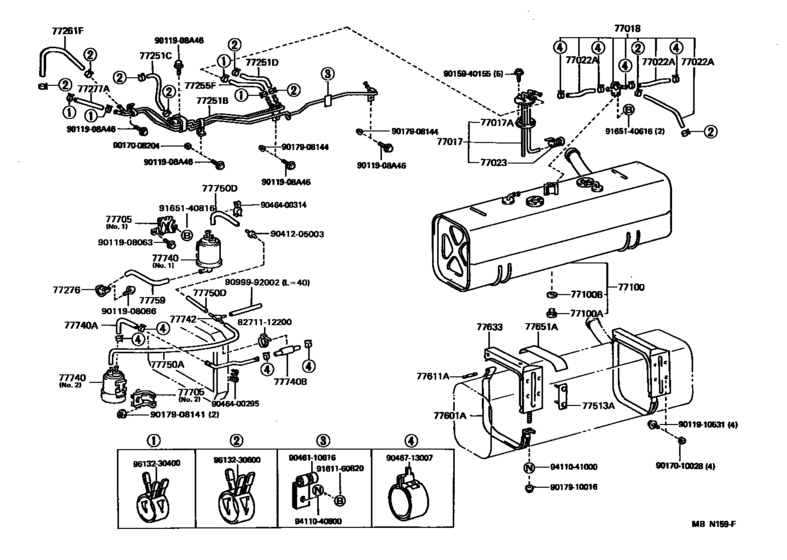

Fuel Tank & Tube ([08.1987 - ] (8708- )YY5#,61..TW) 73
#OEMPart name
77017 77017-25070 Tube Sub-Assy, Fuel And Evaporation Vent
77017 77169-14020 Gasket, Fuel Tank Vent
77018 77018-25100 Valve Sub-Assy, Fuel Vapour Separate
77018 77018-26130 Valve Sub-Assy, Fuel Vapour Separate
77022 95333-06030 Hose, Fuel
77022 95338-06030 HOSE, FUEL
77022 95333-08020 Hose, Lpg Injector
77022 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77023 77023-14030 Filter Sub-Assy, Fuel Suction Tube
77100 77001-25241 Tank Assy, Fuel
77100 90341-20004 Plug(For Fuel Tank)
77100 90430-20007 Gasket(For Fuel Tank)
77251 77205-25030 Tube Sub-Assy, Fuel Main
77251 77259-25040 Hose, Fuel, No.1 (For Main Tube, No.1)
77251 95333-04020 Hose, Lpg Injector
77251 95333-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77251 95337-06020 Hose, Differential Pressure Control
77261 77259-25060 Hose, Fuel, No.2 (For Fuel Tank To Canister Tube)
77276 77276-60020 Protector, Fuel Hose
77277 90447-11004 Hose, Fuel, No.1(For Return Tube, No.1)
77601 77601-27011 Band Sub-Assy, Fuel Tank, No.1
77611 77653-25010 Pin (For Fuel Tank Band)
77633 77501-25061 Bracket Sub-Assy, Fuel Tank
77633 77501-25062 Bracket Sub-Assy, Fuel Tank
77633 77501-25071 Stay, Fuel Tank
77651 77651-27110 Packing, Fuel Tank Bracket
77651 77651-27111 Cushion, Fuel Tank, No.1
77705 77705-26021 Bracket Sub-Assy, Charcoal Canister
77705 77705-26022 Bracket Sub-Assy, Charcoal Canister
77705 77705-26031 Bracket Sub-Assy, Charcoal Canister
77740 77704-60050 Canister Assy, Charcoal
77740 77740-26060 Canister Assy, Charcoal
77740 90445-14136 Hose, Fuel, No.1(For Charcoal Canister)
77740 90447-14046 Hose, Fuel, No.2(For Charcoal Canister)
77742 90413-04005 Way, 3, No.1 (For Front Drive Shift)
77750 90999-92004 Hose, Vacuum, No.1 (For Front Drive Shift)
77750 90999-92003 Hose, Breather (For Transfer Case)
77759 90910-05182 Hose, Fuel, No.3(For Charcoal Canister)
77759 90910-05180 Hose, Fuel, No.3(For Charcoal Canister)
9011908 90119-08A46 BOLT WWASHER
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9011908063 90119-08063 BOLT
9011908086 90119-08086 Bolt(For Transmission Input Damper Cover & Flywheel)
9011910531 90119-10531 BOLT WWASHER
9015940155 90159-40155 SCREW WWASHER
9017008204 90170-08204 Nut (For Propeller Shaft)
9017010028 90170-10028 New Genuine Part
9017908141 90179-08141 Nut (For Transmission Control Cable)
9017908141 90179-08038 Nut
9017908144 90179-08144 New Genuine Part
9017908144 90179-08233 NUT
9017910016 90179-10016 Nut(For Counter Gear Shaft)
9017910016 90179-10132 Nut
9041205003 90412-05003 New Genuine Part
9046110616 90461-10616 New Genuine Part
9046400295 90464-00295 New Genuine Part
9046400314 90464-00314 Clip(For Water By-Pass Hose)
9046713007 90467-13007 Clamp Or Clip(For Water By-Pass Hose No.2)
9046713007 96132-51300 Clip(For Ventilation Hose No.2)
9099992002 90999-92002 Air Hose (300 mm)
9161160820 91611-60820 Bolt(For Transaxle & Engine Setting)
9161160820 91611-G0820 Bolt
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140816 91651-40816 BOLT
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411041000 94110-41000 Nut(For Steering Damper)
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
9613230600 96132-30600 Clip(For Actuator Hose)
9613230600 96132-51100 Clip (For Hose)
