Search › Model › YY51

YY51

Toyota TOYOACE-DYNA · 1987 · 3,205 parts · 167 categories

3,205 items

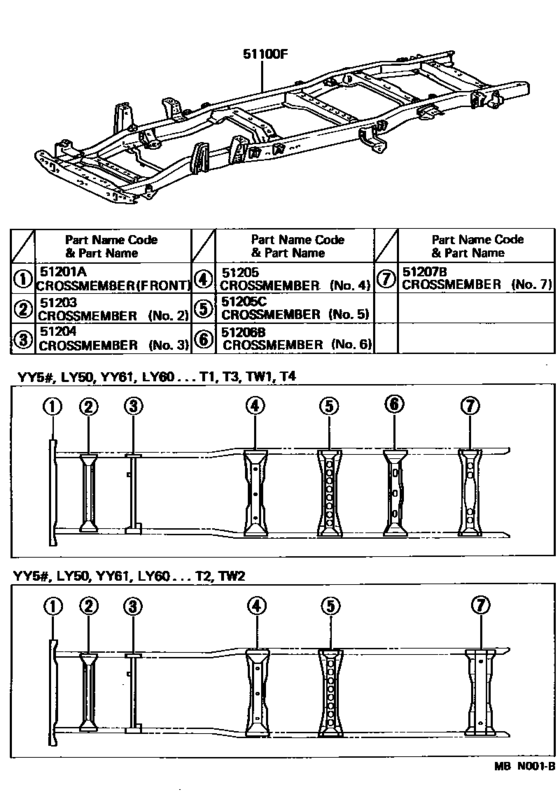

Frame ([08.1987 - ] (8708- )) 25

#	OEM	Part name
51100	51002-25661	Frame Sub-Assy
51201	51211-25090	Crossmember Sub-Assy, Frame, Front
51201	51211-25091	Crossmember Sub-Assy, Frame, Front
51203	51202-25130	Crossmember Sub-Assy, Frame, No.2
51204	51203-25111	Crossmember Sub-Assy, Frame, No.3
51205	51204-25061	Crossmember Sub-Assy, Frame, No.4
51205	51205-25051	Crossmember Sub-Assy, Frame, No.5
51206	51206-25101	Crossmember Sub-Assy, Frame, No.6
51206	51206-25111	Crossmember Sub-Assy, Frame, No.6
51207	51207-25050	Crossmember Sub-Assy, Frame, No.7
51401	51401-25150	Bracket Sub-Assy, Engine Front Mounting, Rh
51401	51401-25151	Bracket Sub-Assy, Engine Front Mounting, Rh
51701	51701-25050	Bracket Sub-Assy, Cab Mounting, No.1 Rh
51702	51702-25010	Bracket Sub-Assy, Cab Mounting, No.1 Lh
51703	51703-25100	Bracket Sub-Assy, Cab Mounting, No.2, Rh
51731	51705-25040	Bracket Sub-Assy, Cab Mounting, No.3
51731	51705-95400	Bracket Sub-Assy, Cab Rear Mounting, Rh
51732	51706-25020	Bracket Sub-Assy, Cab Mounting, No.3
51732	51706-95400	Bracket Sub-Assy, Cab Rear Mounting, Lh
51741	51741-25040	Bracket, Rear Body Mounting, No.1
51744	51744-25020	Bracket, Rear Body Mounting, No.4
9020110344	90201-10344	Washer, Plate(For Cylinder Head Set)
9111271025	91112-71025	Bolt(For Strut Bar Setting)
9161961230	91619-61230	BOLT
9411051000	94110-51000	Nut(For Steering Center Arm)

OEM	Part name	Category
51002-25661	Frame Sub-Assy	Frame ([08.1987 - ] (8708- ))
51202-25130	Crossmember Sub-Assy, Frame, No.2	Frame ([08.1987 - ] (8708- ))
51203-25111	Crossmember Sub-Assy, Frame, No.3	Frame ([08.1987 - ] (8708- ))
51204-25061	Crossmember Sub-Assy, Frame, No.4	Frame ([08.1987 - ] (8708- ))
51205-25051	Crossmember Sub-Assy, Frame, No.5	Frame ([08.1987 - ] (8708- ))
51206-25101	Crossmember Sub-Assy, Frame, No.6	Frame ([08.1987 - ] (8708- ))
51206-25111	Crossmember Sub-Assy, Frame, No.6	Frame ([08.1987 - ] (8708- ))
51207-25050	Crossmember Sub-Assy, Frame, No.7	Frame ([08.1987 - ] (8708- ))
51211-25090	Crossmember Sub-Assy, Frame, Front	Frame ([08.1987 - ] (8708- ))
51211-25091	Crossmember Sub-Assy, Frame, Front	Frame ([08.1987 - ] (8708- ))
51401-25150	Bracket Sub-Assy, Engine Front Mounting, Rh	Frame ([08.1987 - ] (8708- ))
51401-25151	Bracket Sub-Assy, Engine Front Mounting, Rh	Frame ([08.1987 - ] (8708- ))
51701-25050	Bracket Sub-Assy, Cab Mounting, No.1 Rh	Frame ([08.1987 - ] (8708- ))
51702-25010	Bracket Sub-Assy, Cab Mounting, No.1 Lh	Frame ([08.1987 - ] (8708- ))
51703-25100	Bracket Sub-Assy, Cab Mounting, No.2, Rh	Frame ([08.1987 - ] (8708- ))
51705-25040	Bracket Sub-Assy, Cab Mounting, No.3	Frame ([08.1987 - ] (8708- ))
51705-95400	Bracket Sub-Assy, Cab Rear Mounting, Rh	Frame ([08.1987 - ] (8708- ))
51706-25020	Bracket Sub-Assy, Cab Mounting, No.3	Frame ([08.1987 - ] (8708- ))
51706-95400	Bracket Sub-Assy, Cab Rear Mounting, Lh	Frame ([08.1987 - ] (8708- ))
51741-25040	Bracket, Rear Body Mounting, No.1	Frame ([08.1987 - ] (8708- ))
51744-25020	Bracket, Rear Body Mounting, No.4	Frame ([08.1987 - ] (8708- ))
90201-10344	Washer, Plate(For Cylinder Head Set)	Frame ([08.1987 - ] (8708- ))
91112-71025	Bolt(For Strut Bar Setting)	Frame ([08.1987 - ] (8708- ))
91619-61230	BOLT	Frame ([08.1987 - ] (8708- ))
94110-51000	Nut(For Steering Center Arm)	Frame ([08.1987 - ] (8708- ))
