YY101

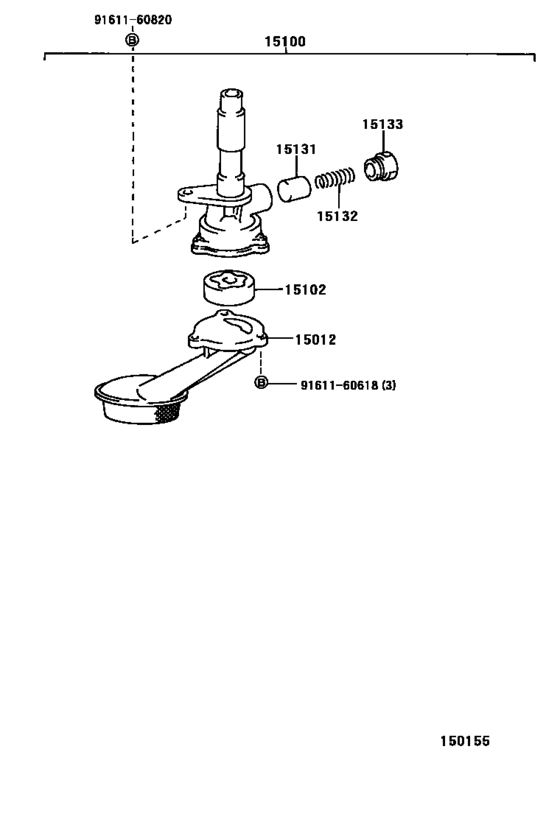

Engine Oil Pump ([10.1996 - ] (9610- )3Y..YY101) 9
| # | OEM | Part name |
|---|---|---|
| 15012 | 15012-71010 | Cover Sub-Assy, Oil Pump |
| 15100 | 15100-71010 | Pump Assy, Oil |
| 15102 | 15102-71010 | Rotor Set, Oil Pump |
| 15131 | 15131-24010 | Valve, Oil Pump Relief |
| 15132 | 15132-40010 | Spring, Oil Pump Relief Valve |
| 15133 | 15133-24010 | Plug, Oil Pump Relief Valve |
| 9161160618 | 91611-60618 | Bolt(For Oil Receiver Pipe) |
| 9161160820 | 91611-60820 | Bolt(For Transaxle & Engine Setting) |
| 9161160820 | 91611-G0820 | Bolt |
| OEM | Part name | Category |
|---|---|---|
| 15012-71010 | Cover Sub-Assy, Oil Pump | Engine Oil Pump ([10.1996 - ] (9610- )3Y..YY101) |
| 15100-71010 | Pump Assy, Oil | Engine Oil Pump ([10.1996 - ] (9610- )3Y..YY101) |
| 15102-71010 | Rotor Set, Oil Pump | Engine Oil Pump ([10.1996 - ] (9610- )3Y..YY101) |
| 15131-24010 | Valve, Oil Pump Relief | Engine Oil Pump ([10.1996 - ] (9610- )3Y..YY101) |
| 15132-40010 | Spring, Oil Pump Relief Valve | Engine Oil Pump ([10.1996 - ] (9610- )3Y..YY101) |
| 15133-24010 | Plug, Oil Pump Relief Valve | Engine Oil Pump ([10.1996 - ] (9610- )3Y..YY101) |
| 91611-60618 | Bolt(For Oil Receiver Pipe) | Engine Oil Pump ([10.1996 - ] (9610- )3Y..YY101) |
| 91611-60820 | Bolt(For Transaxle & Engine Setting) | Engine Oil Pump ([10.1996 - ] (9610- )3Y..YY101) |
| 91611-G0820 | Bolt | Engine Oil Pump ([10.1996 - ] (9610- )3Y..YY101) |
