Search › Model › YY100

YY100

Toyota DYNA-100 · 1995 · 2,781 parts · 163 categories

2,781 items

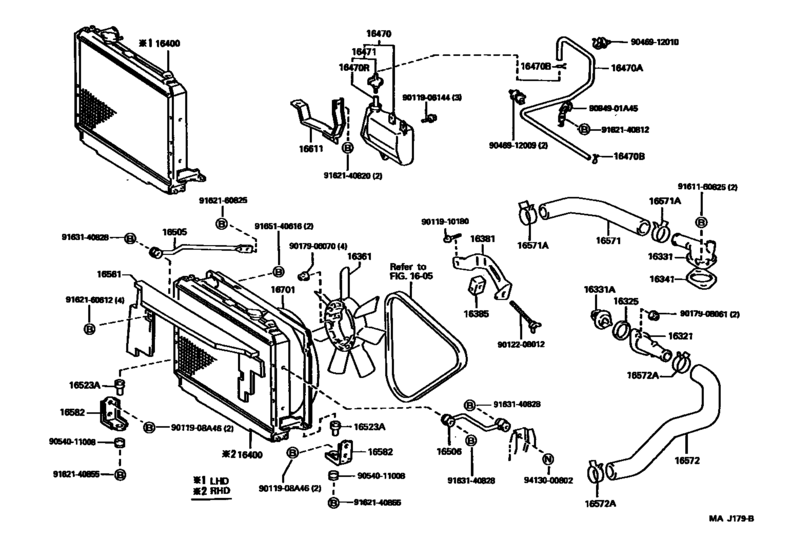

Radiator & Water Outlet ([05.1995 - ] (9505- )2Y) 70

#	OEM	Part name
16321	16321-71010	Inlet, Water
16325	16325-63011	Gasket, Water Inlet Housing, No.1
16331	16331-71010	Outlet, Water
16331	90916-03046	Thermostat
16341	16341-71011	Gasket, Water Outlet
16341	16341-73010	Gasket, Water Outlet
16361	16361-38010	Fan
16381	16381-73011	Bar, Fan Belt Adjusting
16385	16385-71010	Slider, Fan Belt Adjusting
16400	16400-73460	Radiator Assy
16400	16400-73461	Radiator Assy
16400	16417-15210	Plug, Radiator Drain Cock
16400	16418-15520	Packing(For Radiator Drain Cock)
16401	16401-54750	Radiator Cap
16401	16401-71010	Cap Sub-Assy(For Water Outlet)
16403	16403-73460	Core Sub-Assy, Radiator
16403	16403-73461	Core Sub-Assy, Radiator
16441	16441-73540	Tank, Radiator, Upper
16441	16441-75130	Tank, Radiator, Upper
16442	16442-58420	Ring, O(For Radiator Upper Tank)
16443	16443-58420	Plate, Radiator Tank, Lock, Upper
16453	16453-73460	Plate, Radiator Side
16454	16454-73460	Plate, Radiator Side
16455	16455-67020	Bolt, Radiator Side Support Plate
16461	16461-73540	Tank, Radiator, Lower
16461	16461-75130	Tank, Radiator, Lower
16470	16470-54280	Tank Assy, Radiator Reserve
16470	16567-58010	Hose Or Pipe(For Radiator Reserve Tank)
16470	90467-11085	Clamp Or Clip(For Radiator Breather Hose)
16470	90445-12078	Hose(For Radiator Breather)
16471	16405-54250	Cap Sub-Assy, Reserve Tank
16505	16505-54020	Support Sub-Assy, Radiator, Rh
16506	16506-54010	Support Sub-Assy, Radiator, Lh
16523	53210-36010	Cushion, Radiator Support
16561	16561-71010	Seal, Radiator To Support, No.1
16571	16571-73120	Hose, Radiator, Inlet
16571	90467-37001	Clip(For Water Inlet Hose)
16571	90467-37003	Clamp Or Clip, Hose(For Radiator Inlet)
16572	16572-73100	Hose, Radiator, Outlet
16572	90467-37002	Clip(For Water Inlet Hose)
16572	90467-37005	Clip(For Water Inlet Hose)
16582	16582-54030	Bracket, Radiator, No.1
16611	16611-54130	Bracket, Radiator Reserve Tank
16701	16711-73120	Shroud Sub-Assy, Fan
9011908	90119-08A46	BOLT WWASHER
9094901	90949-01A45	New Genuine Part
9011906144	90119-06144	Bolt, Hexagon (For Shift Lever Plate)
9011910180	90119-10180	Bolt (For Transfer Extension Rear Housing)
9012208012	90122-08012	BOLT
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9017908061	90179-08061	Nut (For Connecting Rod Swivel)
9046912009	90469-12009	Clamp Or Clip(For Radiator Reserve Tank Hose)
9046912010	90469-12010	Clamp Or Clip(For Radiator Reserve Tank Hose No.3)
9054011008	90540-11008	Insulator, Radiator Mounting
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9162140812	91621-40812	BOLT
9162140820	91621-40820	Bolt
9162140855	91621-40855	New Genuine Part
9162160612	91621-60612	BOLTWWASHER
9162160612	91621-J0612	BOLT W-WASHER
9162160825	91621-60825	BOLT
9162160825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9163140828	91631-40828	New Genuine Part
9165140616	91651-40616	BOLT
9165140616	91621-60614	Bolt(For Transaxle & Engine Setting)
9165140616	90080-11395	New Genuine Part
9413000802	94130-00802	Nut, No.1 (For Center Support Bearing)
9413000802	90170-A0001	New Genuine Part

OEM	Part name	Category
16321-71010	Inlet, Water	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16325-63011	Gasket, Water Inlet Housing, No.1	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16331-71010	Outlet, Water	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16341-71011	Gasket, Water Outlet	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16341-73010	Gasket, Water Outlet	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16361-38010	Fan	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16381-73011	Bar, Fan Belt Adjusting	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16385-71010	Slider, Fan Belt Adjusting	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16400-73460	Radiator Assy	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16400-73461	Radiator Assy	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16401-54750	Radiator Cap	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16401-71010	Cap Sub-Assy(For Water Outlet)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16403-73460	Core Sub-Assy, Radiator	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16403-73461	Core Sub-Assy, Radiator	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16405-54250	Cap Sub-Assy, Reserve Tank	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16417-15210	Plug, Radiator Drain Cock	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16418-15520	Packing(For Radiator Drain Cock)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16441-73540	Tank, Radiator, Upper	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16441-75130	Tank, Radiator, Upper	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16442-58420	Ring, O(For Radiator Upper Tank)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16443-58420	Plate, Radiator Tank, Lock, Upper	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16453-73460	Plate, Radiator Side	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16454-73460	Plate, Radiator Side	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16455-67020	Bolt, Radiator Side Support Plate	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16461-73540	Tank, Radiator, Lower	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16461-75130	Tank, Radiator, Lower	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16470-54280	Tank Assy, Radiator Reserve	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16505-54020	Support Sub-Assy, Radiator, Rh	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16506-54010	Support Sub-Assy, Radiator, Lh	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16561-71010	Seal, Radiator To Support, No.1	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16567-58010	Hose Or Pipe(For Radiator Reserve Tank)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16571-73120	Hose, Radiator, Inlet	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16572-73100	Hose, Radiator, Outlet	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16582-54030	Bracket, Radiator, No.1	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16611-54130	Bracket, Radiator Reserve Tank	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
16711-73120	Shroud Sub-Assy, Fan	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
53210-36010	Cushion, Radiator Support	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90080-11395	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90119-06144	Bolt, Hexagon (For Shift Lever Plate)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90119-08A46	BOLT WWASHER	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90119-10180	Bolt (For Transfer Extension Rear Housing)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90122-08012	BOLT	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90170-A0001	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90179-08061	Nut (For Connecting Rod Swivel)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90445-12078	Hose(For Radiator Breather)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90467-11085	Clamp Or Clip(For Radiator Breather Hose)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90467-37001	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90467-37002	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90467-37003	Clamp Or Clip, Hose(For Radiator Inlet)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90467-37005	Clip(For Water Inlet Hose)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90469-12009	Clamp Or Clip(For Radiator Reserve Tank Hose)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90469-12010	Clamp Or Clip(For Radiator Reserve Tank Hose No.3)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90540-11008	Insulator, Radiator Mounting	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90916-03046	Thermostat	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
90949-01A45	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91621-40812	BOLT	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91621-40820	Bolt	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91621-40855	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91621-60612	BOLTWWASHER	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91621-60614	Bolt(For Transaxle & Engine Setting)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91621-60825	BOLT	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91621-J0612	BOLT W-WASHER	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91631-40828	New Genuine Part	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91651-40616	BOLT	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
94130-00802	Nut, No.1 (For Center Support Bearing)	Radiator & Water Outlet ([05.1995 - ] (9505- )2Y)
