Search › Model › YY100

YY100

Toyota DYNA-100 · 1995 · 2,781 parts · 163 categories

2,781 items

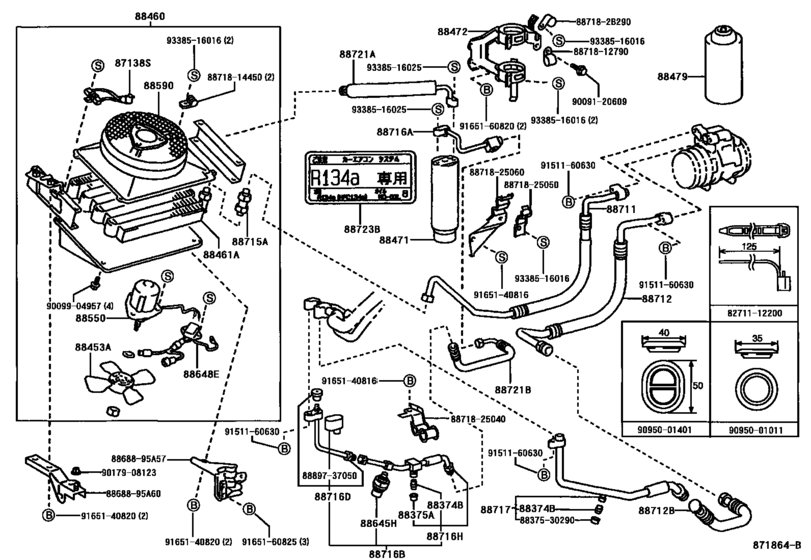

Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD) 55

#	OEM	Part name
87138	87138-37020	Resistor, Blower
88374	88374-30010	Valve, Service, No.1
88375	88375-30280	Cap, Service Valve (For Cooler Pipe)
88460	88460-25090	Condenser Assy, Cooler
88471	88471-20050	Receiver & Dryer Assy, Cooler
88471	88471-34010	Receiver & Dryer Assy, Cooler
88472	88472-25060	Bracket, Receiver Tank, No.1
88479	90986-02007	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479	90986-02008	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88590	88590-25020	Blower Assy, W/shroud
88645	88645-60030	Switch, Pressure No.1
88648	88648-37090	Wiring, Cooler
88711	88711-25150	Hose, Cooler Refrigerant Discharge, No.1
88712	88712-25210	Hose, Cooler Refrigerant Suction, No.1
88712	88712-25190	Hose, Cooler Refrigerant Suction
88715	88715-26190	Pipe, Cooler Refrigerant Discharge, A
88716	88716-25160	Pipe, Cooler Refrigerant Liquid, A
88716	88716-25150	Pipe, Cooler Refrigerant Liquid, B
88716	88716-37300	Pipe, Cooler Refrigerant Liquid, D
88716	88716-37290	Pipe, Cooler Refrigerant Liquid, H
88717	88717-25170	Pipe, Cooler Refrigerant Suction, No.1
88721	88721-25090	Hose, Liquid, A
88721	88721-25070	Hose, Liquid, A
88723	88723-20040	Label, Cooler Service Caution
887182	88718-2B290	Clamp(For Cooler Refrigerant Pipe), No.4
8868895	88688-95A57	Bracket, Cooler Condenser, No.2
8868895	88688-95A60	Bracket, Cooler Condenser, No.1
8271112200	82711-12200	Clamp (For Fuel Lid Lock Control Cable)
8837530290	88375-30290	Cap, Service Valve (For Cooler Pipe)
8871812790	88718-12790	Pipe, Cooler Refrigerant Suction, No.2
8871814450	88718-14450	Clamp(For Cooler Refrigerant Pipe), No.1
8871825040	88718-25040	Pipe, Cooler Refrigerant Suction, No.2
8871825050	88718-25050	Pipe, Cooler Refrigerant Suction, No.2
8871825060	88718-25060	Pipe, Cooler Refrigerant Suction, No.2
8889737050	88897-37050	Valve, Cooler Magnet
9009120609	90091-20609	BOLT
9009904957	90099-04957	New Genuine Part
9009914119	90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)
9009914119	90099-14119-TH	O RING
9009914120	90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)
9009914121	90099-14121	O-Ring, Cooler Evaporator No.1(Suction)
9009914122	90099-14122	O-RING
9009914125	90099-14125	RINGO
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9095001011	90950-01011	Grommet(For Upper Back Panel)
9095001401	90950-01401	New Genuine Part
9151160630	91511-60630	BOLT
9165140816	91651-40816	BOLT
9165140820	91651-40820	Bolt
9165160820	91651-60820	Bolt, Radiator Side Support Plate
9165160820	91651-B0820	Bolt, Radiator Side Support Plate
9165160825	91651-60825	Bolt, Hexagon(For Steering Column Bracket)
9165160825	91651-B0825	Bolt, Hexagon(For Steering Column Bracket)
9338516016	93385-16016	New Genuine Part
9338516025	93385-16025	New Genuine Part

OEM	Part name	Category
82711-12200	Clamp (For Fuel Lid Lock Control Cable)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
87138-37020	Resistor, Blower	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88374-30010	Valve, Service, No.1	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88375-30280	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88375-30290	Cap, Service Valve (For Cooler Pipe)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88460-25090	Condenser Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88471-20050	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88471-34010	Receiver & Dryer Assy, Cooler	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88472-25060	Bracket, Receiver Tank, No.1	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88590-25020	Blower Assy, W/shroud	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88645-60030	Switch, Pressure No.1	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88648-37090	Wiring, Cooler	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88688-95A57	Bracket, Cooler Condenser, No.2	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88688-95A60	Bracket, Cooler Condenser, No.1	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88711-25150	Hose, Cooler Refrigerant Discharge, No.1	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88712-25190	Hose, Cooler Refrigerant Suction	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88712-25210	Hose, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88715-26190	Pipe, Cooler Refrigerant Discharge, A	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88716-25150	Pipe, Cooler Refrigerant Liquid, B	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88716-25160	Pipe, Cooler Refrigerant Liquid, A	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88716-37290	Pipe, Cooler Refrigerant Liquid, H	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88716-37300	Pipe, Cooler Refrigerant Liquid, D	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88717-25170	Pipe, Cooler Refrigerant Suction, No.1	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88718-12790	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88718-14450	Clamp(For Cooler Refrigerant Pipe), No.1	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88718-25040	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88718-25050	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88718-25060	Pipe, Cooler Refrigerant Suction, No.2	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88718-2B290	Clamp(For Cooler Refrigerant Pipe), No.4	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88721-25070	Hose, Liquid, A	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88721-25090	Hose, Liquid, A	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88723-20040	Label, Cooler Service Caution	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
88897-37050	Valve, Cooler Magnet	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90091-20609	BOLT	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90099-04957	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90099-14119	Ring, O(For Cooler Refrigerant Liquid Pipe)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90099-14119-TH	O RING	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90099-14120	O-Ring, Cooler Evaporator No.1(Discharge)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90099-14121	O-Ring, Cooler Evaporator No.1(Suction)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90099-14122	O-RING	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90099-14125	RINGO	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90179-08123	Nut (For Front Wiper Arm Setting)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90950-01011	Grommet(For Upper Back Panel)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90950-01401	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90986-02007	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
90986-02008	Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
91511-60630	BOLT	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
91651-40816	BOLT	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
91651-40820	Bolt	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
91651-60820	Bolt, Radiator Side Support Plate	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
91651-60825	Bolt, Hexagon(For Steering Column Bracket)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
91651-B0820	Bolt, Radiator Side Support Plate	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
91651-B0825	Bolt, Hexagon(For Steering Column Bracket)	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
93385-16016	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)
93385-16025	New Genuine Part	Heating & Air Conditioning - Cooler Piping ([10.1995 - ] (9510- )YY100 ; (9510- )LHD..EUR ; (9510- )LY100..RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 163
Collected: 2026-08-03
