YY100

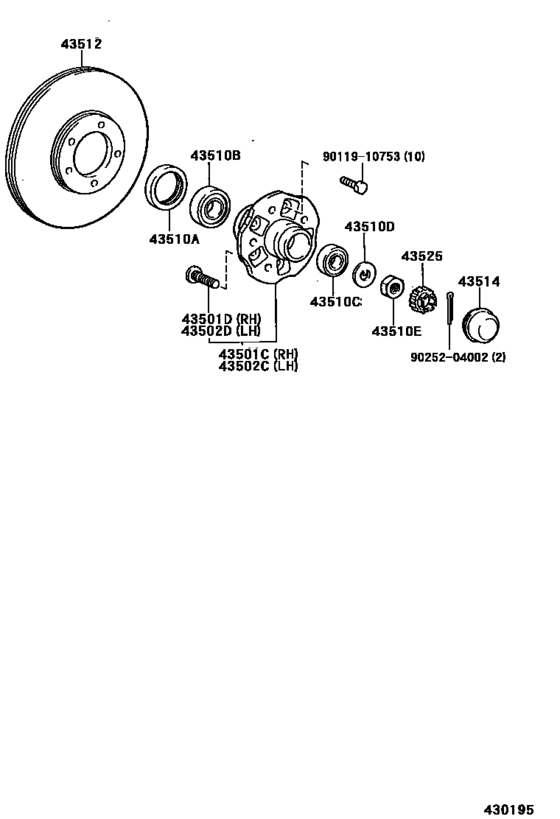

Front Axle Hub ([05.1995 - ] (9505- )) 13
| # | OEM | Part name |
|---|---|---|
| 43501 | 43502-26050 | Hub Sub-Assy, Front Axle |
| 43501 | 90942-02047 | Bolt, Hub |
| 43510 | 90311-50005 | Seal, Oil (For Front Axle Hub) |
| 43510 | 90368-34001 | Bearing |
| 43510 | 90368-21001 | Bearing, Tapered Roller (For Front Axle Outer Bearing) |
| 43510 | 90214-20007 | Washer, Claw (For Front Axle Hub Rh) |
| 43510 | 90170-19185 | Nut (For Axle Shaft) |
| 43512 | 43512-26070 | Disc, Front |
| 43512 | 43512-35180 | Disc, Front |
| 43514 | 43514-35010 | Cap, Front Hub Grease |
| 43525 | 43525-22010 | Cap, Front Wheel Adjusting Lock |
| 9011910753 | 90119-10753 | New Genuine Part |
| 9025204002 | 90252-04002 | PIN |
| OEM | Part name | Category |
|---|---|---|
| 43502-26050 | Hub Sub-Assy, Front Axle | Front Axle Hub ([05.1995 - ] (9505- )) |
| 43512-26070 | Disc, Front | Front Axle Hub ([05.1995 - ] (9505- )) |
| 43512-35180 | Disc, Front | Front Axle Hub ([05.1995 - ] (9505- )) |
| 43514-35010 | Cap, Front Hub Grease | Front Axle Hub ([05.1995 - ] (9505- )) |
| 43525-22010 | Cap, Front Wheel Adjusting Lock | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90119-10753 | New Genuine Part | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90170-19185 | Nut (For Axle Shaft) | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90214-20007 | Washer, Claw (For Front Axle Hub Rh) | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90252-04002 | PIN | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90311-50005 | Seal, Oil (For Front Axle Hub) | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90368-21001 | Bearing, Tapered Roller (For Front Axle Outer Bearing) | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90368-34001 | Bearing | Front Axle Hub ([05.1995 - ] (9505- )) |
| 90942-02047 | Bolt, Hub | Front Axle Hub ([05.1995 - ] (9505- )) |
