Search › Model › YY100

YY100

Toyota DYNA-100 · 1995 · 2,781 parts · 163 categories

2,781 items

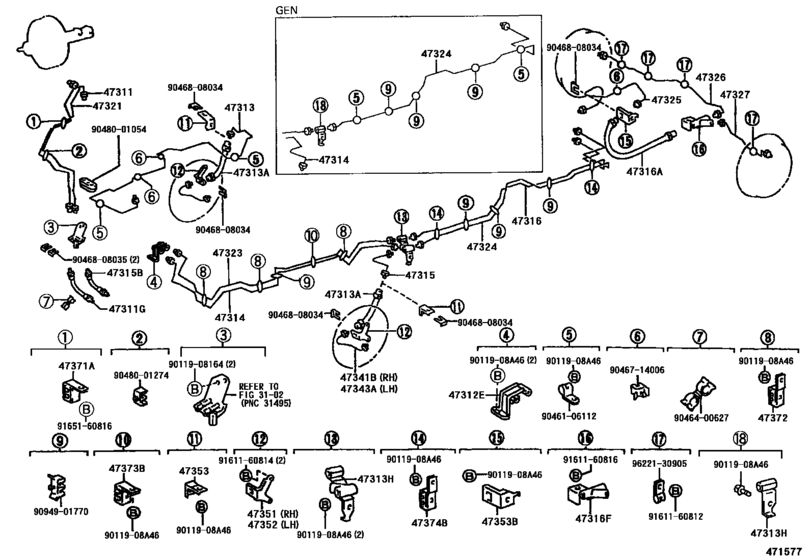

Brake Tube & Clamp ([05.1999 - ] (9905- )RHD) 57

#	OEM	Part name
47311	47311-25270	Tube, Front Brake, No.1
47311	47311-25300	Tube, Front Brake, No.1
47311	47311-25381	Tube, Front Brake, No.1
47311	90947-02B32	Hose, Flexible(For Brake Tube)
47311	90947-02B33	Hose, Flexible(For Brake Tube)
47312	90413-10187	Way, No.1(For Front Brake Tube)
47312	90904-13058	Way, No.1(For Front Brake Tube)
47313	47313-25130	Tube, Front Brake, No.3
47313	47313-25161	Tube, Front Brake, No.3
47313	90947-02477	Hose, Flexible, No.1(For Front)
47313	90947-02E77	Hose, Flexible, No.1(For Front)
47313	90904-13023	Way, No.3(For Front Brake Tube)
47314	47314-25160	Tube, Front Brake, No.4
47314	47314-25201	Tube, Front Brake, No.4
47315	47315-25100	Tube, Front Brake, No.5
47316	47316-25170	Tube, Front Brake, No.6
47316	90947-02555	Hose, Flexible(For Rear Brake Tube)
47316	90947-02F55	Hose, Flexible(For Rear Brake Tube)
47316	90413-10216	Way, 3(For Rear Brake Tube)
47321	47321-25130	Tube, Rear Brake, No.1
47321	47321-25160	Tube, Rear Brake, No.1
47321	47321-25241	Tube, Rear Brake, No.1
47323	47323-25130	Tube, Front Brake, No.6
47323	47323-25161	Tube, Front Brake, No.6
47324	47324-25290	Tube, Rear Brake, No.2
47325	47325-26281	Tube, Rear Brake, No.5
47326	47326-25250	Tube, Rear Brake, No.6
47327	47327-25210	Tube, Rear Brake, No.7
47341	47341-26060	Tube, Wheel Cylinder, Front Rh No.1
47343	47343-26060	Tube, Wheel Cylinder, Front Lh No.1
47351	47351-26070	Bracket, Flexible Hose(For Front Rh)
47352	47352-26070	Bracket, Flexible Hose(For Front Lh)
47353	47353-26030	Bracket, Flexible Hose, No.1
47353	47353-26050	Bracket, Flexible Hose, No.3
47371	47373-25010	Clamp, Brake Tube, No.1
47372	47372-25010	Clamp, Brake Tube, No.1
47373	47373-26010	Clamp, Brake Tube, No.2
9011908	90119-08A46	BOLT WWASHER
9011908164	90119-08164	Bolt
9011908164	90119-08802	BOLT WWASHER
9046106112	90461-06112	Clamp, Brake Tube, No.6
9046400627	90464-00627	Clamp, Throttle Cable, No.6
9046714006	90467-14006	New Genuine Part
9046808034	90468-08034	CLIP
9046808035	90468-08035	CLIP
9046808035	90468-A0007	New Genuine Part
9048001054	90480-01054	Grommet(For Brake Tube)
9048001274	90480-01274	Grommet, No.2(For Front Brake Tube)
9094901770	90949-01770	New Genuine Part
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9161160814	91611-60814	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9165160816	91651-60816	BOLT
9165160816	90080-11396	Bolt
9622130905	96221-30905	CLAMP

OEM	Part name	Category
47311-25270	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47311-25300	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47311-25381	Tube, Front Brake, No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47313-25130	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47313-25161	Tube, Front Brake, No.3	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47314-25160	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47314-25201	Tube, Front Brake, No.4	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47315-25100	Tube, Front Brake, No.5	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47316-25170	Tube, Front Brake, No.6	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47321-25130	Tube, Rear Brake, No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47321-25160	Tube, Rear Brake, No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47321-25241	Tube, Rear Brake, No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47323-25130	Tube, Front Brake, No.6	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47323-25161	Tube, Front Brake, No.6	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47324-25290	Tube, Rear Brake, No.2	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47325-26281	Tube, Rear Brake, No.5	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47326-25250	Tube, Rear Brake, No.6	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47327-25210	Tube, Rear Brake, No.7	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47341-26060	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47343-26060	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47351-26070	Bracket, Flexible Hose(For Front Rh)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47352-26070	Bracket, Flexible Hose(For Front Lh)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47353-26030	Bracket, Flexible Hose, No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47353-26050	Bracket, Flexible Hose, No.3	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47372-25010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47373-25010	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
47373-26010	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90080-11396	Bolt	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90119-08164	Bolt	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90119-08802	BOLT WWASHER	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90119-08A46	BOLT WWASHER	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90413-10187	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90413-10216	Way, 3(For Rear Brake Tube)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90461-06112	Clamp, Brake Tube, No.6	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90464-00627	Clamp, Throttle Cable, No.6	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90467-14006	New Genuine Part	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90468-08034	CLIP	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90468-08035	CLIP	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90468-A0007	New Genuine Part	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90480-01054	Grommet(For Brake Tube)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90480-01274	Grommet, No.2(For Front Brake Tube)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90904-13023	Way, No.3(For Front Brake Tube)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90904-13058	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90947-02477	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90947-02555	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90947-02B32	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90947-02B33	Hose, Flexible(For Brake Tube)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90947-02E77	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90947-02F55	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
90949-01770	New Genuine Part	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
91611-60814	Bolt	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
91611-B0812	Bolt	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
91611-B0816	Bolt	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
91651-60816	BOLT	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)
96221-30905	CLAMP	Brake Tube & Clamp ([05.1999 - ] (9905- )RHD)

Source: Public OEM parts-catalog data
Variants: 2 / 4
Category: 163
Collected: 2026-08-03
