YXS10

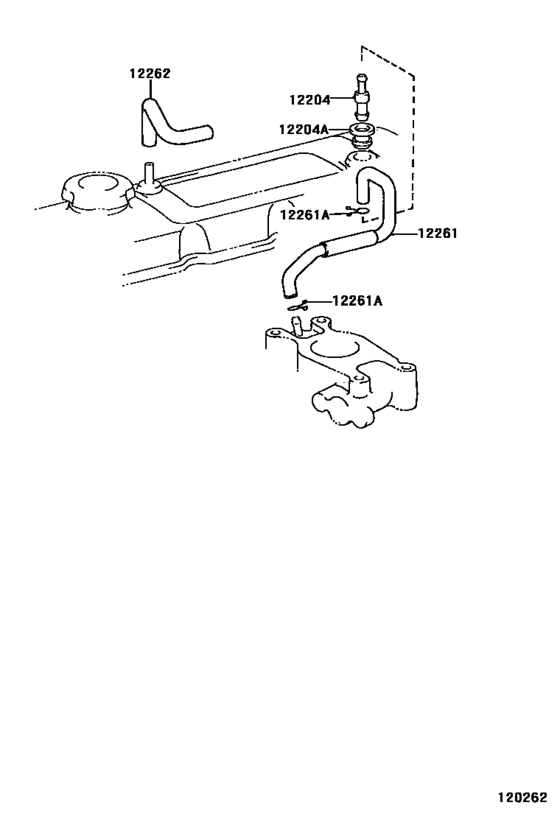

Ventilation Hose ([12.1995 - ] (9512- )3YPE) 5
| # | OEM | Part name |
|---|---|---|
| 12204 | 12204-15022 | Valve Sub-Assy, Ventilation |
| 12204 | 90480-18008 | Grommet(For Ventilation System) |
| 12261 | 12261-73040 | Hose, Ventilation |
| 12261 | 90467-15006 | Clip Or Clamp(For Ventilation Hose) |
| 12262 | 12262-73050 | Hose, Ventilation, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 12204-15022 | Valve Sub-Assy, Ventilation | Ventilation Hose ([12.1995 - ] (9512- )3YPE) |
| 12261-73040 | Hose, Ventilation | Ventilation Hose ([12.1995 - ] (9512- )3YPE) |
| 12262-73050 | Hose, Ventilation, No.2 | Ventilation Hose ([12.1995 - ] (9512- )3YPE) |
| 90467-15006 | Clip Or Clamp(For Ventilation Hose) | Ventilation Hose ([12.1995 - ] (9512- )3YPE) |
| 90480-18008 | Grommet(For Ventilation System) | Ventilation Hose ([12.1995 - ] (9512- )3YPE) |
