Search › Model › YXS10
YXS10

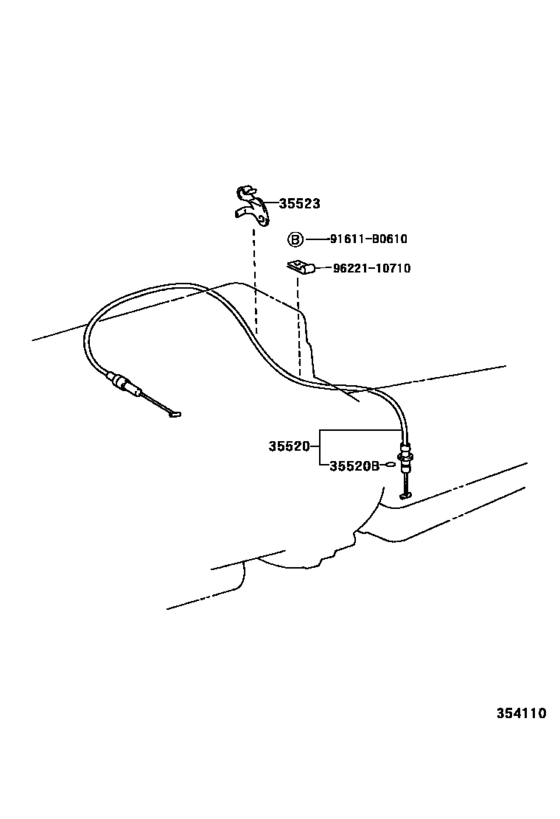

Throttle Link & Valve Lever (Atm) ([12.1995 - ] A43D (9512- )YXS1#..ATM) 5
| # | OEM | Part name |
|---|---|---|
| 35520 | 35520-30120 | Cable Assy, Throttle |
| 35520 | 90301-09012 | Ring, O (For Automatic Transmission Case Plug) |
| 35523 | 35523-30070 | Clamp, Throttle Cable |
| 91611 | 91611-B0610 | Bolt (For Transfer Oil Receiver No.1) |
| 9622110710 | 96221-10710 | Clamp, Throttle Cable, No.2 |
| OEM | Part name | Category |
|---|---|---|
| 35520-30120 | Cable Assy, Throttle | Throttle Link & Valve Lever (Atm) ([12.1995 - ] A43D (9512- )YXS1#..ATM) |
| 35523-30070 | Clamp, Throttle Cable | Throttle Link & Valve Lever (Atm) ([12.1995 - ] A43D (9512- )YXS1#..ATM) |
| 90301-09012 | Ring, O (For Automatic Transmission Case Plug) | Throttle Link & Valve Lever (Atm) ([12.1995 - ] A43D (9512- )YXS1#..ATM) |
| 91611-B0610 | Bolt (For Transfer Oil Receiver No.1) | Throttle Link & Valve Lever (Atm) ([12.1995 - ] A43D (9512- )YXS1#..ATM) |
| 96221-10710 | Clamp, Throttle Cable, No.2 | Throttle Link & Valve Lever (Atm) ([12.1995 - ] A43D (9512- )YXS1#..ATM) |
