Search › Model › YXS10
YXS10

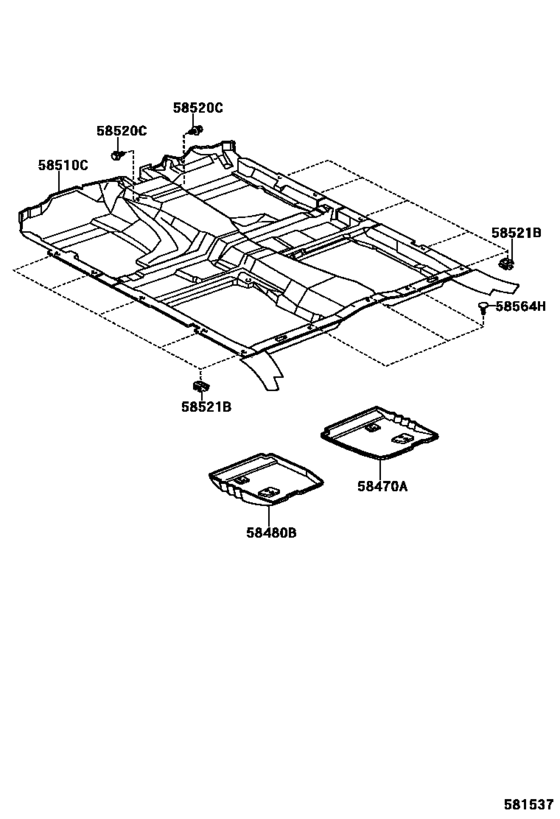

Mat & Carpet ([08.2001 - ] (0108- )SED) 11
| # | OEM | Part name |
|---|---|---|
| 58470 | 58470-43020 | Board Assy, Rear Floor, No.1 |
| 58470 | 58470-43021 | Board Assy, Rear Floor, No.1 |
| 58480 | 58480-43020 | Board Assy, Rear Floor, No.2 |
| 58480 | 58480-43021 | Board Assy, Rear Floor, No.2 |
| 58510 | 58510-43420-B0 | Carpet Assy, Front Floor, Front |
| 58510 | 58510-43440-B0 | Carpet Assy, Front Floor, Front |
| 58510 | 58510-43430-B0 | Carpet Assy, Front Floor, Front |
| 58510 | 58510-43490-B0 | Carpet Assy, Front Floor, Front |
| 58520 | 90467-08185 | Reinforcement, Front Spring Support, No.3 |
| 58521 | 58521-12120 | Hook, Floor Carpet |
| 58564 | 90467-11025 | Clip(For Front Floor Mat) |
| OEM | Part name | Category |
|---|---|---|
| 58470-43020 | Board Assy, Rear Floor, No.1 | Mat & Carpet ([08.2001 - ] (0108- )SED) |
| 58470-43021 | Board Assy, Rear Floor, No.1 | Mat & Carpet ([08.2001 - ] (0108- )SED) |
| 58480-43020 | Board Assy, Rear Floor, No.2 | Mat & Carpet ([08.2001 - ] (0108- )SED) |
| 58480-43021 | Board Assy, Rear Floor, No.2 | Mat & Carpet ([08.2001 - ] (0108- )SED) |
| 58510-43420-B0 | Carpet Assy, Front Floor, Front | Mat & Carpet ([08.2001 - ] (0108- )SED) |
| 58510-43430-B0 | Carpet Assy, Front Floor, Front | Mat & Carpet ([08.2001 - ] (0108- )SED) |
| 58510-43440-B0 | Carpet Assy, Front Floor, Front | Mat & Carpet ([08.2001 - ] (0108- )SED) |
| 58510-43490-B0 | Carpet Assy, Front Floor, Front | Mat & Carpet ([08.2001 - ] (0108- )SED) |
| 58521-12120 | Hook, Floor Carpet | Mat & Carpet ([08.2001 - ] (0108- )SED) |
| 90467-08185 | Reinforcement, Front Spring Support, No.3 | Mat & Carpet ([08.2001 - ] (0108- )SED) |
| 90467-11025 | Clip(For Front Floor Mat) | Mat & Carpet ([08.2001 - ] (0108- )SED) |
