Search › Model › YX72

YX72

Toyota CHASER · 1986 · 3,479 parts · 157 categories

3,479 items

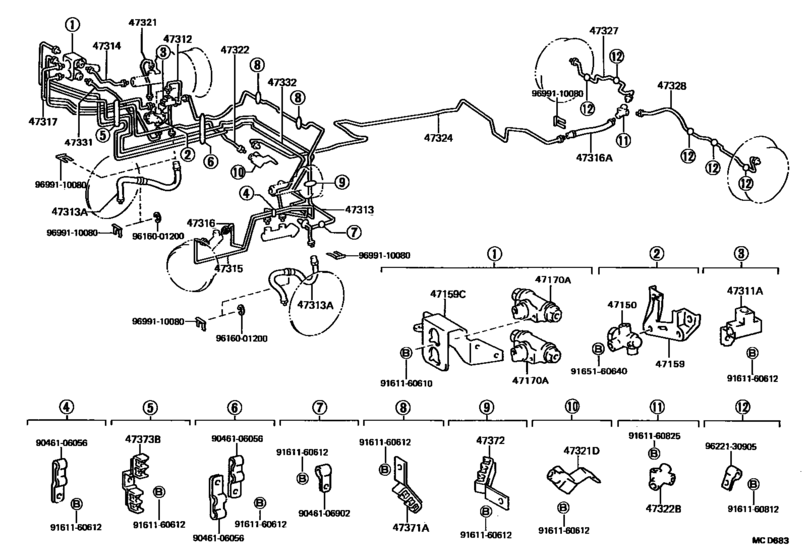

Brake Tube & Clamp ([08.1986 - ] (8608- )YX72) 41

#	OEM	Part name
47150	47150-12031	Valve Assy, Proportioning
47150	47150-22050	Valve Assy, Proportioning
47159	47159-14030	Bracket, Proportioning Valve
47159	47159-22130	Bracket, Change Valve
47170	47170-22050	Valve Assy, Brake Change
47311	90413-10177	Way(For Front Brake Tube)
47312	47312-22130	Tube, Front Brake, No.2
47313	47313-22270	Tube, Front Brake, No.3
47313	90947-02462	Hose, Flexible, No.1(For Front)
47314	47314-22130	Tube, Front Brake, No.4
47315	47315-22160	Tube, Front Brake, No.5
47316	47316-22210	Tube, Front Brake, No.6
47316	96940-32955	Hose, Flexible(For Rear Brake Tube)
47317	47317-22150	Tube, Front Brake, No.7
47321	47321-14090	Tube, Rear Brake, No.1
47321	90412-10119	Way, 2(For Rear Brake Tube)
47322	47322-22200	Tube, Rear Brake, No.2
47322	90413-10098	Way, No.2(For Rear Brake Tube)
47324	47324-22170	Tube, Rear Brake, No.4
47327	47327-22100	Tube, Rear Brake, No.7
47328	47328-22100	Tube, Rear Brake, No.8
47331	47331-22030	Tube, Rear Brake, No.10
47332	47332-22020	Tube, Rear Brake, No.11
47371	47371-22050	Clamp, Brake Tube, No.1
47372	47371-22040	Clamp, Brake Tube, No.2
47373	47371-22080	Clamp, Brake Tube, No.3
9046106056	90461-06056	New Genuine Part
9046106902	90461-06902	Clamp, Brake Tube, No.3
9161160610	91611-60610	Bolt (For Transfer Oil Receiver No.1)
9161160610	91611-B0610	Bolt (For Transfer Oil Receiver No.1)
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161160812	91611-60812	Bolt(For Drive Plate & Torque Converter Setting)
9161160812	91611-B0812	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9165160640	91651-60640	Bolt, Rear Body Mounting
9165160640	91651-B0640	Bolt, Rear Body Mounting
9616001200	96160-01200	Ring, E(For Clutch Release Cable)
9622130905	96221-30905	CLAMP
9699110080	96991-10080	CLIP

OEM	Part name	Category
47150-12031	Valve Assy, Proportioning	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47150-22050	Valve Assy, Proportioning	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47159-14030	Bracket, Proportioning Valve	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47159-22130	Bracket, Change Valve	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47170-22050	Valve Assy, Brake Change	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47312-22130	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47313-22270	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47314-22130	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47315-22160	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47316-22210	Tube, Front Brake, No.6	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47317-22150	Tube, Front Brake, No.7	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47321-14090	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47322-22200	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47324-22170	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47327-22100	Tube, Rear Brake, No.7	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47328-22100	Tube, Rear Brake, No.8	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47331-22030	Tube, Rear Brake, No.10	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47332-22020	Tube, Rear Brake, No.11	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47371-22040	Clamp, Brake Tube, No.2	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47371-22050	Clamp, Brake Tube, No.1	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
47371-22080	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
90412-10119	Way, 2(For Rear Brake Tube)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
90413-10098	Way, No.2(For Rear Brake Tube)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
90413-10177	Way(For Front Brake Tube)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
90461-06056	New Genuine Part	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
90461-06902	Clamp, Brake Tube, No.3	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
90947-02462	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
91611-60610	Bolt (For Transfer Oil Receiver No.1)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
91611-60812	Bolt(For Drive Plate & Torque Converter Setting)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
91611-B0610	Bolt (For Transfer Oil Receiver No.1)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
91611-B0812	Bolt	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
91611-G0612	Bolt	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
91651-60640	Bolt, Rear Body Mounting	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
91651-B0640	Bolt, Rear Body Mounting	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
96160-01200	Ring, E(For Clutch Release Cable)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
96221-30905	CLAMP	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
96940-32955	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
96991-10080	CLIP	Brake Tube & Clamp ([08.1986 - ] (8608- )YX72)
