Search › Model › YU85
YU85

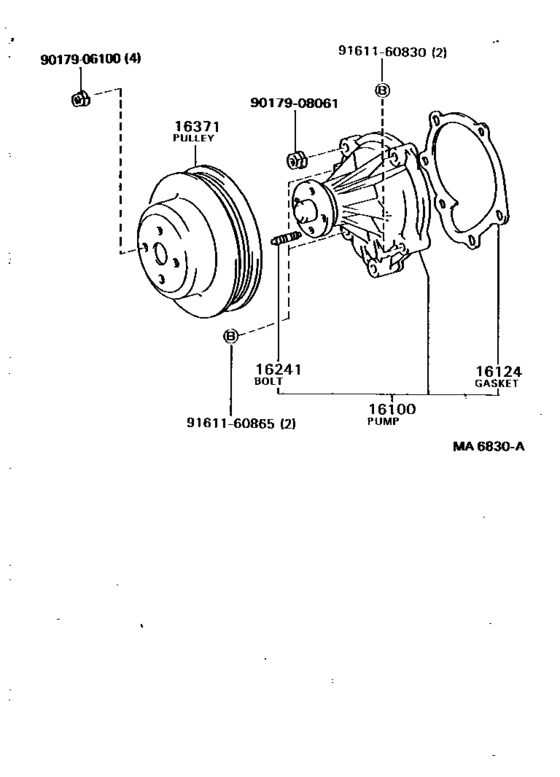

Water Pump ([08.1988 - ] (8808- )4Y) 11
| # | OEM | Part name |
|---|---|---|
| 16100 | 16100-79036 | Pump Assy, Engine Water |
| 16100 | 16100-79037 | Pump Assy, Engine Water |
| 16124 | 16124-71011 | Gasket, Water Pump Cover |
| 16241 | 16193-71010 | Bolt, Stud(For Water Pump Coupling) |
| 16371 | 16371-71010 | Pulley, Fan |
| 16371 | 16371-71021 | Pulley, Fan |
| 9017906100 | 90179-06100 | New Genuine Part |
| 9017906100 | 90179-06204 | NUT |
| 9017908061 | 90179-08061 | Nut (For Connecting Rod Swivel) |
| 9161160830 | 91611-60830 | Bolt(For Clutch Release Cylinder Setting) |
| 9161160865 | 91611-60865 | Bolt(For Rocker Support Set) |
| OEM | Part name | Category |
|---|---|---|
| 16100-79036 | Pump Assy, Engine Water | Water Pump ([08.1988 - ] (8808- )4Y) |
| 16100-79037 | Pump Assy, Engine Water | Water Pump ([08.1988 - ] (8808- )4Y) |
| 16124-71011 | Gasket, Water Pump Cover | Water Pump ([08.1988 - ] (8808- )4Y) |
| 16193-71010 | Bolt, Stud(For Water Pump Coupling) | Water Pump ([08.1988 - ] (8808- )4Y) |
| 16371-71010 | Pulley, Fan | Water Pump ([08.1988 - ] (8808- )4Y) |
| 16371-71021 | Pulley, Fan | Water Pump ([08.1988 - ] (8808- )4Y) |
| 90179-06100 | New Genuine Part | Water Pump ([08.1988 - ] (8808- )4Y) |
| 90179-06204 | NUT | Water Pump ([08.1988 - ] (8808- )4Y) |
| 90179-08061 | Nut (For Connecting Rod Swivel) | Water Pump ([08.1988 - ] (8808- )4Y) |
| 91611-60830 | Bolt(For Clutch Release Cylinder Setting) | Water Pump ([08.1988 - ] (8808- )4Y) |
| 91611-60865 | Bolt(For Rocker Support Set) | Water Pump ([08.1988 - ] (8808- )4Y) |
