YU85

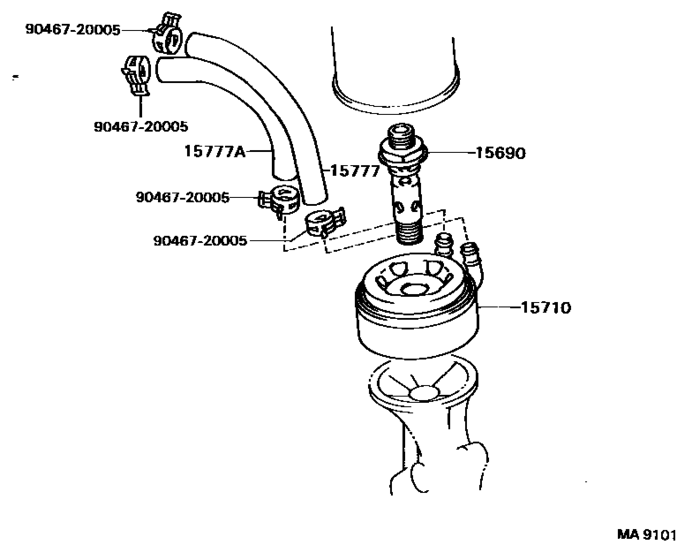

Engine Oil Cooler ([08.1988 - ] (8808- )4Y) 6
| # | OEM | Part name |
|---|---|---|
| 15690 | 15690-70010 | Valve Assy, Oil Cooler Relief |
| 15710 | 15710-73012 | Cooler Assy, Oil |
| 15777 | 15777-73030 | Hose, Oil Cooler |
| 15777 | 15778-73010 | Hose, Oil Cooler |
| 9046720005 | 90467-20005 | Clip(For Ventilation Hose No.2) |
| 9046720005 | 96134-41900 | Clip Or Clamp(For Ventilation Hose) |
| OEM | Part name | Category |
|---|---|---|
| 15690-70010 | Valve Assy, Oil Cooler Relief | Engine Oil Cooler ([08.1988 - ] (8808- )4Y) |
| 15710-73012 | Cooler Assy, Oil | Engine Oil Cooler ([08.1988 - ] (8808- )4Y) |
| 15777-73030 | Hose, Oil Cooler | Engine Oil Cooler ([08.1988 - ] (8808- )4Y) |
| 15778-73010 | Hose, Oil Cooler | Engine Oil Cooler ([08.1988 - ] (8808- )4Y) |
| 90467-20005 | Clip(For Ventilation Hose No.2) | Engine Oil Cooler ([08.1988 - ] (8808- )4Y) |
| 96134-41900 | Clip Or Clamp(For Ventilation Hose) | Engine Oil Cooler ([08.1988 - ] (8808- )4Y) |
