YU82

Toyota DYNA-200-TOYOACE-G25 · 1988 · 3,952 parts · 187 categories
YU82 ×

← Back to categories

3,952 items

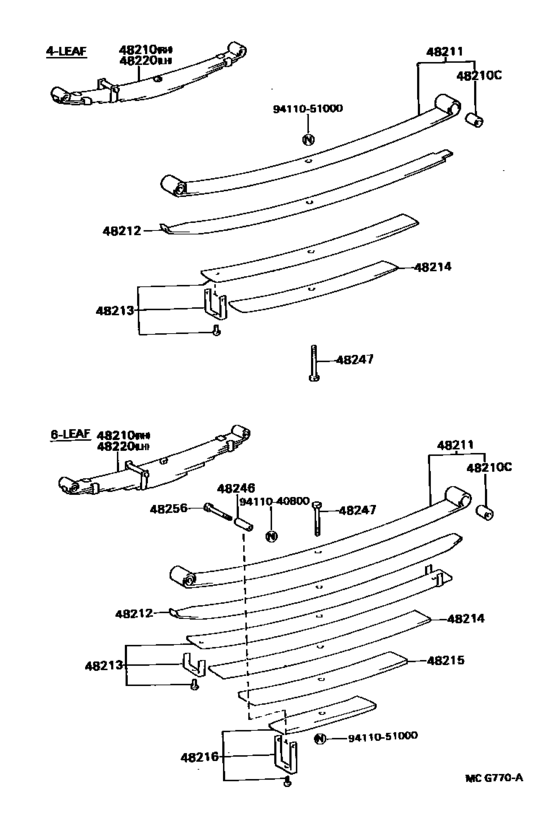

Rear Spring & Shock Absorber ([08.1988 - ] (8808- )) 22
#OEMPart name
48210 48210-36861 Spring Assy, Rear Rh
48210 90389-16003 Bimetal Formed Bush(For Front Spring)
48210 90389-16005 Bush(For Rear Spring Leaf)
48211 48201-36861 Leaf, Rear Spring, No.1
48212 48202-36861 Leaf, Rear Spring, No.2
48213 48203-36861 Leaf, Rear Spring, No.3
48214 48214-36861 Leaf, Rear Spring, No.4
48215 48215-36861 Leaf, Rear Spring, No.5
48216 48216-3B060 Leaf, Rear Spring, No.6
48247 48247-36160 Bolt, Rear Spring, Center
48261 48218-36861 Leaf, Rear Helper Spring, No.1
48262 48219-36861 Leaf, Rear Helper Spring, No.2
48263 48204-36861 Leaf, Rear Helper Spring, No.3
48264 48222-36861 Leaf, Rear Helper Spring, No.4
48265 48223-36861 Leaf, Rear Helper Spring, No.5
48266 48224-36861 Leaf, Rear Helper Spring, No.6
482533 48253-3B691 Spacer, Rear Spring, No.1
4819136130 48191-36130 Wedge, Caster(For Rear Leaf Spring)
9030427009 90304-27009 Seal, Dust(For Rear Spring Pin)
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411051000 94110-51000 Nut(For Steering Center Arm)
