YU82

Toyota DYNA-200-TOYOACE-G25 · 1988 · 3,952 parts · 187 categories

3,952 items

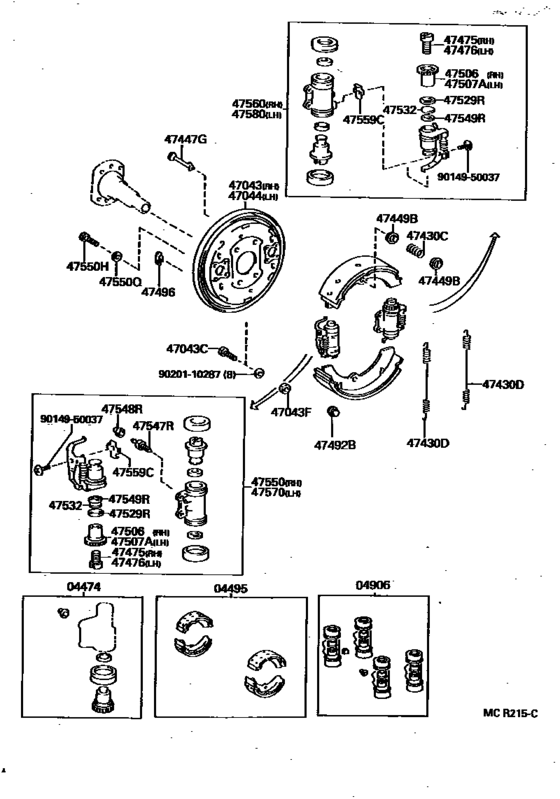

Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82) 64

#	OEM	Part name
4474	04474-36120	Cylinder Kit, Rear Wheel
4474	04474-36130	Cylinder Kit, Rear Wheel
4474	04474-36140	Cylinder Kit, Rear Wheel
4474	04474-36141	Cylinder Kit, Rear Wheel
4474	04474-36150	Cylinder Kit, Rear Wheel
4474	04474-36151	Cylinder Kit, Rear Wheel
4495	04495-36070	Shoe Kit, Rear Brake
4495	04495-36110	Shoe Kit, Rear Brake
4495	04495-36080	Shoe Kit, Rear Brake
4906	04906-36070	Cup Kit, Rear Wheel Cylinder
4906	04906-36120	Cup Kit, Rear Wheel Cylinder
4906	04906-36170	Cup Kit, Rear Wheel Cylinder
4906	04906-36180	Cup Kit, Rear Wheel Cylinder
4906	04906-36181	Cup Kit, Rear Wheel Cylinder
47043	47043-36110	Plate Sub-Assy, Brake Backing, Rear Rh
47043	47043-36140	Plate Sub-Assy, Brake Backing, Rear Rh
47043	47492-28010	Plug, Shoe Inspection(For Rear Brake)
47043	90114-10019	Bolt(For Backing Plate To Rear Axle Housing Setting)
47043	90114-10063	Bolt, No.1(For Rear Brake Backing Plate Rh)
47043	90170-10178	Nut(For Backing Plate To Rear Axle Housing Setting)
47043	94130-01002	Nut, Booster Sleeve Cylinder
47044	47044-36110	Plate Sub-Assy, Brake Backing, Rear Lh
47044	47044-36140	Plate Sub-Assy, Brake Backing, Rear Lh
47430	90501-20012	Spring(For Front Brake Shoe Hold Down)
47430	90507-29006	Spring, Tension(For Front Brake Shoe Return)
47447	47447-60010	Pin, Shoe Hold Down Spring(For Front Brake)
47449	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47475	47553-36060	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47475	47553-36070	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47476	47554-36060	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47476	47554-36070	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47496	47491-36010	Plug, Hole(For Front Brake)
47496	47491-36020	Plug, Hole(For Rear Brake)
47506	47506-36010	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)
47507	47507-36010	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47529	47529-36010	Seal, Front Wheel Brake Cylinder Adjust Dust
47532	47532-36020	Insert, Rear Wheel Cylinder Piston
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47549	47549-36010	Seat, Front Brake Automatic Adjust Nut
47550	47550-36120	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-36140	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-36150	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-36230	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	47550-36240	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)
47550	90101-10127	Bolt(For Front Wheel Cylinder)
47550	90201-10287	Washer(For Front Wheel Cylinder)
47559	47559-36010	Sping, Front Automatic Adjust Lever Support
47560	47560-36120	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560	47560-36140	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560	47560-36150	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560	47560-36230	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47560	47560-36240	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)
47570	47570-36120	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570	47570-36140	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570	47570-36150	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570	47570-36230	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47570	47570-36240	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)
47580	47580-36120	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580	47580-36140	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580	47580-36150	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580	47580-36230	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
47580	47580-36240	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)
9014950037	90149-50037	SCREW

OEM	Part name	Category
04474-36120	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04474-36130	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04474-36140	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04474-36141	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04474-36150	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04474-36151	Cylinder Kit, Rear Wheel	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04495-36070	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04495-36080	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04495-36110	Shoe Kit, Rear Brake	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04906-36070	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04906-36120	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04906-36170	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04906-36180	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
04906-36181	Cup Kit, Rear Wheel Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
31478-30010	Bleeder Plug Cap	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47043-36110	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47043-36140	Plate Sub-Assy, Brake Backing, Rear Rh	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47044-36110	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47044-36140	Plate Sub-Assy, Brake Backing, Rear Lh	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47447-60010	Pin, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47491-36010	Plug, Hole(For Front Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47491-36020	Plug, Hole(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47492-28010	Plug, Shoe Inspection(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47506-36010	Nut, Rear Wheel Cylinder Adjusting, Rh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47507-36010	Nut, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47529-36010	Seal, Front Wheel Brake Cylinder Adjust Dust	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47532-36020	Insert, Rear Wheel Cylinder Piston	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47547-12010	Plug, Bleeder(For Release Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47549-36010	Seat, Front Brake Automatic Adjust Nut	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47550-36120	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47550-36140	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47550-36150	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47550-36230	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47550-36240	Cylinder Assy, Rear Wheel Brake(For Rh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47553-36060	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47553-36070	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47554-36060	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47554-36070	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47559-36010	Sping, Front Automatic Adjust Lever Support	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47560-36120	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47560-36140	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47560-36150	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47560-36230	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47560-36240	Cylinder Assy, Rear Wheel Brake(For Rh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47570-36120	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47570-36140	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47570-36150	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47570-36230	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47570-36240	Cylinder Assy, Rear Wheel Brake(For Lh, Front Or Upper)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47580-36120	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47580-36140	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47580-36150	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47580-36230	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
47580-36240	Cylinder Assy, Rear Wheel Brake(For Lh, Rear Or Lower)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
90101-10127	Bolt(For Front Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
90114-10019	Bolt(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
90114-10063	Bolt, No.1(For Rear Brake Backing Plate Rh)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
90149-50037	SCREW	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
90170-10178	Nut(For Backing Plate To Rear Axle Housing Setting)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
90201-10287	Washer(For Front Wheel Cylinder)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
90501-20012	Spring(For Front Brake Shoe Hold Down)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
90507-29006	Spring, Tension(For Front Brake Shoe Return)	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
94130-01002	Nut, Booster Sleeve Cylinder	Rear Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] W(AUTO ADJUSTER),CYLINDER CUP:RING (9303- )RU85,YU62,82)
