YU82

Toyota DYNA-200-TOYOACE-G25 · 1988 · 3,952 parts · 187 categories
YU82 ×

← Back to categories

3,952 items

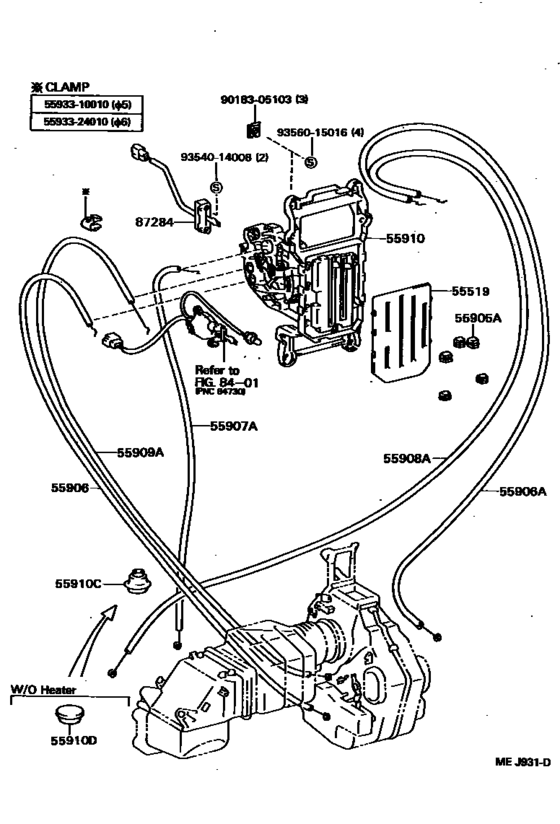

Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] (8808- )) 35
#OEMPart name
55519 55519-95403 Plate, Heater Control Name
55519 55519-95404 Plate, Heater Control Name
55519 55519-95406 Plate, Heater Control Name
55905 55905-10110 Knob, Heater Control
55905 55905-95707 Knob, Heater Control
55906 55906-36030 Cable Sub-Assy, Defroster Damper Control
55906 55906-95404 Cable Sub-Assy, Defroster Damper Control
55907 55907-36010 Cable Sub-Assy, Water Valve Control
55907 55907-95404 Cable Sub-Assy, Water Valve Control
55908 55906-36090 Cable Sub-Assy, Air Inlet Damper Control
55908 55908-95402 Cable Sub-Assy, Air Inlet Damper Control
55908 55908-95404 Cable Sub-Assy, Air Inlet Damper Control
55909 55909-95404 Cable Sub-Assy, Airmix Damper Control
55910 55910-36090 Control Assy, Heater Or Boost Ventilator
55910 55910-36100 Control Assy, Heater Or Boost Ventilator
55910 55910-36110 Control Assy, Heater Or Boost Ventilator
55910 55910-95409 Control Assy, Heater Or Boost Ventilator
55910 55906-36040 Cable Sub-Assy, Defroster Damper Control
55910 55906-36050 Cable Sub-Assy, Defroster Damper Control
55910 55906-36060 Cable Sub-Assy, Defroster Damper Control
55910 55907-36020 Cable Sub-Assy, Water Valve Control
55910 55907-36030 Cable Sub-Assy, Water Valve Control
55910 55907-36040 Cable Sub-Assy, Water Valve Control
55910 55910-95410 Control Assy, Heater Or Boost Ventilator
55910 55910-95411 Control Assy, Heater Or Boost Ventilator
55910 55906-36100 Cable Sub-Assy, Air Inlet Damper Control
55910 90480-24215 Grommet(For Heater Control Cable)
55910 90950-01127 Grommet (For Cooler Unit)
87284 88032-95400 Resistor Sub-Assy, Variable
5593310010 55933-10010 Clamp, Heater Control Wire
5593324010 55933-24010 Clamp, Heater Control Wire
8271122690 82711-22690 Wire, Fuse To Fuse(for Combustion Heater)
9018305103 90183-05103 NUT
9354014008 93540-14008 New Genuine Part
9356015016 93560-15016 New Genuine Part
