YU82

Toyota DYNA-200-TOYOACE-G25 · 1988 · 3,952 parts · 187 categories

3,952 items

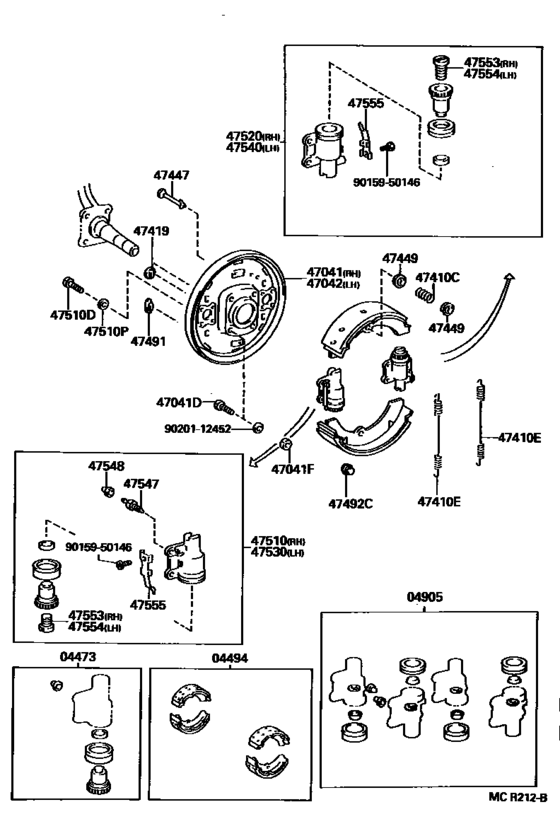

Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85) 38

#	OEM	Part name
4473	04473-36030	Cylinder Kit, Front Wheel
4473	04473-36040	Cylinder Kit, Front Wheel
4494	04494-36100	Shoe Kit, Front Brake
4494	04494-36140	Shoe Kit, Front Brake
4494	04494-36141	Shoe Kit, Front Brake
4905	04905-36080	Cup Kit, Front Wheel Cylinder
4905	04905-36140	Cup Kit, Front Wheel Cylinder
47041	47041-36130	Plate Sub-Assy, Brake Backing, Front Rh
47041	47041-36131	Plate Sub-Assy, Brake Backing, Front Rh
47041	47492-28010	Plug, Shoe Inspection(For Rear Brake)
47041	90101-12113	Bolt(For Backing Plate To Steering Knuckle Setting)
47041	94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)
47042	47042-36130	Plate Sub-Assy, Brake Backing, Front Lh
47042	47042-36131	Plate Sub-Assy, Brake Backing, Front Lh
47410	90501-20012	Spring(For Front Brake Shoe Hold Down)
47410	90507-29006	Spring, Tension(For Front Brake Shoe Return)
47419	47419-35011	Plug, Hole(For Front Brake)
47447	47447-36030	Pin, Shoe Hold Down Spring(For Front Brake)
47449	47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)
47491	47491-36010	Plug, Hole(For Front Brake)
47491	47491-36020	Plug, Hole(For Rear Brake)
47510	47510-36100	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	47510-36101	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)
47510	90101-10127	Bolt(For Front Wheel Cylinder)
47510	90201-10287	Washer(For Front Wheel Cylinder)
47520	47520-36100	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47520	47520-36101	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)
47530	47530-36100	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47530	47530-36101	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)
47540	47540-36100	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47540	47540-36101	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)
47547	47547-12010	Plug, Bleeder(For Release Cylinder)
47548	31478-30010	Bleeder Plug Cap
47553	47553-36060	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)
47554	47554-36060	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)
47555	47555-36040	Spring, Adjuster Lock(For Front Brake)
9015950146	90159-50146	SCREW
9020112452	90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)

OEM	Part name	Category
04473-36030	Cylinder Kit, Front Wheel	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
04473-36040	Cylinder Kit, Front Wheel	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
04494-36100	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
04494-36140	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
04494-36141	Shoe Kit, Front Brake	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
04905-36080	Cup Kit, Front Wheel Cylinder	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
04905-36140	Cup Kit, Front Wheel Cylinder	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
31478-30010	Bleeder Plug Cap	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47041-36130	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47041-36131	Plate Sub-Assy, Brake Backing, Front Rh	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47042-36130	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47042-36131	Plate Sub-Assy, Brake Backing, Front Lh	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47419-35011	Plug, Hole(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47447-36030	Pin, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47449-30020	Cup, Shoe Hold Down Spring(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47491-36010	Plug, Hole(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47491-36020	Plug, Hole(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47492-28010	Plug, Shoe Inspection(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47510-36100	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47510-36101	Cylinder Assy, Front Wheel Brake, Rh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47520-36100	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47520-36101	Cylinder Assy, Front Wheel Brake, Rh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47530-36100	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47530-36101	Cylinder Assy, Front Wheel Brake, Lh(For Front Or Upper)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47540-36100	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47540-36101	Cylinder Assy, Front Wheel Brake, Lh(For Rear Or Lower)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47547-12010	Plug, Bleeder(For Release Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47553-36060	Bolt, Rear Wheel Cylinder Adjusting, Rh (For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47554-36060	Bolt, Rear Wheel Cylinder Adjusting, Lh(For Rear Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
47555-36040	Spring, Adjuster Lock(For Front Brake)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
90101-10127	Bolt(For Front Wheel Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
90101-12113	Bolt(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
90159-50146	SCREW	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
90201-10287	Washer(For Front Wheel Cylinder)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
90201-12452	Nut(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
90501-20012	Spring(For Front Brake Shoe Hold Down)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
90507-29006	Spring, Tension(For Front Brake Shoe Return)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
94115-71200	Nut(For Backing Plate To Steering Knuckle Setting)	Front Drum Brake Wheel Cylinder & Backing Plate ([03.1993 - ] CYLINDER CUP:RING TYPE (9303- )RU85,YU6#,82 ; (9403- )YU85)
