Search › Model › YU82

YU82

Toyota DYNA-200-TOYOACE-G25 · 1988 · 3,952 parts · 187 categories

3,952 items

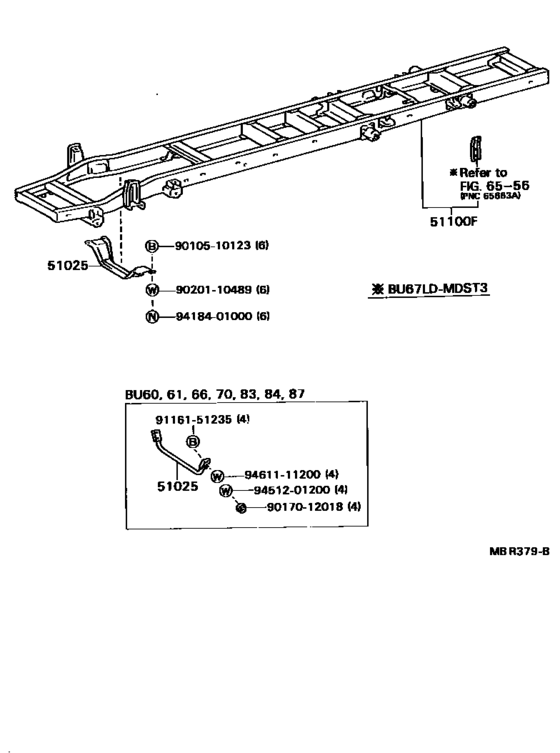

Frame ([08.1988 - ] (8808- )) 39

#	OEM	Part name
51100	51002-3B750	Frame Sub-Assy
51201	51201-36130	Crossmember Sub-Assy, Frame, Front
51203	51202-36130	Crossmember Sub-Assy, Frame, No.2
51204	51203-36250	Crossmember Sub-Assy, Frame, No.3
51204	51203-36251	Crossmember Sub-Assy, Frame, No.3
51205	51204-36120	Crossmember Sub-Assy, Frame, No.4
51205	51205-36130	Bracket Sub-Assy, Differential Support
51207	51207-36060	Crossmember Sub-Assy, Frame, No.5
51209	51209-36210	Crossmember Sub-Assy, Frame, No.7
51401	51401-36130	Bracket Sub-Assy, Engine Front Mounting, Rh
51402	51402-36130	Bracket Sub-Assy, Engine Front Mounting, Lh
51721	51711-36020	Bracket, Cab Front Mounting, Rh
51721	90101-12191	BOLT, HEXAGON
51721	51711-37110	Bracket, Cab Front Mounting, Rh
51722	51712-36020	Bracket, Cab Front Mounting, Lh
51722	51712-37090	Bracket, Cab Front Mounting, Lh
51731	51731-36100	Bracket, Cab Rear Mounting, Rh
9010510123	90105-10123	New Genuine Part
9010510166	90105-10166	BOLT
9010512002	90105-12002	New Genuine Part
9010912024	90109-12024	New Genuine Part
9017010082	90170-10082	Nut, Hexagon (For Control Rod Setting)
9017012018	90170-12018	Nut (For Propeller Shaft)
9020110203	90201-10203	Washer, Plate
9020110489	90201-10489	Washer, Plate(For Timing Gear)
9020112002	90201-12002	WASHER
9111271030	91112-71030	New Genuine Part
9116151235	91161-51235	New Genuine Part
9116151235	91162-61235	New Genuine Part
9116171235	91161-71235	Bolt(For Backing Plate To Steering Knuckle Setting)
9116271230	91162-71230	Bolt(for Dust Cover Setting)
9116271230	91162-81235	Bolt(for Dust Cover Setting)
9116571235	91165-71235	New Genuine Part
9411551200	94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)
9418401000	94184-01000	Nut
9451201200	94512-01200	Washer
9461111001	94611-11001	Plate, Rear Seat Back Stopper
9461111200	94611-11200	New Genuine Part
9462111200	94621-11200	New Genuine Part

OEM	Part name	Category
51002-3B750	Frame Sub-Assy	Frame ([08.1988 - ] (8808- ))
51201-36130	Crossmember Sub-Assy, Frame, Front	Frame ([08.1988 - ] (8808- ))
51202-36130	Crossmember Sub-Assy, Frame, No.2	Frame ([08.1988 - ] (8808- ))
51203-36250	Crossmember Sub-Assy, Frame, No.3	Frame ([08.1988 - ] (8808- ))
51203-36251	Crossmember Sub-Assy, Frame, No.3	Frame ([08.1988 - ] (8808- ))
51204-36120	Crossmember Sub-Assy, Frame, No.4	Frame ([08.1988 - ] (8808- ))
51205-36130	Bracket Sub-Assy, Differential Support	Frame ([08.1988 - ] (8808- ))
51207-36060	Crossmember Sub-Assy, Frame, No.5	Frame ([08.1988 - ] (8808- ))
51209-36210	Crossmember Sub-Assy, Frame, No.7	Frame ([08.1988 - ] (8808- ))
51401-36130	Bracket Sub-Assy, Engine Front Mounting, Rh	Frame ([08.1988 - ] (8808- ))
51402-36130	Bracket Sub-Assy, Engine Front Mounting, Lh	Frame ([08.1988 - ] (8808- ))
51711-36020	Bracket, Cab Front Mounting, Rh	Frame ([08.1988 - ] (8808- ))
51711-37110	Bracket, Cab Front Mounting, Rh	Frame ([08.1988 - ] (8808- ))
51712-36020	Bracket, Cab Front Mounting, Lh	Frame ([08.1988 - ] (8808- ))
51712-37090	Bracket, Cab Front Mounting, Lh	Frame ([08.1988 - ] (8808- ))
51731-36100	Bracket, Cab Rear Mounting, Rh	Frame ([08.1988 - ] (8808- ))
90101-12191	BOLT, HEXAGON	Frame ([08.1988 - ] (8808- ))
90105-10123	New Genuine Part	Frame ([08.1988 - ] (8808- ))
90105-10166	BOLT	Frame ([08.1988 - ] (8808- ))
90105-12002	New Genuine Part	Frame ([08.1988 - ] (8808- ))
90109-12024	New Genuine Part	Frame ([08.1988 - ] (8808- ))
90170-10082	Nut, Hexagon (For Control Rod Setting)	Frame ([08.1988 - ] (8808- ))
90170-12018	Nut (For Propeller Shaft)	Frame ([08.1988 - ] (8808- ))
90201-10203	Washer, Plate	Frame ([08.1988 - ] (8808- ))
90201-10489	Washer, Plate(For Timing Gear)	Frame ([08.1988 - ] (8808- ))
90201-12002	WASHER	Frame ([08.1988 - ] (8808- ))
91112-71030	New Genuine Part	Frame ([08.1988 - ] (8808- ))
91161-51235	New Genuine Part	Frame ([08.1988 - ] (8808- ))
91161-71235	Bolt(For Backing Plate To Steering Knuckle Setting)	Frame ([08.1988 - ] (8808- ))
91162-61235	New Genuine Part	Frame ([08.1988 - ] (8808- ))
91162-71230	Bolt(for Dust Cover Setting)	Frame ([08.1988 - ] (8808- ))
91162-81235	Bolt(for Dust Cover Setting)	Frame ([08.1988 - ] (8808- ))
91165-71235	New Genuine Part	Frame ([08.1988 - ] (8808- ))
94115-51200	Nut(For Backing Plate To Steering Knuckle Setting)	Frame ([08.1988 - ] (8808- ))
94184-01000	Nut	Frame ([08.1988 - ] (8808- ))
94512-01200	Washer	Frame ([08.1988 - ] (8808- ))
94611-11001	Plate, Rear Seat Back Stopper	Frame ([08.1988 - ] (8808- ))
94611-11200	New Genuine Part	Frame ([08.1988 - ] (8808- ))
94621-11200	New Genuine Part	Frame ([08.1988 - ] (8808- ))
