YU71

Toyota DYNA-TOYOACE · 1986 · 3,409 parts · 154 categories

3,409 items

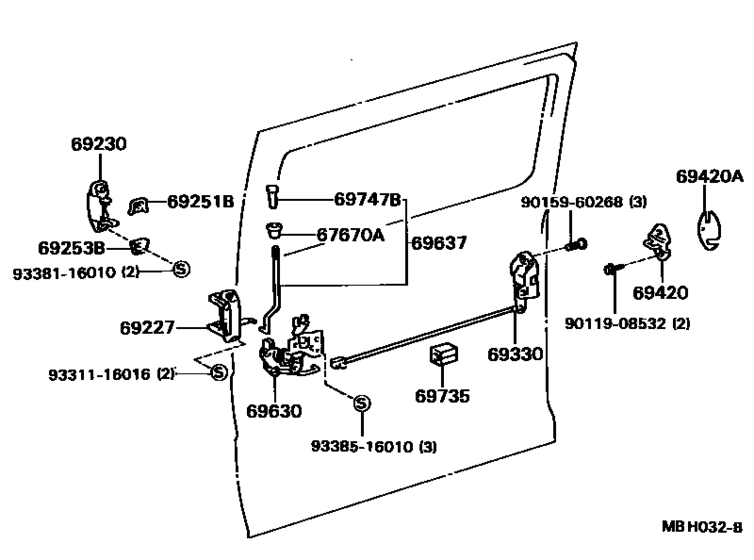

Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#) 20

#	OEM	Part name
67670	90480-10102	Grommet(For Door Panel Lock Button)
67670	90480-10102-01	Grommet(For Rear Door Panel Lock Button)
69227	69070-92602-03	Handle, Rear Door Inside, Rh
69230	69230-92601	Handle Assy, Rear Door Outside, Rh
69251	69246-95A00	Pad, Slide Door Outside Handle, No.2 Rh
69253	69247-95A00	Pad, Slide Door Outside Handle, No.2 Rh
69330	69330-95A02	Lock Assy, Rear Door, Rh
69420	69470-95A01	Plate Assy, Rear Door Lock Striker
69420	69473-95A00	Spacer, Slide Door Rear Lock Striker
69630	69630-95A00	Control Assy, Slide Door Lock Remote
69637	69703-95A00	Link Sub-Assy, Rear Door Locking Control, Rh
69735	69388-95A00	Silencer, Slide Door Lock Remote Control Link
69747	69747-20020-01	Button, Door Locking
69747	69747-20020-C0	Button, Door Locking(For Front Door)
9011908532	90119-08532	Bolt(For Intake Manifold To Exhaust Manifold)
9011908532	91611-60822	Bolt
9015960268	90159-60268	Screw
9331116016	93311-16016	SCREW
9338116010	93381-16010	New Genuine Part
9338516010	93385-16010	New Genuine Part

OEM	Part name	Category
69070-92602-03	Handle, Rear Door Inside, Rh	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69230-92601	Handle Assy, Rear Door Outside, Rh	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69246-95A00	Pad, Slide Door Outside Handle, No.2 Rh	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69247-95A00	Pad, Slide Door Outside Handle, No.2 Rh	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69330-95A02	Lock Assy, Rear Door, Rh	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69388-95A00	Silencer, Slide Door Lock Remote Control Link	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69470-95A01	Plate Assy, Rear Door Lock Striker	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69473-95A00	Spacer, Slide Door Rear Lock Striker	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69630-95A00	Control Assy, Slide Door Lock Remote	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69703-95A00	Link Sub-Assy, Rear Door Locking Control, Rh	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69747-20020-01	Button, Door Locking	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
69747-20020-C0	Button, Door Locking(For Front Door)	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
90119-08532	Bolt(For Intake Manifold To Exhaust Manifold)	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
90159-60268	Screw	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
90480-10102	Grommet(For Door Panel Lock Button)	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
90480-10102-01	Grommet(For Rear Door Panel Lock Button)	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
91611-60822	Bolt	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
93311-16016	SCREW	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
93381-16010	New Genuine Part	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
93385-16010	New Genuine Part	Rear Door Lock & Handle ([09.1984 - ] (8409- )YU7#)
