Search › Model › YU71

YU71

Toyota DYNA-TOYOACE · 1986 · 3,409 parts · 154 categories

3,409 items

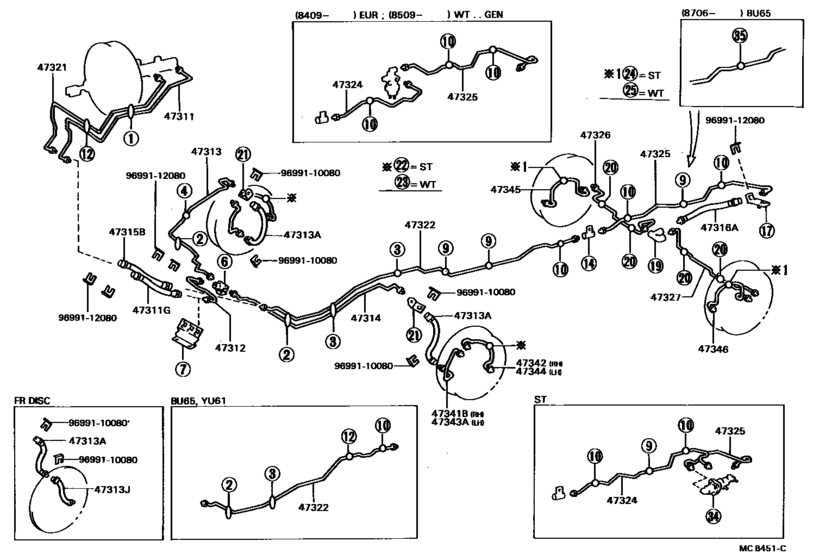

Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD) 22

#	OEM	Part name
47311	47311-36330	Tube, Front Brake, No.1
47311	96932-33705	Hose, Clutch, No.1
47312	47312-36250	Tube, Front Brake, No.2
47313	47313-36160	Tube, Front Brake, No.3
47313	90947-02469	Hose, Flexible, No.1(For Front)
47313	90947-02531	Hose, Flexible, No.1(For Front)
47314	47314-36230	Tube, Front Brake, No.4
47316	96912-34005	Hose, Clutch, No.1
47321	47321-36230	Tube, Rear Brake, No.1
47322	47322-36210	Tube, Rear Brake, No.2
47322	47322-36212	Tube, Rear Brake, No.2
47322	47322-36211	Tube, Rear Brake, No.2
47324	47324-36120	Tube, Rear Brake, No.4
47325	47325-36190	Tube, Rear Brake, No.5
47326	47329-36140	Tube, Rear Brake, No.6
47327	47327-36130	Tube, Rear Brake, No.7
47341	47341-36070	Tube, Wheel Cylinder, Front Rh No.1
47342	47342-36020	Tube, Wheel Cylinder, Front Rh No.2
47343	47343-36070	Tube, Wheel Cylinder, Front Lh No.1
47345	47345-36011	Tube, Wheel Cylinder, Rear Rh
9699110080	96991-10080	CLIP
9699112080	96991-12080	Clip

OEM	Part name	Category
47311-36330	Tube, Front Brake, No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47312-36250	Tube, Front Brake, No.2	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47313-36160	Tube, Front Brake, No.3	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47314-36230	Tube, Front Brake, No.4	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47321-36230	Tube, Rear Brake, No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47322-36210	Tube, Rear Brake, No.2	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47322-36211	Tube, Rear Brake, No.2	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47322-36212	Tube, Rear Brake, No.2	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47324-36120	Tube, Rear Brake, No.4	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47325-36190	Tube, Rear Brake, No.5	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47327-36130	Tube, Rear Brake, No.7	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47329-36140	Tube, Rear Brake, No.6	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47341-36070	Tube, Wheel Cylinder, Front Rh No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47342-36020	Tube, Wheel Cylinder, Front Rh No.2	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47343-36070	Tube, Wheel Cylinder, Front Lh No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
47345-36011	Tube, Wheel Cylinder, Rear Rh	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
90947-02469	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
90947-02531	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
96912-34005	Hose, Clutch, No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
96932-33705	Hose, Clutch, No.1	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
96991-10080	CLIP	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
96991-12080	Clip	Brake Tube & Clamp ([09.1984 - ] (8409- )YU60,62,7#..LHD)
