YU71

Toyota DYNA-TOYOACE · 1986 · 3,409 parts · 154 categories

3,409 items

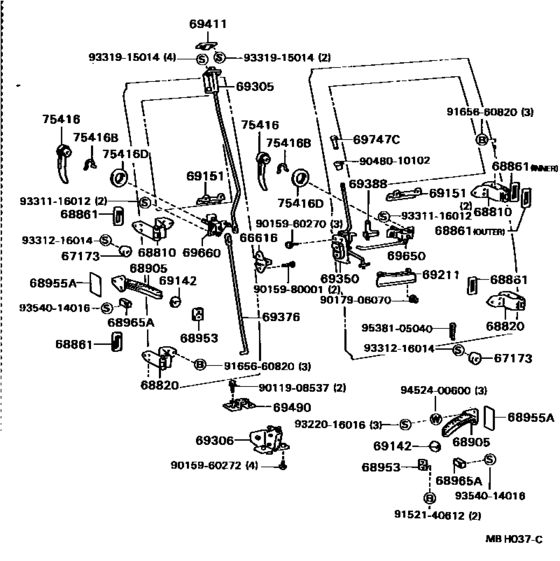

Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#) 46

#	OEM	Part name
67173	67173-92605	Cushion, Back Door
68810	68801-92602	Hinge Assy, Back Door, Upper
68820	68803-92601	Hinge Sub-Assy, Back Door, Lower Rh
68861	68861-92601	Hold, Back Door Hinge
68861	68863-92600	Hold, Back Door Hinge
68905	68905-92607	Stopper Sub-Assy, Back Door Open
68953	68953-92605	Plate, Back Door Open Stopper Arm Guide
68953	68954-92605	Plate, Back Door Open Stopper Arm Guide
68955	68955-92605	Silencer, Back Door Open Stopper
68965	68965-92605	Guide, Back Door Open Stopper
69142	69142-92606	Cushion, Door Open Stopper
69151	69285-92602-01	Handle, Back Door Inside Pull
69211	69210-92601	Handle, Back Door Outside, Rh
69305	69370-92605	Lock Sub-Assy, Back Door, Upper
69306	69350-95A00	Lock Sub-Assy, Back Door, Lower
69350	69330-92605	Lock Assy, Back Door
69376	69375-92605	Link, Back Door Lower
69388	69388-12010	Snap, Rod(For Door Lock)
69411	69431-92605	Check, Back Door
69490	69450-95A00	Striker Assy, Back Door
69650	69650-92605	Control Assy, Back Door Lock Remote, Rh
69660	69660-92606	Control Assy, Back Door Lock Remote, Lh
69747	69747-20020-01	Button, Door Locking
69747	69747-20020-C0	Button, Door Locking(For Front Door)
75416	69271-95110	Handle Assy, Back Door Inside
75416	90520-01192	Ring, Snap (For Back Door Inside Handle)
75416	69273-92600	Plate, Door Inside
9011908537	90119-08537	New Genuine Part
9015960270	90159-60270	New Genuine Part
9015960272	90159-60272	New Genuine Part
9015980001	90159-80001	SCREW
9017906070	90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070	90179-06159	Nut, Rear Wiper Link Pivot, No.1
9048010102	90480-10102	Grommet(For Door Panel Lock Button)
9048010102	90480-10102-01	Grommet(For Rear Door Panel Lock Button)
9152140612	91521-40612	New Genuine Part
9152140612	91511-A0612	New Genuine Part
9165660820	91656-60820	New Genuine Part
9165660820	91651-60816	BOLT
9322016016	93220-16016	SCREW
9331116012	93311-16012	Screw, Rear Axle Bearing Lock Nut
9331216014	93312-16014	SCREW W/WASHER
9331915014	93319-15014	Screw, Cover Set, No.1
9354014016	93540-14016	SCREW
9452400600	94524-00600	New Genuine Part
9538105040	95381-05040	Key, Woodruff(For Steering Idler Arm)

OEM	Part name	Category
67173-92605	Cushion, Back Door	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
68801-92602	Hinge Assy, Back Door, Upper	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
68803-92601	Hinge Sub-Assy, Back Door, Lower Rh	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
68861-92601	Hold, Back Door Hinge	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
68863-92600	Hold, Back Door Hinge	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
68905-92607	Stopper Sub-Assy, Back Door Open	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
68953-92605	Plate, Back Door Open Stopper Arm Guide	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
68954-92605	Plate, Back Door Open Stopper Arm Guide	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
68955-92605	Silencer, Back Door Open Stopper	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
68965-92605	Guide, Back Door Open Stopper	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69142-92606	Cushion, Door Open Stopper	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69210-92601	Handle, Back Door Outside, Rh	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69271-95110	Handle Assy, Back Door Inside	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69273-92600	Plate, Door Inside	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69285-92602-01	Handle, Back Door Inside Pull	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69330-92605	Lock Assy, Back Door	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69350-95A00	Lock Sub-Assy, Back Door, Lower	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69370-92605	Lock Sub-Assy, Back Door, Upper	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69375-92605	Link, Back Door Lower	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69388-12010	Snap, Rod(For Door Lock)	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69431-92605	Check, Back Door	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69450-95A00	Striker Assy, Back Door	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69650-92605	Control Assy, Back Door Lock Remote, Rh	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69660-92606	Control Assy, Back Door Lock Remote, Lh	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69747-20020-01	Button, Door Locking	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
69747-20020-C0	Button, Door Locking(For Front Door)	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
90119-08537	New Genuine Part	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
90159-60270	New Genuine Part	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
90159-60272	New Genuine Part	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
90159-80001	SCREW	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
90179-06070	Nut(For Steering Inter Shaft Dust Seal Cover)	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
90179-06159	Nut, Rear Wiper Link Pivot, No.1	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
90480-10102	Grommet(For Door Panel Lock Button)	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
90480-10102-01	Grommet(For Rear Door Panel Lock Button)	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
90520-01192	Ring, Snap (For Back Door Inside Handle)	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
91511-A0612	New Genuine Part	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
91521-40612	New Genuine Part	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
91651-60816	BOLT	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
91656-60820	New Genuine Part	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
93220-16016	SCREW	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
93311-16012	Screw, Rear Axle Bearing Lock Nut	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
93312-16014	SCREW W/WASHER	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
93319-15014	Screw, Cover Set, No.1	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
93540-14016	SCREW	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
94524-00600	New Genuine Part	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
95381-05040	Key, Woodruff(For Steering Idler Arm)	Back Door Lock & Hinge ([09.1984 - ] (8409- )YU7#)
