YU62

Toyota DYNA-TOYOACE · 1986 · 3,503 parts · 164 categories
YU62 ×

← Back to categories

3,503 items

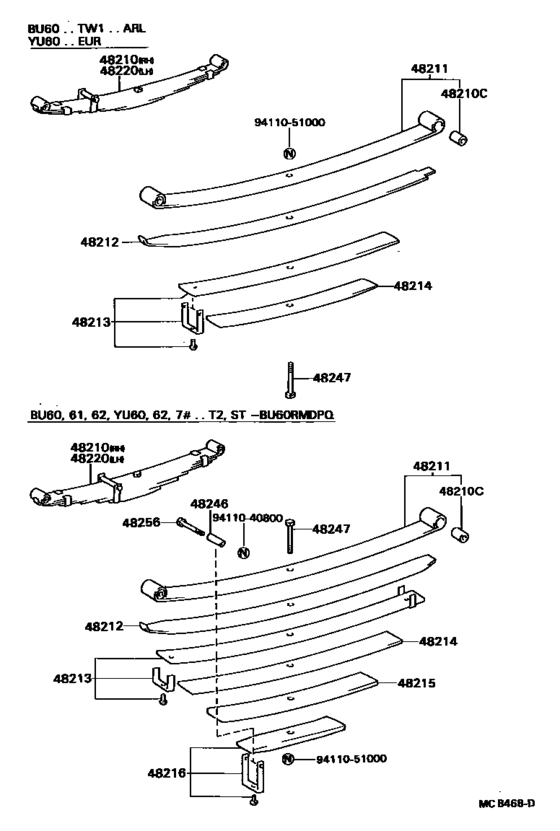

Rear Spring & Shock Absorber ([09.1984 - ] (8409- )) 33
#OEMPart name
48210 48210-36800 Spring Assy, Rear Rh
48210 48210-36810 Spring Assy, Rear Rh
48210 90389-16003 Bimetal Formed Bush(For Front Spring)
48211 48201-36800 Leaf, Rear Spring, No.1
48211 48201-36810 Leaf, Rear Spring, No.1
48212 48202-36800 Leaf, Rear Spring, No.2
48212 48202-3B640 Leaf, Rear Spring, No.2
48212 48202-36810 Leaf, Rear Spring, No.2
48213 48203-36800 Leaf, Rear Spring, No.3
48213 48203-36690 Leaf, Rear Spring, No.3
48213 48203-36810 Leaf, Rear Spring, No.3
48214 48214-36800 Leaf, Rear Spring, No.4
48214 48214-36690 Leaf, Rear Spring, No.4
48214 48214-36810 Leaf, Rear Spring, No.4
48215 48215-36800 Leaf, Rear Spring, No.5
48215 48215-3B350 Leaf, Rear Spring, No.5
48215 48215-36810 Leaf, Rear Spring, No.5
48247 48247-36250 Bolt, Rear Spring, Center
48247 48247-36270 Bolt, Rear Spring, Center
48261 48216-36800 Leaf, Rear Helper Spring, No.1
48261 48216-36810 Leaf, Rear Helper Spring, No.1
48262 48217-36800 Leaf, Rear Helper Spring, No.2
48262 48217-36810 Leaf, Rear Helper Spring, No.2
48263 48204-36800 Leaf, Rear Helper Spring, No.3
48263 48204-36810 Leaf, Rear Helper Spring, No.3
48264 48219-36800 Leaf, Rear Helper Spring, No.4
48264 48219-36810 Leaf, Rear Helper Spring, No.4
48265 48221-36800 Leaf, Rear Helper Spring, No.5
48265 48221-36810 Leaf, Rear Helper Spring, No.5
48266 48222-36800 Leaf, Rear Helper Spring, No.6
9411040800 94110-40800 Nut(For Steering Damper)
9411040800 94130-00802 Nut, No.1 (For Center Support Bearing)
9411051000 94110-51000 Nut(For Steering Center Arm)
