Search › Model › YU62

YU62

Toyota DYNA-TOYOACE · 1986 · 3,503 parts · 164 categories
YU62 ×

← Back to categories

3,503 items

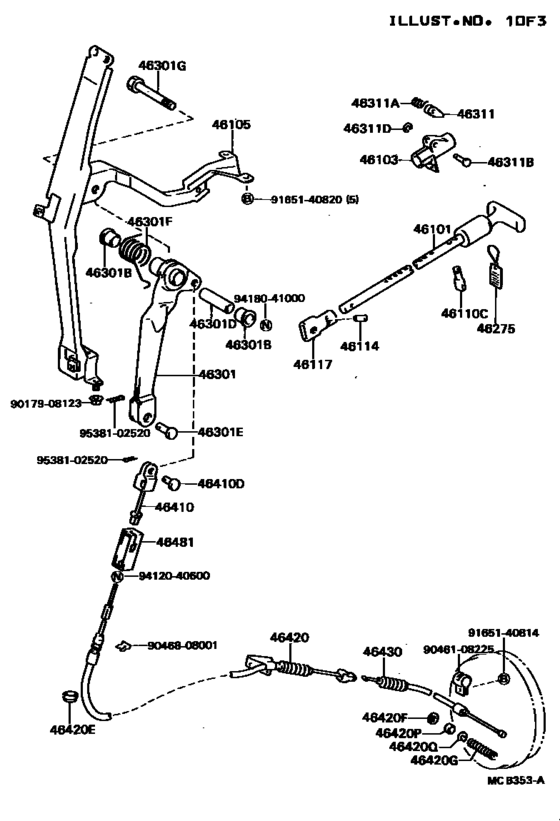

Parking Brake & Cable ([09.1984 - ] (8409- )) 59
#OEMPart name
46101 46101-36180-01 Handle Sub-Assy, Parking Brake Control
46101 46101-36180 Handle Sub-Assy, Parking Brake Control
46103 46103-36140 Guide Sub-Assy, Parking Brake Plunger
46105 46105-36020 Bracket Sub-Assy, Parking Brake Planger Or Pedal
46105 46105-25012 Bracket Sub-Assy, Parking Brake Planger Or Pedal
46110 46114-20010 Pin(For Parking Brake Handle Set)
46114 46114-30010 Pin, Parking Brake Plunger
46117 46117-30010 Sleeve, Parking Brake Plunger
46275 46275-26010 Plate, Parking Brake Release Caution
46301 46301-36070 Lever Sub-Assy, Parking Brake Intermediate
46301 90386-13007 Bush(For Clutch Pedal)
46301 90387-10004 Collar, Clutch Pedal Shaft
46301 90240-08010 Pin (For Power Take-Off Cable)
46301 90508-35024 Spring, Torsion(For Parking Brake Intermediate Lever)
46301 91111-71070 Bolt(For Intermediate Lever)
46311 46311-26010 Pawl, Parking Brake
46311 90508-08041 Spring(For Parking Brake Pawl)
46311 90249-05010 Pin, Parking Brake Pawl Pivot
46311 90213-03007 Washer, Type C(For Parking Brake Pawl)
46410 46410-36121 Cable Assy, Parking Brake, No.1
46410 46410-36350 Cable Assy, Parking Brake, No.1
46410 90240-08094 Pin, W/hole (For Column Shift Gear Selecting Rod)
46420 46420-36240 Cable Assy, Parking Brake, No.2
46420 90480-25026 Grommet(For Parking Brake Front Cable)
46420 90303-10001 Seal, Dust(For Parking Brake Cable)
46420 90501-14021 Spring(For Parking Cable Inner Wire Set)
46420 90560-08002 Spacer(For Parking Brake Handle)
46420 96160-00700 Ring, E(For Chain Tensioner Slipper)
46430 46430-36010 Cable Assy, Parking Brake, No.3
46430 46430-36011 Cable Assy, Parking Brake, No.3
46481 46481-36012 Connector, Parking Cable
46501 46501-36120 Drum Sub-Assy, Parking Brake
46501 90114-11124 Bolt (For Transfer Output Shaft Companion Flange)
46506 46506-36020 Adjuster Sub-Assy, Parking Brake Shoe, Rh Or Center
46520 46503-36022 Plate Sub-Assy, Parking Brake, Rh
46550 90506-18012 Spring, Tension, No.1(For Parking Brake Shoe Return)
46550 90213-06002 Washer, Type C(For Parking Brake Shoe)
46550 90213-06003 Washer, Type C(For Parking Brake Shoe)
46550 90506-14048 Spring, Tension, No.2(For Parking Brake Shoe Return)
46555 46555-35010 Spring, Brake Shoe Hold Down
46556 46556-35010 Pin, Shoe Hold Down Spring
46577 46577-36010 Cover, Adjusting Cam Hole
4654036010 46540-36010 Shoe Assy, Parking Brake, Rh Or Center No.1
4654036010 46540-25010 Shoe Assy, Parking Brake, Rh Or Center No.1
4655036010 46550-36010 Shoe Assy, Parking Brake, Rh Or Center No.2
4655036010 46550-25010 Shoe Assy, Parking Brake, Rh Or Center No.2
4660125011 46601-25011 Lever Sub-Assy, Parking Brake Shoe
9011910338 90119-10338 New Genuine Part
9011910339 90119-10339 Bolt, Hexagon(For Front Disc Brake Caliper)
9017908123 90179-08123 Nut (For Front Wiper Arm Setting)
9046108225 90461-08225 Clamp, No.3(For Parking Brake Cable)
9046808001 90468-08001 CLIP
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165140820 91651-40820 Bolt
9412040600 94120-40600 Nut, Wire Adjusting, No.1
9418041000 94180-41000 Nut
9461311200 94613-11200 WASHER
9538102520 95381-02520 PINCOTTER
Source
Public OEM parts-catalog data
Variants
2 / 16
Category
164
Collected
2026-08-03
