YU210

Toyota DYNA-200-TOYOACE-G25 · 1995 · 2,676 parts · 166 categories

← Back to categories

2,676 items

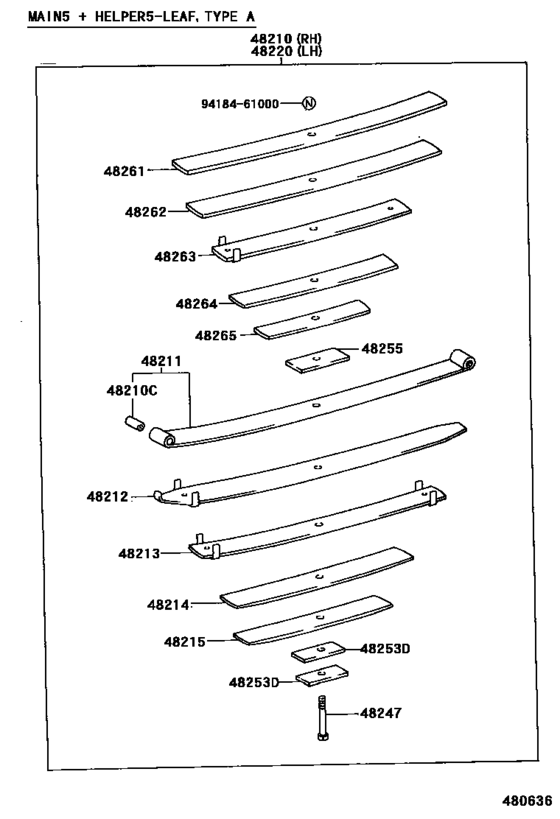

Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL) 17

#	OEM	Part name
48210	48210-37090	Spring Assy, Rear Rh
48210	90389-16002	Bimetal Formed Bush(For Front Spring)
48211	48201-3B060	Leaf, Rear Spring, No.1
48212	48202-3B060	Leaf, Rear Spring, No.2
48213	48203-3B060	Leaf, Rear Spring, No.3
48214	48214-3B060	Leaf, Rear Spring, No.4
48215	48215-3B060	Leaf, Rear Spring, No.5
48247	48247-36160	Bolt, Rear Spring, Center
48253	48216-3B060	Leaf, Rear Spring, No.6
48255	48253-36530	Spacer(For Front Spring)
48261	48218-3B060	Leaf, Rear Helper Spring, No.1
48262	48219-3B060	Leaf, Rear Helper Spring, No.2
48263	48204-37090	Leaf, Rear Helper Spring, No.3
48264	48222-3B060	Leaf, Rear Helper Spring, No.4
48265	48223-3B060	Leaf, Rear Helper Spring, No.5
9418461000	94184-61000	Nut(For Rear Spring)
9418461000	48284-37U70	Nut(For Rear Spring)

OEM	Part name	Category
48201-3B060	Leaf, Rear Spring, No.1	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48202-3B060	Leaf, Rear Spring, No.2	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48203-3B060	Leaf, Rear Spring, No.3	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48204-37090	Leaf, Rear Helper Spring, No.3	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48210-37090	Spring Assy, Rear Rh	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48214-3B060	Leaf, Rear Spring, No.4	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48215-3B060	Leaf, Rear Spring, No.5	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48216-3B060	Leaf, Rear Spring, No.6	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48218-3B060	Leaf, Rear Helper Spring, No.1	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48219-3B060	Leaf, Rear Helper Spring, No.2	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48222-3B060	Leaf, Rear Helper Spring, No.4	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48223-3B060	Leaf, Rear Helper Spring, No.5	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48247-36160	Bolt, Rear Spring, Center	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48253-36530	Spacer(For Front Spring)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
48284-37U70	Nut(For Rear Spring)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
90389-16002	Bimetal Formed Bush(For Front Spring)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
94184-61000	Nut(For Rear Spring)	Rear Spring & Shock Absorber ([05.1995 - ] (9505- )BU212..25T ; (9505- )BU211,YU210.. 30T ; (9505- )BU212..RHD..30T..D SL)
