YS130

Toyota CROWN-MAJESTA · 1987 · 3,929 parts · 192 categories

3,929 items

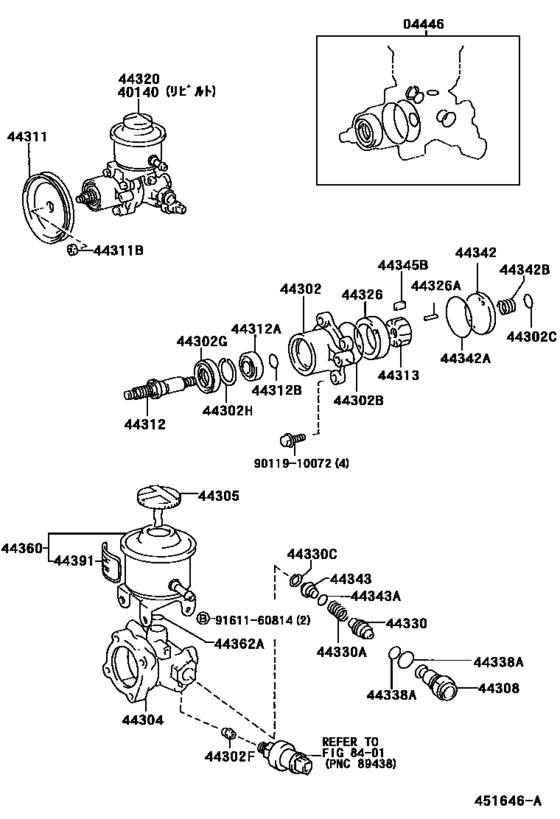

Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130) 61

#	OEM	Part name
4446	04446-30141	Gasket Kit, Power Steering Pump
40140	40140-30490	Pump Assy,vane Rebuilt
40140	44320-30490	Pump Assy, Vane
44302	44302-28020	Housing Sub-Assy, Vane Pump, Front
44302	90301-60001	Ring, O, No.1(For Vane Pump Housing)
44302	96711-19016	Ring, O (For 5Th Shift Arm Shaft)
44302	90410-05035	Seat, Union(For Valve Body Housing)
44302	90311-17004	Seal, Oil, No.2(For Vane Pump Housing)
44302	90521-51003	Ring, Snap, No.1(For Vane Pump Housing)
44304	44304-28012	Housing Sub-Assy, Vane Pump, Rear
44305	44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir
44305	44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir
44308	44308-30060	Union Sub-Assy, Pressure Port
44311	44311-30140	Pulley, Vane Pump
44311	90179-12022	Nut(For Vane Pump Pulley)
44312	44312-28010	Shaft, Vane Pump
44312	90363-17011	Bearing(For Vane Pump Shaft)
44312	90363-17017	Bearing(For Vane Pump Shaft)
44312	90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)
44312	44312-50010	Shaft, Vane Pump
44313	44313-22040	Rotor, Vane Pump
44313	44313-22050	Rotor, Vane Pump
44313	44313-22060	Rotor, Vane Pump
44313	44313-22070	Rotor, Vane Pump
44313	44313-22080	Rotor, Vane Pump
44326	44325-12010	Ring, Cam(For Vane Pump)
44326	44325-12020	Ring, Cam(For Vane Pump)
44326	44325-12030	Ring, Cam(For Vane Pump)
44326	44325-12040	Ring, Cam(For Vane Pump)
44326	44325-12050	Ring, Cam(For Vane Pump)
44326	90250-05008	Pin, Straight(For Vane Pump Cam Ring)
44330	44330-32130	Valve Assy, Flow Control
44330	44330-32670	Valve Assy, Flow Control
44330	44330-32140	Valve Assy, Flow Control
44330	44330-32680	Valve Assy, Flow Control
44330	44330-32150	Valve Assy, Flow Control
44330	44330-32690	Valve Assy, Flow Control
44330	44330-32160	Valve Assy, Flow Control
44330	44330-32700	Valve Assy, Flow Control
44330	44330-32170	Valve Assy, Flow Control
44330	44330-32710	Valve Assy, Flow Control
44330	44330-32180	Valve Assy, Flow Control
44330	44330-32720	Valve Assy, Flow Control
44330	90501-12103	Spring, Compression(For Flow Control Valve)
44330	96151-01700	Ring, Snap(For Flow Control Valve)
44338	90301-22001	Ring, O(For Pressure Port Union)
44338	96711-19014	O-Ring
44342	44341-12010	Plate, Vane Pump Side, Front
44342	90301-53002	Ring, O(For Vane Pump Side Plate Rear)
44342	90501-23014	Spring, Compression(For Vane Pump Side Plate Rear)
44343	44343-12040	Seat, Flow Control Spring
44345	44345-12010	Plate, Vane Pump
44345	44345-12020	Plate, Vane Pump
44345	44345-12030	Plate, Vane Pump
44345	44345-12040	Plate, Vane Pump
44345	44345-12050	Plate, Vane Pump
44360	44306-30200	Reservoir Assy, Vane Pump Oil
44362	96711-19013	Ring, O(For Power Steering Suction Port)
44391	44391-14010	Plate, Power Steering Oil Reservoir Caution
9011910072	90119-10072	New Genuine Part
9161160814	91611-60814	Bolt

OEM	Part name	Category
04446-30141	Gasket Kit, Power Steering Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
40140-30490	Pump Assy,vane Rebuilt	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44302-28020	Housing Sub-Assy, Vane Pump, Front	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44304-28012	Housing Sub-Assy, Vane Pump, Rear	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44305-22040	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44305-22061	Cap Sub-Assy, Vane Pump Oil Reservoir	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44306-30200	Reservoir Assy, Vane Pump Oil	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44308-30060	Union Sub-Assy, Pressure Port	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44311-30140	Pulley, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44312-28010	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44312-50010	Shaft, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44313-22040	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44313-22050	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44313-22060	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44313-22070	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44313-22080	Rotor, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44320-30490	Pump Assy, Vane	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44325-12010	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44325-12020	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44325-12030	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44325-12040	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44325-12050	Ring, Cam(For Vane Pump)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32130	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32140	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32150	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32160	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32170	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32180	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32670	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32680	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32690	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32700	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32710	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44330-32720	Valve Assy, Flow Control	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44341-12010	Plate, Vane Pump Side, Front	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44343-12040	Seat, Flow Control Spring	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44345-12010	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44345-12020	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44345-12030	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44345-12040	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44345-12050	Plate, Vane Pump	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
44391-14010	Plate, Power Steering Oil Reservoir Caution	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90119-10072	New Genuine Part	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90179-12022	Nut(For Vane Pump Pulley)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90250-05008	Pin, Straight(For Vane Pump Cam Ring)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90301-22001	Ring, O(For Pressure Port Union)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90301-53002	Ring, O(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90301-60001	Ring, O, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90311-17004	Seal, Oil, No.2(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90363-17011	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90363-17017	Bearing(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90410-05035	Seat, Union(For Valve Body Housing)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90501-12103	Spring, Compression(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90501-23014	Spring, Compression(For Vane Pump Side Plate Rear)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90520-15005	Ring, Snap, No.1(For Vane Pump Shaft)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
90521-51003	Ring, Snap, No.1(For Vane Pump Housing)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
91611-60814	Bolt	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
96151-01700	Ring, Snap(For Flow Control Valve)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
96711-19013	Ring, O(For Power Steering Suction Port)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
96711-19014	O-Ring	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
96711-19016	Ring, O (For 5Th Shift Arm Shaft)	Vane Pump & Reservoir (Power Steering) ([12.1991 - ] (9112- )YS130)
