Search › Model › YS130

YS130

Toyota CROWN-MAJESTA · 1987 · 3,929 parts · 192 categories

3,929 items

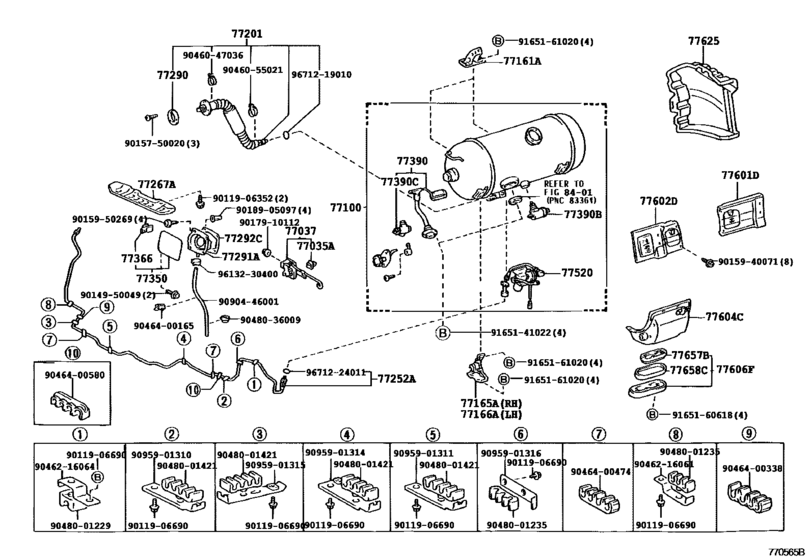

Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG) 61

#	OEM	Part name
77035	69749-20010	Clamp, Front Door Lock Link
77037	77037-30030	Lock Sub-Assy, Fuel Filler Opening Lid
77100	77001-30400	Tank Assy, Fuel
77161	77161-30060	Bracket, Fuel Tank Mounting, Front
77165	77165-30040	Bracket, Fuel Tank Mounting, Rear No.2 Rh
77166	77166-30030	Bracket, Fuel Tank Mounting, Rear No.2 Lh
77201	77201-30220	Pipe Sub-Assy, Fuel Tank Inlet
77252	77252-30331	Tube, Fuel Main, No.2
77267	77267-30050	Protector, Fuel Tube, No.2
77290	77291-30050	Shield Assy, Fuel Tank Filler Pipe
77291	77291-30040	Shield, Fuel Tank Filler Pipe
77292	77292-30030	Shield, Fuel Tank Filler Pipe, No.2
77350	77350-30230	Lid Assy, Fuel Filler Opening
77366	77366-35010	Spring, Fuel Filler Opening Lid Hinge
77390	77390-30050	Valve Assy, Fuel Tank Inlet
77390	90977-01025	Valve (For Lpg Tank)
77390	90977-01017	Valve, Fuel Tank Outlet
77520	77203-30100	Valve Assy, Solenoid Lpg Emergency
77601	77601-30130	Cover Sub-Assy, Fuel Tank, Upper
77602	77602-30060	Cover Sub-Assy, Fuel Tank, Lower
77604	77604-30080	Cover Sub-Assy, Fuel Tank Valve
77606	77606-30110	Protector Sub-Assy, Fuel Tank, No.1
77625	77625-30030	Box, Fuel Tank Case
77657	77657-30030	Gasket, Breather Cover, Upper
77658	77658-30040	Gasket, Breather Cover, Lower
9011906352	90119-06352	New Genuine Part
9011906352	90119-06430	BOLT WWASHER
9011906690	90119-06690	BOLT, W/WASHER
9011906690	90119-06375	Bolt (For Transmission Housing & Case Setting)
9014950049	90149-50049	New Genuine Part
9015750020	90157-50020	New Genuine Part
9015940071	90159-40071	New Genuine Part
9015950269	90159-50269	SCREW WWASHER
9017910112	90179-10112	New Genuine Part
9017910112	90179-10186	New Genuine Part
9018905097	90189-05097	GROMMET SCREW
9046047036	90460-47036	Clamp Or Clip, Hose(For Radiator Inlet)
9046055021	90460-55021	Clamp Or Clip, Hose(For Radiator Outlet No.1)
9046216061	90462-16061	New Genuine Part
9046216064	90462-16064	New Genuine Part
9046400165	90464-00165	Clamp, No.2(For Luggage Door Lock Control Cable)
9046400338	90464-00338	New Genuine Part
9046400474	90464-00474	New Genuine Part
9046400580	90464-00580	New Genuine Part
9048001229	90480-01229	New Genuine Part
9048001235	90480-01235	New Genuine Part
9048001421	90480-01421	New Genuine Part
9048036009	90480-36009	New Genuine Part
9090446001	90904-46001	New Genuine Part
9095901310	90959-01310	New Genuine Part
9095901311	90959-01311	New Genuine Part
9095901314	90959-01314	New Genuine Part
9095901315	90959-01315	New Genuine Part
9095901316	90959-01316	New Genuine Part
9165141022	91651-41022	Bolt(For Transaxle & Engine Setting)
9165160618	91651-60618	Bolt(For Oil Receiver Pipe)
9165161020	91651-61020	Bolt, No.1 (For Center Support Bearing)
9613230400	96132-30400	Clip Or Clamp(For Ventilation Hose)
9613230400	96132-51000	Clip Or Clamp(For Ventilation Hose)
9671219010	96712-19010	Gasket, Check Valve
9671224011	96712-24011	Ring, O (For Tank Valve Joint Sleeve)

OEM	Part name	Category
69749-20010	Clamp, Front Door Lock Link	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77001-30400	Tank Assy, Fuel	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77037-30030	Lock Sub-Assy, Fuel Filler Opening Lid	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77161-30060	Bracket, Fuel Tank Mounting, Front	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77165-30040	Bracket, Fuel Tank Mounting, Rear No.2 Rh	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77166-30030	Bracket, Fuel Tank Mounting, Rear No.2 Lh	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77201-30220	Pipe Sub-Assy, Fuel Tank Inlet	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77203-30100	Valve Assy, Solenoid Lpg Emergency	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77252-30331	Tube, Fuel Main, No.2	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77267-30050	Protector, Fuel Tube, No.2	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77291-30040	Shield, Fuel Tank Filler Pipe	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77291-30050	Shield Assy, Fuel Tank Filler Pipe	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77292-30030	Shield, Fuel Tank Filler Pipe, No.2	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77350-30230	Lid Assy, Fuel Filler Opening	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77366-35010	Spring, Fuel Filler Opening Lid Hinge	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77390-30050	Valve Assy, Fuel Tank Inlet	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77601-30130	Cover Sub-Assy, Fuel Tank, Upper	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77602-30060	Cover Sub-Assy, Fuel Tank, Lower	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77604-30080	Cover Sub-Assy, Fuel Tank Valve	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77606-30110	Protector Sub-Assy, Fuel Tank, No.1	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77625-30030	Box, Fuel Tank Case	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77657-30030	Gasket, Breather Cover, Upper	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
77658-30040	Gasket, Breather Cover, Lower	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90119-06352	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90119-06375	Bolt (For Transmission Housing & Case Setting)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90119-06430	BOLT WWASHER	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90119-06690	BOLT, W/WASHER	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90149-50049	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90157-50020	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90159-40071	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90159-50269	SCREW WWASHER	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90179-10112	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90179-10186	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90189-05097	GROMMET SCREW	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90460-47036	Clamp Or Clip, Hose(For Radiator Inlet)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90460-55021	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90462-16061	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90462-16064	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90464-00165	Clamp, No.2(For Luggage Door Lock Control Cable)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90464-00338	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90464-00474	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90464-00580	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90480-01229	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90480-01235	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90480-01421	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90480-36009	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90904-46001	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90959-01310	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90959-01311	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90959-01314	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90959-01315	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90959-01316	New Genuine Part	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90977-01017	Valve, Fuel Tank Outlet	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
90977-01025	Valve (For Lpg Tank)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
91651-41022	Bolt(For Transaxle & Engine Setting)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
91651-60618	Bolt(For Oil Receiver Pipe)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
91651-61020	Bolt, No.1 (For Center Support Bearing)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
96132-30400	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
96132-51000	Clip Or Clamp(For Ventilation Hose)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
96712-19010	Gasket, Check Valve	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
96712-24011	Ring, O (For Tank Valve Joint Sleeve)	Fuel Tank & Tube ([12.1991 - ] (9112- )LPEFI,TWLPG)
