Search › Model › YS130

YS130

Toyota CROWN-MAJESTA · 1987 · 3,929 parts · 192 categories

3,929 items

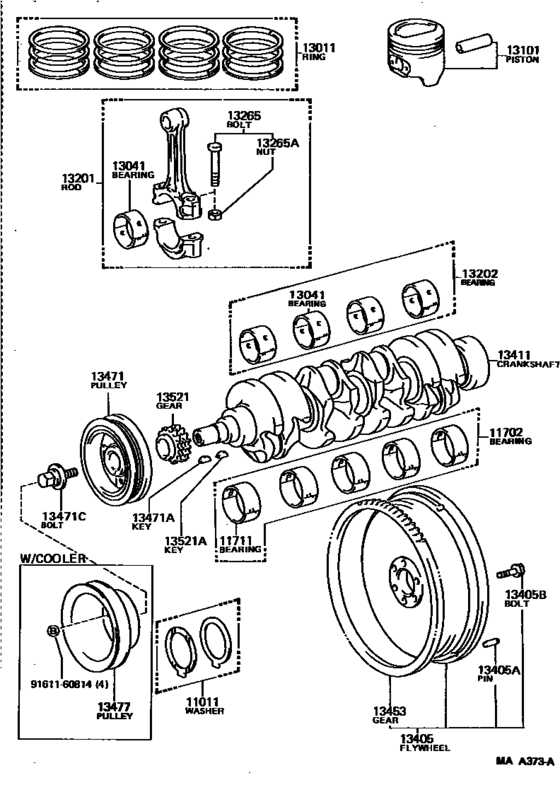

Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE) 42

#	OEM	Part name
11011	11011-25010	Washer Set, Crankshaft Thrust
11702	11704-71020	Bearing Set, Crankshaft (0.25)
11711	11701-71020-01	Bearing, Crankshaft
11711	11701-71020-02	Bearing, Crankshaft
11711	11701-71020-03	Bearing, Crankshaft
13011	13011-71060	Ring Set, Piston
13011	13013-71060	Ring Set, Piston
13011	13014-71060	Ring Set, Piston
13011	13015-71060	Case Sub-Assy, Timing Gear
13041	13041-71011-06	Bearing, Connecting Rod
13041	13041-73010-06	Bearing, Connecting Rod
13041	13041-71011-07	Bearing, Connecting Rod
13041	13041-73010-07	Bearing, Connecting Rod
13041	13041-71011-08	Bearing, Connecting Rod
13041	13041-73010-08	Bearing, Connecting Rod
13101	13101-72010-01	Piston Sub-Assy, W/pin
13101	13101-72010-02	Piston Sub-Assy, W/pin
13101	13101-72010-03	Piston Sub-Assy, W/pin
13101	13103-72010	Piston Sub-Assy, W/pin
13101	13104-72010	Piston Sub-Assy, W/pin
13101	13105-72010	Piston Sub-Assy, W/pin
13101	13101-73050-01	Piston Sub-Assy, W/pin
13101	13101-73050-02	Piston Sub-Assy, W/pin
13101	13101-73050-03	Piston Sub-Assy, W/pin
13101	13103-73050	Piston Sub-Assy, W/pin
13101	13104-73050	Piston Sub-Assy, W/pin
13101	13105-73050	Piston Sub-Assy, W/pin
13201	13201-79045	Rod Sub-Assy, Connecting
13201	13201-79046	Rod Sub-Assy, Connecting
13202	13204-71011	Bearing Set, Connecting Rod
13202	13204-73010	Bearing Set, Connecting Rod (0.25)
13265	13265-29025	Bolt, Connecting Rod
13265	90170-09001	Nut, Hexagon(For Connecting Rod Bolt)
13411	13411-73010	Crankshaft
13411	13411-73900	Crankshaft
13471	13408-71010	Pulley, Crankshaft
13471	90280-05005	Key(For Oil Pump Drive Spline)
13471	90105-14069	Bolt(For Crankshaft Pulley Set)
13471	90280-05010	Key(For Oil Pump Drive Spline)
13477	88451-20110	Pulley, Crankshaft, No.2
13521	13521-33010	Gear Or Sprocket, Crankshaft Timing
9161160814	91611-60814	Bolt

OEM	Part name	Category
11011-25010	Washer Set, Crankshaft Thrust	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
11701-71020-01	Bearing, Crankshaft	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
11701-71020-02	Bearing, Crankshaft	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
11701-71020-03	Bearing, Crankshaft	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
11704-71020	Bearing Set, Crankshaft (0.25)	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13011-71060	Ring Set, Piston	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13013-71060	Ring Set, Piston	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13014-71060	Ring Set, Piston	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13015-71060	Case Sub-Assy, Timing Gear	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13041-71011-06	Bearing, Connecting Rod	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13041-71011-07	Bearing, Connecting Rod	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13041-71011-08	Bearing, Connecting Rod	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13041-73010-06	Bearing, Connecting Rod	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13041-73010-07	Bearing, Connecting Rod	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13041-73010-08	Bearing, Connecting Rod	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13101-72010-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13101-72010-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13101-72010-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13101-73050-01	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13101-73050-02	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13101-73050-03	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13103-72010	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13103-73050	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13104-72010	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13104-73050	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13105-72010	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13105-73050	Piston Sub-Assy, W/pin	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13201-79045	Rod Sub-Assy, Connecting	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13201-79046	Rod Sub-Assy, Connecting	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13204-71011	Bearing Set, Connecting Rod	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13204-73010	Bearing Set, Connecting Rod (0.25)	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13265-29025	Bolt, Connecting Rod	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13408-71010	Pulley, Crankshaft	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13411-73010	Crankshaft	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13411-73900	Crankshaft	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
13521-33010	Gear Or Sprocket, Crankshaft Timing	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
88451-20110	Pulley, Crankshaft, No.2	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
90105-14069	Bolt(For Crankshaft Pulley Set)	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
90170-09001	Nut, Hexagon(For Connecting Rod Bolt)	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
90280-05005	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
90280-05010	Key(For Oil Pump Drive Spline)	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
91611-60814	Bolt	Crankshaft & Piston ([12.1991 - 12.1995] (9112-9512)3YPE)
