Search › Model › YS130

YS130

Toyota CROWN-MAJESTA · 1987 · 3,929 parts · 192 categories

3,929 items

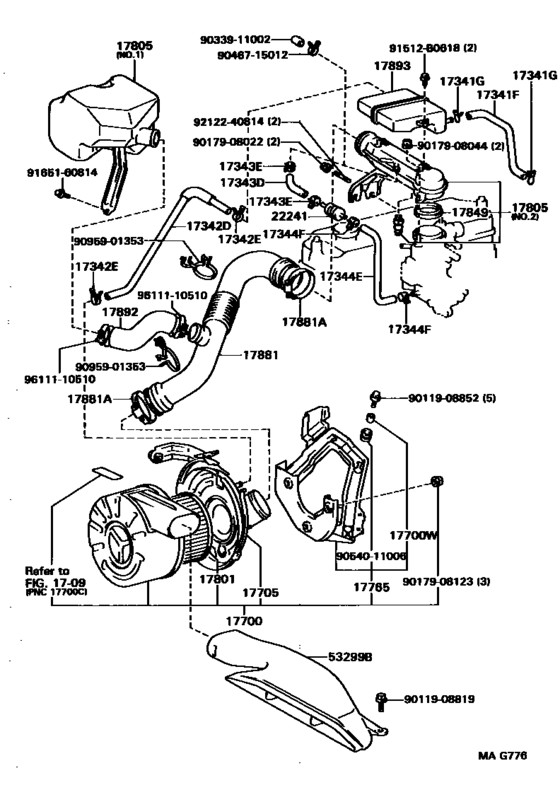

Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE) 42

#	OEM	Part name
17341	17341-73070	Hose, Air, No.1
17341	90467-18003	Clip Or Clamp(For Ventilation Hose)
17342	17342-73060	Hose, Air, No.2
17342	90467-13048	Clip, No.2(For Idle-Up Hose)
17342	96132-51300	Clip(For Ventilation Hose No.2)
17343	17343-73010	Hose, Air, No.3
17344	17344-73010	Hose, Air, No.4
17700	17700-73280	Cleaner Assy, Air
17700	17700-73901	Cleaner Assy, Air
17700	17706-54030	Stay, Air Cleaner, No.1
17700	90560-08026	Spacer(For Air Cleaner)
17700	17700-73250	Cleaner Assy, Air
17700	17700-73900	Cleaner Assy, Air
17705	17705-73130	Cap Sub-Assy, Air Cleaner
17705	17705-73110	Cap Sub-Assy, Air Cleaner
17801	17801-73020	Element Sub-Assy, Air Cleaner Filter
17805	17805-73130	Connector Sub-Assy, Intake Air
17805	17805-73160	Connector Sub-Assy, Intake Air
17805	17805-73140	Connector Sub-Assy, Intake Air
17849	17849-73010	Gasket, Intake Air Connector
17881	17881-73120	Hose, Air Cleaner, No.1
17881	90460-77002	Clamp Or Clip(For Air Hose, No.1)
17881	90460-88001	Clamp Or Clip(For Air Hose, No.1)
17892	17892-73020	Hose, Intake Air Resonator
17893	17893-73020	Resonator, Intake Air
22241	22241-70010	Limitter Vacuum
53299	53299-30230	Duct, Cool Air Intake
91512	91512-B0618	New Genuine Part
9011908819	90119-08819	New Genuine Part
9011908852	90119-08852	New Genuine Part
9011908852	90119-08C56	BOLT WWASHER
9017908022	90179-08022	NUT
9017908044	90179-08044	NUT
9017908123	90179-08123	Nut (For Front Wiper Arm Setting)
9033911002	90339-11002	Plug, No.1
9046715012	90467-15012	Clip Or Clamp(For Ventilation Hose)
9054011006	90540-11006	New Genuine Part
9095901353	90959-01353	New Genuine Part
9165160814	91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)
9165160814	91651-B0814	Bolt with washer
9212240814	92122-40814	Bolt, Stud(For Oil Pan)
9611110510	96111-10510	Clamp Or Clip, Sub Radiator Hose

OEM	Part name	Category
17341-73070	Hose, Air, No.1	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17342-73060	Hose, Air, No.2	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17343-73010	Hose, Air, No.3	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17344-73010	Hose, Air, No.4	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17700-73250	Cleaner Assy, Air	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17700-73280	Cleaner Assy, Air	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17700-73900	Cleaner Assy, Air	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17700-73901	Cleaner Assy, Air	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17705-73110	Cap Sub-Assy, Air Cleaner	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17705-73130	Cap Sub-Assy, Air Cleaner	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17706-54030	Stay, Air Cleaner, No.1	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17801-73020	Element Sub-Assy, Air Cleaner Filter	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17805-73130	Connector Sub-Assy, Intake Air	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17805-73140	Connector Sub-Assy, Intake Air	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17805-73160	Connector Sub-Assy, Intake Air	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17849-73010	Gasket, Intake Air Connector	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17881-73120	Hose, Air Cleaner, No.1	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17892-73020	Hose, Intake Air Resonator	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
17893-73020	Resonator, Intake Air	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
22241-70010	Limitter Vacuum	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
53299-30230	Duct, Cool Air Intake	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90119-08819	New Genuine Part	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90119-08852	New Genuine Part	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90119-08C56	BOLT WWASHER	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90179-08022	NUT	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90179-08044	NUT	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90179-08123	Nut (For Front Wiper Arm Setting)	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90339-11002	Plug, No.1	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90460-77002	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90460-88001	Clamp Or Clip(For Air Hose, No.1)	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90467-13048	Clip, No.2(For Idle-Up Hose)	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90467-15012	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90467-18003	Clip Or Clamp(For Ventilation Hose)	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90540-11006	New Genuine Part	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90560-08026	Spacer(For Air Cleaner)	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
90959-01353	New Genuine Part	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
91512-B0618	New Genuine Part	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
91651-60814	Clamp Or Clip, Hose(for Radiator Outlet No.1)	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
91651-B0814	Bolt with washer	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
92122-40814	Bolt, Stud(For Oil Pan)	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
96111-10510	Clamp Or Clip, Sub Radiator Hose	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
96132-51300	Clip(For Ventilation Hose No.2)	Air Cleaner ([08.1993 - 12.1995] (9308-9512)3YPE)
