Search › Model › YS120

YS120

Toyota CROWN-MAJESTA · 1983 · 4,615 parts · 184 categories
YS120 ×

← Back to categories

4,615 items

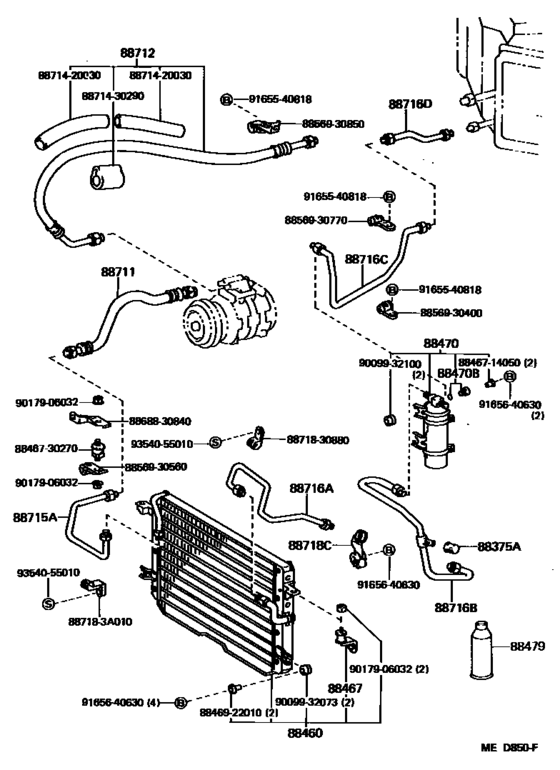

Heating & Air Conditioning - Cooler Piping ([08.1983 - ] (8308- )YS120..RHD) 45
#OEMPart name
88375 88375-20010 Cap, Service Valve (For Cooler Pipe)
88375 88375-30270 Cap, Cooler Compressor Service Valve
88460 88460-30470 Condenser Assy, Cooler
88460 88460-30510 Condenser Assy, Cooler
88467 88467-22060 Cushion, Cooler Condenser, No.1
88467 88467-30320 Cushion, Cooler Condenser, No.1
88470 88470-30470 Receiver & Dryer Assy, Cooler
88470 88475-12020 Bolt, Fuse
88479 90986-02001 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02004 Freon Gas, Air Conditioner (Drum, Cooler Refrigerant)
88479 90986-02005 New Genuine Part
88711 88711-30580 Hose, Cooler Refrigerant Discharge, No.1
88712 88712-30720 Hose, Cooler Refrigerant Suction, No.1
88715 88715-30330 Pipe, Cooler Refrigerant Discharge, A
88715 88705-30250 Pipe, Cooler Refrigerant Discharge, A
88716 88726-30720 Pipe, Cooler Refrigerant Liquid, A
88716 88726-30690 Pipe, Cooler Refrigerant Liquid, B
88716 88726-30891 Pipe, Cooler Refrigerant Liquid, B
88716 88726-30691 Pipe, Cooler Refrigerant Liquid, B
88716 88726-30700 Pipe, Cooler Refrigerant Liquid, C
88716 88726-30880 Pipe, Cooler Refrigerant Liquid, C
88716 88726-30881 Pipe, Cooler Refrigerant Liquid, C
88716 88726-30730 Pipe, Cooler Refrigerant Liquid, E
88718 88569-30830 Clamp(For Cooler Refrigerant Hose), No.1
887183 88718-3A010 Pipe, Cooler Refrigerant Suction, No.2
8846714050 88467-14050 Cushion, Cooler Condenser, No.1
8846730270 88467-30270 Cushion, Cooler Condenser, No.1
8846922010 88469-22010 Collar(For Radiator)
8856930400 88569-30400 Clamp (for Cooler Relay)
8856930560 88569-30560 Clamp, Piping, No.2
8856930770 88569-30770 Clamp (for Cooler Relay)
8856930850 88569-30850 Clamp (for Cooler Relay)
8868830840 88688-30840 Bracket, Cooler Diaphragm
8871420030 88714-20030 Insulator, Cooler Refrigerant Hose, No.2
8871430290 88714-30290 Insulator, Cooler Refrigerant Hose, No.1
8871830880 88718-30880 Pipe, Cooler Refrigerant Suction, No.2
9009932073 90099-32073 Grommet
9009932100 90099-32100 Cushion, Cooler Condenser, No.2
9017906032 90179-06032 Direct
9017906032 90179-06274 Nut
9165540818 91655-40818 New Genuine Part
9165540818 91651-60816 BOLT
9165640630 91656-40630 New Genuine Part
9165640630 91652-60630 New Genuine Part
9354055010 93540-55010 SCREW
