YS120

Toyota CROWN-MAJESTA · 1983 · 4,615 parts · 184 categories
YS120 ×

← Back to categories

4,615 items

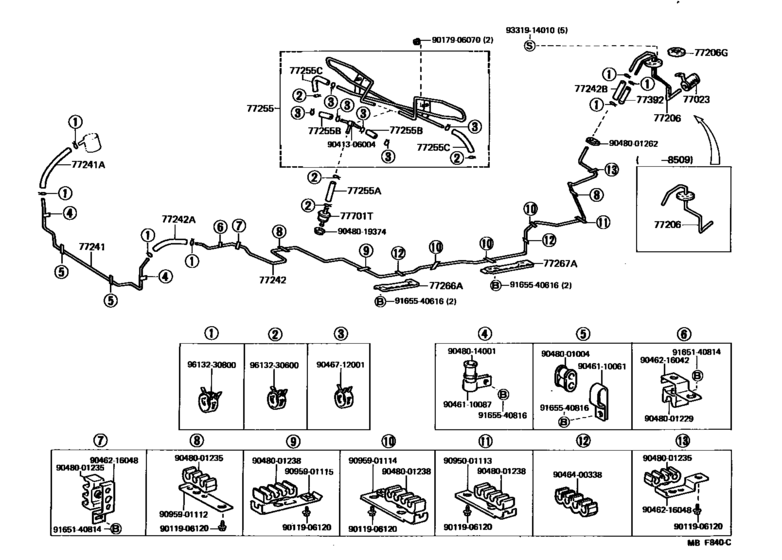

Fuel Tank & Tube ([08.1983 - ] (8308- )YS120) 63
#OEMPart name
77023 77023-12031 Filter Sub-Assy, Fuel Suction Tube
77206 77017-30130 Tube Sub-Assy, Fuel Tank Suction
77206 77017-30140 Tube Sub-Assy, Fuel Tank Suction
77206 77169-14020 Gasket, Fuel Tank Vent
77241 77251-30180 Tube, Fuel Main, No.1
77241 95332-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 95333-08030 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 95332-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 95333-08060 Hose Or Pipe, Fuel(For Injection Pump To Fuel Filter)
77241 95333-08032 Hose, Fuel, No.1 (For Main Tube, No.1)
77241 95337-08040 Hose, Fuel, No.2 (For Main Tube, No.1)
77242 77252-30170 Tube, Fuel Main, No.2
77242 95332-08020 Hose, Fuel Pipe, No.1
77242 95337-08020 Hose, Fuel(For Fuel Evaporative Separator) - FUEL, NO.1(FOR RETURN TUBE, NO.1)
77242 95333-08013 Hose, Fuel, No.2 (For Main Tube, No.1)
77255 77028-30070 Tube, Fuel Emission, No.2
77255 95332-06030 Hose(For Carburetor)
77255 95333-06030 Hose, Fuel
77255 95332-06010 Hose, Fuel Pipe, No.1
77255 95333-06010 Hose, Fuel
77255 95332-06020 Hose, Fuel(For Injection Pump To Fuel Pipe)
77255 95337-06020 Hose, Differential Pressure Control
77266 77266-30040 Protector, Fuel Tube, No.1
77267 77267-30050 Protector, Fuel Tube, No.2
77392 77392-30010 Cap, Fuel Return Tube
77701 90917-10020 Valve, Check (For Main Fuel Tank)
9011906120 90119-06120 BOLT
9017906070 90179-06070 Nut(For Steering Inter Shaft Dust Seal Cover)
9017906070 90179-06159 Nut, Rear Wiper Link Pivot, No.1
9041306004 90413-06004 Way, 3, No.1 (For Front Drive Shift)
9046110061 90461-10061 New Genuine Part
9046110087 90461-10087 New Genuine Part
9046216042 90462-16042 New Genuine Part
9046216042 90462-16064 New Genuine Part
9046216048 90462-16048 New Genuine Part
9046216048 90462-16061 New Genuine Part
9046400338 90464-00338 New Genuine Part
9046712001 90467-12001 Clip(For Carburetor Fuel Hose)
9046712001 96132-51100 Clip (For Hose)
9048001004 90480-01004 New Genuine Part
9048001229 90480-01229 New Genuine Part
9048001235 90480-01235 New Genuine Part
9048001238 90480-01238 New Genuine Part
9048001262 90480-01262 New Genuine Part
9048014001 90480-14001 New Genuine Part
9048019374 90480-19374 Grommet(For Compressor To Dryer Tube)
9095001113 90950-01113 New Genuine Part
9095901112 90959-01112 New Genuine Part
9095901112 90959-01309 New Genuine Part
9095901114 90959-01114 New Genuine Part
9095901114 90959-01314 New Genuine Part
9095901115 90959-01115 New Genuine Part
9095901115 90959-01315 New Genuine Part
9165140814 91651-40814 BOLT
9165140814 90080-11228 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9165540816 91655-40816 New Genuine Part
9165540816 91651-B0814 Bolt with washer
9331914010 93319-14010 SCREW
9613230600 96132-30600 Clip(For Actuator Hose)
9613230800 96132-30800 Clip, No.3(For Idle-Up Hose)
9613230800 96132-51300 Clip(For Ventilation Hose No.2)
