Search › Model › YS120
YS120

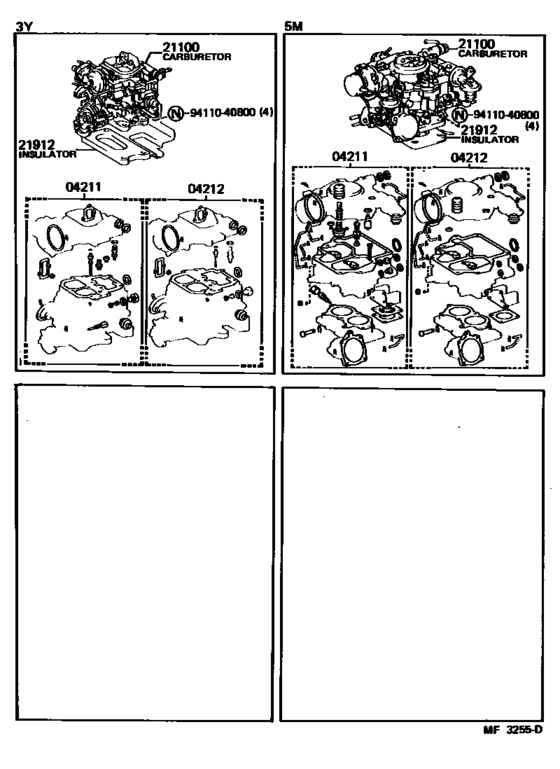

Carburetor Assembly ([08.1983 - ] (8308- )3Y) 11
| # | OEM | Part name |
|---|---|---|
| 4211 | 04211-73030 | Carburetor Kit |
| 4211 | 04211-73031 | Carburetor Kit |
| 4212 | 04212-71010 | Gasket Kit, Carburetor |
| 4212 | 04212-71021 | Gasket Kit, Carburetor |
| 4212 | 04212-71020 | Gasket Kit, Carburetor |
| 21100 | 21100-73060 | Carburetor Assy |
| 21912 | 21912-71010 | Insulator, Carburetor Heat |
| 21912 | 21912-72011 | Insulator, Carburetor Heat |
| 21912 | 21912-72010 | Insulator, Carburetor Heat |
| 9411040800 | 94110-40800 | Nut(For Steering Damper) |
| 9411040800 | 94130-00802 | Nut, No.1 (For Center Support Bearing) |
| OEM | Part name | Category |
|---|---|---|
| 04211-73030 | Carburetor Kit | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
| 04211-73031 | Carburetor Kit | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
| 04212-71010 | Gasket Kit, Carburetor | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
| 04212-71020 | Gasket Kit, Carburetor | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
| 04212-71021 | Gasket Kit, Carburetor | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
| 21100-73060 | Carburetor Assy | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
| 21912-71010 | Insulator, Carburetor Heat | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
| 21912-72010 | Insulator, Carburetor Heat | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
| 21912-72011 | Insulator, Carburetor Heat | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
| 94110-40800 | Nut(For Steering Damper) | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
| 94130-00802 | Nut, No.1 (For Center Support Bearing) | Carburetor Assembly ([08.1983 - ] (8308- )3Y) |
