Search › Model › YS120

YS120

Toyota CROWN-MAJESTA · 1983 · 4,615 parts · 184 categories

4,615 items

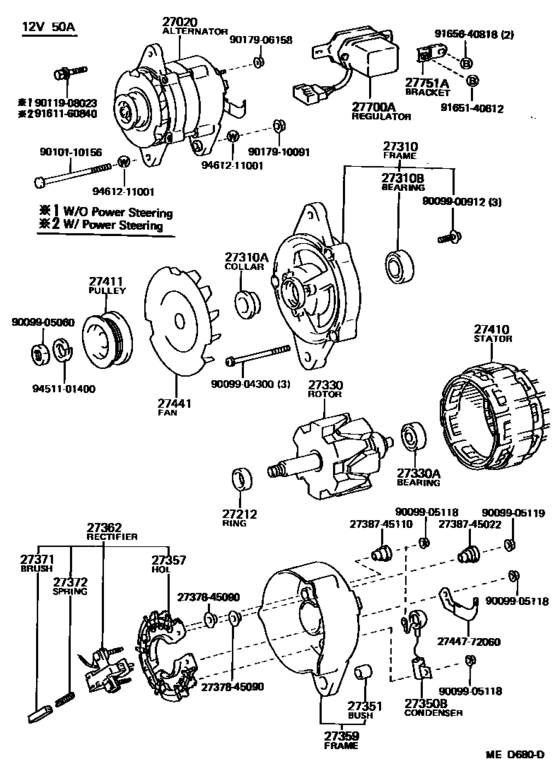

Alternator ([08.1983 - ] (8308- )3Y) 52

#	OEM	Part name
27020	27020-72010	Alternator Assy
27020	27020-72060	Alternator Assy
27212	27412-15150	Ring, Space(For Alternator Rotor)
27212	27412-45070	Ring, Space(For Alternator Rotor)
27310	27310-45110	Frame Assy, Drive End, Alternator
27310	27310-72040	Frame Assy, Drive End, Alternator
27310	27310-72041	Frame Assy, Drive End, Alternator
27310	27412-16030	Collar Or Nut(For Alternator Drive End Frame)
27310	27412-16040	Ring, Space(For Alternator Rotor)
27310	27412-31040	Collar Or Nut(For Alternator Drive End Frame)
27310	27412-63030	Collar Or Nut(For Alternator Drive End Frame)
27310	90099-10125	Bearing(For Alternator Drive End Frame)
27310	90099-10142	Bearing(For Alternator Drive End Frame)
27330	27330-45070	Rotor Assy, Alternator
27330	27330-16030	Rotor Assy, Alternator
27330	90099-10116	Bearing(For Alternator Rotor)
27350	90099-52065	Condenser, Alternator
27350	90099-52034	Condenser, Alternator
27351	27351-38051	Bush(For Alternator Rectifier End Frame)
27357	27357-15022	Holder, Alternator, W/rectifier
27359	27359-72010	Frame, Alternator Rectifier End
27362	27362-15022	Rectifier Assy, W/brush
27371	27371-31011	Brush, Alternator
27372	27372-31011	Spring, Alternator Brush
27410	27410-41080	Stator Assy, Alternator
27411	27411-72040	Pulley, Alternator
27441	27441-63030	Fan, Alternator
27700	27700-63040	Regulator Assy, Generator
27700	27700-63010	Regulator Assy, Generator
27700	27700-73010	Regulator Assy, Generator
27751	27751-73010	Bracket, Generator Regulator
2737845090	27378-45090	Insulator, Alternator, No.1
2738745022	27387-45022	Insulator, Terminal
2738745110	27387-45110	Insulator, Terminal
2744772060	27447-72060	Clip, Alternator Cord
9009900912	90099-00912	New Genuine Part
9009904300	90099-04300	New Genuine Part
9009905060	90099-05060	Collar Or Nut(For Alternator Drive End Frame)
9009905118	90099-05118	New Genuine Part
9009905119	90099-05119	New Genuine Part
9010110156	90101-10156	Bolt(For Alternator)
9011908023	90119-08023	BOLT
9017906158	90179-06158	Nut, Rear Wiper Link Pivot, No.2
9017910091	90179-10091	Nut (For Front Lower Ball Joint Setting)
9017910091	90179-10088	Nut
9161160840	91611-60840	BOLT
9165140612	91651-40612	BOLT
9165140612	90080-11225	New Genuine Part
9165640818	91656-40818	Clamp Or Clip, Hose(For Radiator Outlet No.1)
9165640818	91651-B0814	Bolt with washer
9451101400	94511-01400	WASHER
9461211001	94612-11001	Washer, Plate (For Center Support Bearing Housing)

OEM	Part name	Category
27020-72010	Alternator Assy	Alternator ([08.1983 - ] (8308- )3Y)
27020-72060	Alternator Assy	Alternator ([08.1983 - ] (8308- )3Y)
27310-45110	Frame Assy, Drive End, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
27310-72040	Frame Assy, Drive End, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
27310-72041	Frame Assy, Drive End, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
27330-16030	Rotor Assy, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
27330-45070	Rotor Assy, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
27351-38051	Bush(For Alternator Rectifier End Frame)	Alternator ([08.1983 - ] (8308- )3Y)
27357-15022	Holder, Alternator, W/rectifier	Alternator ([08.1983 - ] (8308- )3Y)
27359-72010	Frame, Alternator Rectifier End	Alternator ([08.1983 - ] (8308- )3Y)
27362-15022	Rectifier Assy, W/brush	Alternator ([08.1983 - ] (8308- )3Y)
27371-31011	Brush, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
27372-31011	Spring, Alternator Brush	Alternator ([08.1983 - ] (8308- )3Y)
27378-45090	Insulator, Alternator, No.1	Alternator ([08.1983 - ] (8308- )3Y)
27387-45022	Insulator, Terminal	Alternator ([08.1983 - ] (8308- )3Y)
27387-45110	Insulator, Terminal	Alternator ([08.1983 - ] (8308- )3Y)
27410-41080	Stator Assy, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
27411-72040	Pulley, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
27412-15150	Ring, Space(For Alternator Rotor)	Alternator ([08.1983 - ] (8308- )3Y)
27412-16030	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1983 - ] (8308- )3Y)
27412-16040	Ring, Space(For Alternator Rotor)	Alternator ([08.1983 - ] (8308- )3Y)
27412-31040	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1983 - ] (8308- )3Y)
27412-45070	Ring, Space(For Alternator Rotor)	Alternator ([08.1983 - ] (8308- )3Y)
27412-63030	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1983 - ] (8308- )3Y)
27441-63030	Fan, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
27447-72060	Clip, Alternator Cord	Alternator ([08.1983 - ] (8308- )3Y)
27700-63010	Regulator Assy, Generator	Alternator ([08.1983 - ] (8308- )3Y)
27700-63040	Regulator Assy, Generator	Alternator ([08.1983 - ] (8308- )3Y)
27700-73010	Regulator Assy, Generator	Alternator ([08.1983 - ] (8308- )3Y)
27751-73010	Bracket, Generator Regulator	Alternator ([08.1983 - ] (8308- )3Y)
90080-11225	New Genuine Part	Alternator ([08.1983 - ] (8308- )3Y)
90099-00912	New Genuine Part	Alternator ([08.1983 - ] (8308- )3Y)
90099-04300	New Genuine Part	Alternator ([08.1983 - ] (8308- )3Y)
90099-05060	Collar Or Nut(For Alternator Drive End Frame)	Alternator ([08.1983 - ] (8308- )3Y)
90099-05118	New Genuine Part	Alternator ([08.1983 - ] (8308- )3Y)
90099-05119	New Genuine Part	Alternator ([08.1983 - ] (8308- )3Y)
90099-10116	Bearing(For Alternator Rotor)	Alternator ([08.1983 - ] (8308- )3Y)
90099-10125	Bearing(For Alternator Drive End Frame)	Alternator ([08.1983 - ] (8308- )3Y)
90099-10142	Bearing(For Alternator Drive End Frame)	Alternator ([08.1983 - ] (8308- )3Y)
90099-52034	Condenser, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
90099-52065	Condenser, Alternator	Alternator ([08.1983 - ] (8308- )3Y)
90101-10156	Bolt(For Alternator)	Alternator ([08.1983 - ] (8308- )3Y)
90119-08023	BOLT	Alternator ([08.1983 - ] (8308- )3Y)
90179-06158	Nut, Rear Wiper Link Pivot, No.2	Alternator ([08.1983 - ] (8308- )3Y)
90179-10088	Nut	Alternator ([08.1983 - ] (8308- )3Y)
90179-10091	Nut (For Front Lower Ball Joint Setting)	Alternator ([08.1983 - ] (8308- )3Y)
91611-60840	BOLT	Alternator ([08.1983 - ] (8308- )3Y)
91651-40612	BOLT	Alternator ([08.1983 - ] (8308- )3Y)
91651-B0814	Bolt with washer	Alternator ([08.1983 - ] (8308- )3Y)
91656-40818	Clamp Or Clip, Hose(For Radiator Outlet No.1)	Alternator ([08.1983 - ] (8308- )3Y)
94511-01400	WASHER	Alternator ([08.1983 - ] (8308- )3Y)
94612-11001	Washer, Plate (For Center Support Bearing Housing)	Alternator ([08.1983 - ] (8308- )3Y)
