YS120

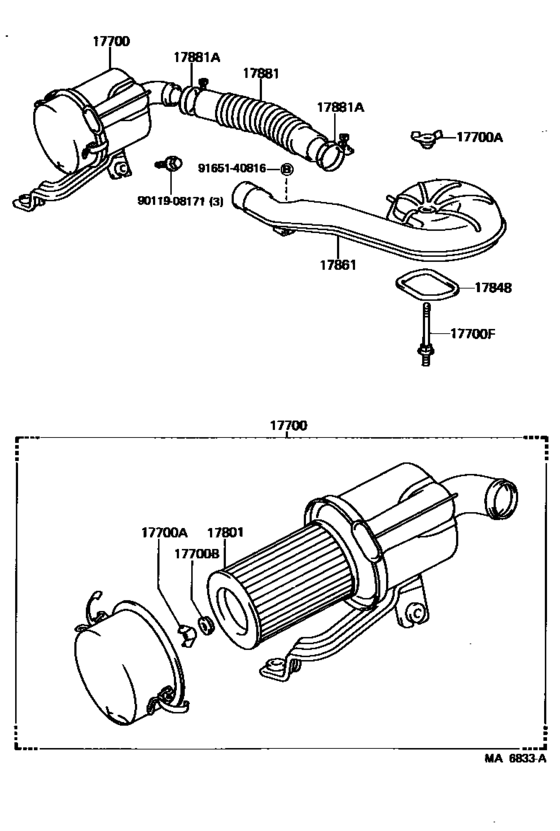

Air Cleaner ([08.1983 - ] (8308- )3Y) 12
| # | OEM | Part name |
|---|---|---|
| 17700 | 17700-73070 | Cleaner Assy, Air |
| 17700 | 90175-06003 | Nut, Wing(For Air Cleaner) |
| 17700 | 90210-08024 | Washer, Seal(For Air Cleaner) |
| 17700 | 90116-06024 | Bolt, Stud(For Air Cleaner Setting) |
| 17801 | 17801-31050 | Element Sub-Assy, Air Cleaner Filter |
| 17848 | 17848-35010 | Gasket, Air Cleaner To Carburetor |
| 17861 | 17860-73040 | Connector, Intake Air |
| 17881 | 17881-73040 | Hose, Air Cleaner, No.1 |
| 17881 | 96111-10780 | Clamp, Hose(For Air Connector) |
| 9011908171 | 90119-08171 | New Genuine Part |
| 9011908171 | 90119-08806 | BOLT WWASHER |
| 9165140816 | 91651-40816 | BOLT |
| OEM | Part name | Category |
|---|---|---|
| 17700-73070 | Cleaner Assy, Air | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 17801-31050 | Element Sub-Assy, Air Cleaner Filter | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 17848-35010 | Gasket, Air Cleaner To Carburetor | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 17860-73040 | Connector, Intake Air | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 17881-73040 | Hose, Air Cleaner, No.1 | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 90116-06024 | Bolt, Stud(For Air Cleaner Setting) | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 90119-08171 | New Genuine Part | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 90119-08806 | BOLT WWASHER | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 90175-06003 | Nut, Wing(For Air Cleaner) | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 90210-08024 | Washer, Seal(For Air Cleaner) | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 91651-40816 | BOLT | Air Cleaner ([08.1983 - ] (8308- )3Y) |
| 96111-10780 | Clamp, Hose(For Air Connector) | Air Cleaner ([08.1983 - ] (8308- )3Y) |
