Search › Model › YR31

YR31

Toyota VAN · 1986 · 4,988 parts · 171 categories

4,988 items

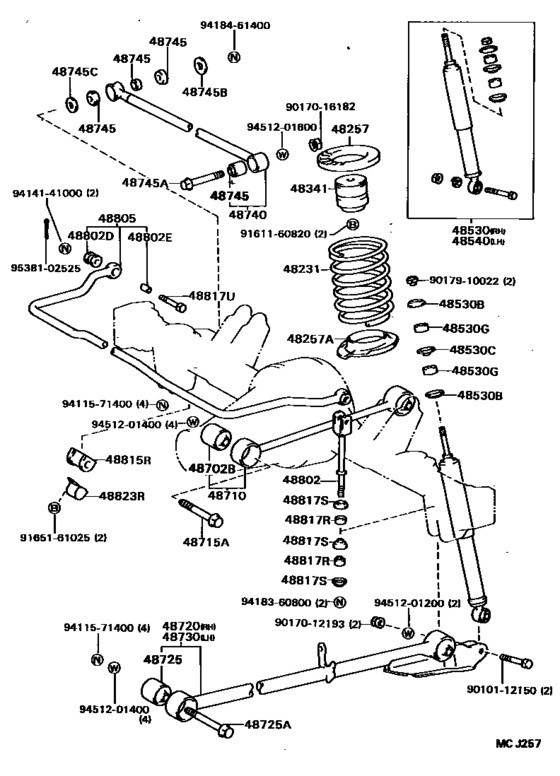

Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#) 54

#	OEM	Part name
48231	48231-28180	Spring, Coil, Rear
48257	48257-28011	Insulator, Rear Coil Spring
48257	48258-28010	Insulator, Rear Coil Spring, Lower
48341	48341-28040	Bumper, Rear Spring
48530	48531-80260	Absorber Assy, Shock, Rear Rh
48530	48531-80622	Absorber Assy, Shock, Rear Rh
48530	90948-02002	Retainer, Steering Damper Cushion
48530	90948-02045	Washer, Rear Shock Absorber Cushion, No.1
48530	90948-02050	Washer, Rear Shock Absorber Cushion, No.1
48530	90540-10002	Bush(For Rear Shock Absorber)
48530	90540-10005	Bush(For Rear Shock Absorber)
48702	48702-28031	Bush, Upper Control Arm
48702	48702-14020	Bush, Upper Control Arm
48710	48710-28030	Arm Assy, Upper Control
48715	90105-14016	Bolt, Hexagon(For Upper Control Arm)
48720	48720-28030	Arm Assy, Lower Control, Rh
48725	48702-28041	Bush, Lower Control Arm
48725	90105-14017	Bolt(For Lower Control Arm)
48730	48730-28030	Arm Assy, Lower Control, Lh
48740	48740-28030	Rod Assy, Rear Lateral Control
48740	48740-28020	Rod Assy, Rear Lateral Control
48745	48706-28010	Bush Sub-Assy, Rear Lateral Control Rod
48745	90385-20001	Bush Sub-Assy, Front Lateral Control Rod
48745	90386-20001	Bush Sub-Assy, Front Lateral Control Rod
48745	90105-16006	Bolt, Hexagon(For Lateral Control Rod)
48745	90201-15019	Washer, Plate, No.1(For Rear Lateral Control Rod)
48745	94612-12000	Washer, Plate, No.2(For Rear Lateral Control Rod)
48802	48802-28020	Link Sub-Assy, Stabilizer
48802	90385-11021	Bush, Stabilizer Link
48802	90560-10275	Spacer(For Rear Stabilizer Bar)
48805	48805-28010	Bar Sub-Assy, Rear Stabilizer
48815	48815-30060	Bush, Front Stabilizer Bar, No.1
48817	48817-12010	Cushion, Stabilizer
48817	90948-02024	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817	90948-02025	Retainer, Cushion, No.1(For Front Stabilizer Bar)
48817	90102-10015	Bolt, Stabilizer Rear Bar
48823	48823-28020	Cover, Stabilizer Link(For Front)
9010112150	90101-12150	New Genuine Part
9017012193	90170-12193	New Genuine Part
9017016182	90170-16182	New Genuine Part
9017910022	90179-10022	Nut(For Rear Support To Rear Shock Absorber)
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9165161025	91651-61025	Bolt with washer
9411571400	94115-71400	Nut, Timer Round
9411571400	94130-01402	Nut, Timer Round
9414141000	94141-41000	NUT
9418360800	94183-60800	Nut(For Front Stabilizer Bar)
9418461400	94184-61400	Nut(For Idler Arm Support)
9451201200	94512-01200	Washer
9451201400	94512-01400	Washer(For Rear Spring U Bolt)
9451201600	94512-01600	Washer(For Center Arm Shaft)
9451201600	90204-16001	Washer(For Center Arm Shaft)
9538102525	95381-02525	PINCOTTER

OEM	Part name	Category
48231-28180	Spring, Coil, Rear	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48257-28011	Insulator, Rear Coil Spring	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48258-28010	Insulator, Rear Coil Spring, Lower	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48341-28040	Bumper, Rear Spring	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48531-80260	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48531-80622	Absorber Assy, Shock, Rear Rh	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48702-14020	Bush, Upper Control Arm	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48702-28031	Bush, Upper Control Arm	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48702-28041	Bush, Lower Control Arm	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48706-28010	Bush Sub-Assy, Rear Lateral Control Rod	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48710-28030	Arm Assy, Upper Control	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48720-28030	Arm Assy, Lower Control, Rh	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48730-28030	Arm Assy, Lower Control, Lh	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48740-28020	Rod Assy, Rear Lateral Control	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48740-28030	Rod Assy, Rear Lateral Control	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48802-28020	Link Sub-Assy, Stabilizer	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48805-28010	Bar Sub-Assy, Rear Stabilizer	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48815-30060	Bush, Front Stabilizer Bar, No.1	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48817-12010	Cushion, Stabilizer	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
48823-28020	Cover, Stabilizer Link(For Front)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90101-12150	New Genuine Part	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90102-10015	Bolt, Stabilizer Rear Bar	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90105-14016	Bolt, Hexagon(For Upper Control Arm)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90105-14017	Bolt(For Lower Control Arm)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90105-16006	Bolt, Hexagon(For Lateral Control Rod)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90170-12193	New Genuine Part	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90170-16182	New Genuine Part	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90179-10022	Nut(For Rear Support To Rear Shock Absorber)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90201-15019	Washer, Plate, No.1(For Rear Lateral Control Rod)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90204-16001	Washer(For Center Arm Shaft)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90385-11021	Bush, Stabilizer Link	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90385-20001	Bush Sub-Assy, Front Lateral Control Rod	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90386-20001	Bush Sub-Assy, Front Lateral Control Rod	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90540-10002	Bush(For Rear Shock Absorber)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90540-10005	Bush(For Rear Shock Absorber)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90560-10275	Spacer(For Rear Stabilizer Bar)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90948-02002	Retainer, Steering Damper Cushion	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90948-02024	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90948-02025	Retainer, Cushion, No.1(For Front Stabilizer Bar)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90948-02045	Washer, Rear Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
90948-02050	Washer, Rear Shock Absorber Cushion, No.1	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
91611-60820	Bolt(For Transaxle & Engine Setting)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
91611-G0820	Bolt	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
91651-61025	Bolt with washer	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
94115-71400	Nut, Timer Round	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
94130-01402	Nut, Timer Round	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
94141-41000	NUT	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
94183-60800	Nut(For Front Stabilizer Bar)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
94184-61400	Nut(For Idler Arm Support)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
94512-01200	Washer	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
94512-01400	Washer(For Rear Spring U Bolt)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
94512-01600	Washer(For Center Arm Shaft)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
94612-12000	Washer, Plate, No.2(For Rear Lateral Control Rod)	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)
95381-02525	PINCOTTER	Rear Spring & Shock Absorber ([08.1988 - ] (8808- )YR3#)

Source: Public OEM parts-catalog data
Variants: 2 / 24
Category: 171
Collected: 2026-08-04
