Search › Model › YR31

YR31

Toyota VAN · 1986 · 4,988 parts · 171 categories

4,988 items

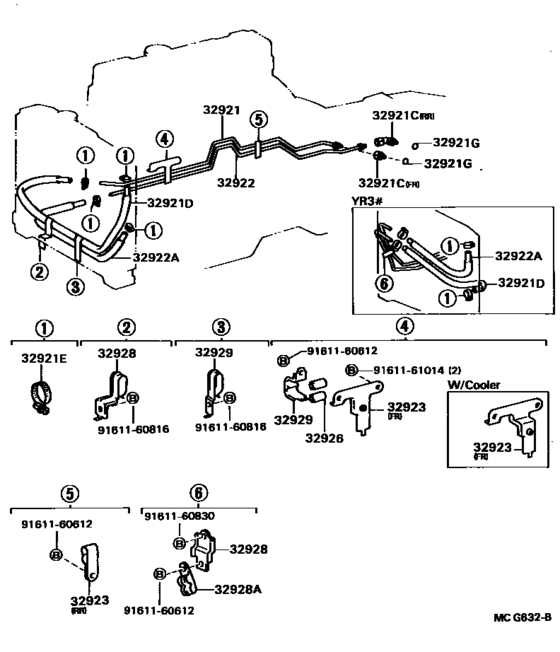

Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC) 24

#	OEM	Part name
32921	32921-28050	Tube, Oil Cooler Inlet, No.1
32921	90407-14008	Union(For Oil Cooler Tube)
32921	90407-16010	Union(For Oil Cooler Tube)
32921	32941-28120	Hose(For Oil Cooler Inlet)
32921	32941-28121	Hose(For Oil Cooler Inlet)
32921	90467-13039	Clamp, Hose
32921	96135-51300	Clamp, Hose
32921	90301-10189	Ring, O(For Oil Cooler Tube Union)
32922	32922-28050	Tube, Oil Cooler Outlet, No.1
32922	32942-28130	Hose(For Oil Cooler Outlet)
32922	32942-28131	Hose(For Oil Cooler Outlet)
32923	32923-28050	Clamp, Automatic Transmission Oil Cooler Tube
32923	32923-28060	Clamp, Automatic Transmission Oil Cooler Tube
32923	90461-08628	Clamp, Automatic Transmission Oil Cooler Tube
32926	32926-30020	Cushion, Oil Cooler Tube(Atm)
32928	32928-28010	Clamp, Automatic Transmission Oil Cooler Tube, No.4
32929	32929-28010	Clamp, Automatic Transmission Oil Cooler Tube
9161160612	91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)
9161160612	91611-G0612	Bolt
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160830	91611-60830	Bolt(For Clutch Release Cylinder Setting)
9161161014	91611-61014	New Genuine Part
9161161014	91612-B1014	BOLT WWASHER

OEM	Part name	Category
32921-28050	Tube, Oil Cooler Inlet, No.1	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
32922-28050	Tube, Oil Cooler Outlet, No.1	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
32923-28050	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
32923-28060	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
32926-30020	Cushion, Oil Cooler Tube(Atm)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
32928-28010	Clamp, Automatic Transmission Oil Cooler Tube, No.4	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
32929-28010	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
32941-28120	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
32941-28121	Hose(For Oil Cooler Inlet)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
32942-28130	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
32942-28131	Hose(For Oil Cooler Outlet)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
90301-10189	Ring, O(For Oil Cooler Tube Union)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
90407-14008	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
90407-16010	Union(For Oil Cooler Tube)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
90461-08628	Clamp, Automatic Transmission Oil Cooler Tube	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
90467-13039	Clamp, Hose	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
91611-60612	Bolt(For Dust Cover To Steering Knuckle Arm Setting)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
91611-60830	Bolt(For Clutch Release Cylinder Setting)	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
91611-61014	New Genuine Part	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
91611-B0816	Bolt	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
91611-G0612	Bolt	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
91612-B1014	BOLT WWASHER	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
96135-51300	Clamp, Hose	Oil Cooler & Tube (Atm) ([08.1988 - ] (8808- )4FC)
