YR31

Toyota VAN · 1986 · 4,988 parts · 171 categories
YR31 ×

← Back to categories

4,988 items

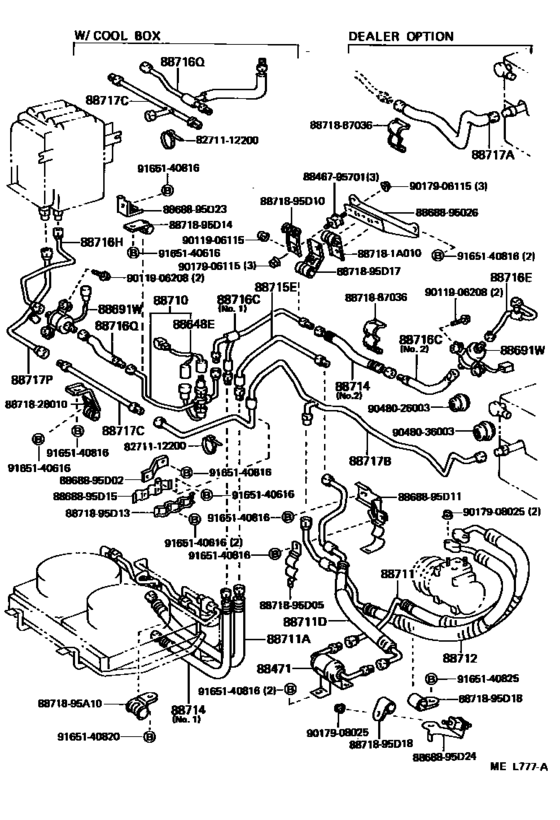

Heating & Air Conditioning - Cooler Piping ([08.1988 - ] PIPING (8808- )YR31) 56
#OEMPart name
88471 88471-95D02 Tank, Receiver Air Conditioner
88648 88648-87018 Wiring, Cooler
88648 88648-95D02 Wiring, Cooler
88691 88690-28040 Valve, Magnet
88691 88691-87001 Valve, Magnet
88710 88710-95D04 Tube Assy, Air Conditioner - AIRCONDITIONER
88710 88710-95D05 Tube Assy, Air Conditioner - AIRCONDITIONER
88711 88711-95D11 Hose, Cooler Refrigerant Discharge, No.1
88711 88711-95D10 Hose, Cooler Refrigerant Discharge, No.2
88711 88711-95D12 Hose, Cooler Refrigerant Discharge, No.4
88712 88712-95D03 Hose, Cooler Refrigerant Suction, No.1
88714 88721-95D02 Hose, Cooler Refrigerant Liquid, No.1
88714 88721-95D07 Hose, Cooler Refrigerant Liquid, No.1
88715 88715-95D09 Pipe, Cooler Refrigerant Discharge, E
88716 88716-87027 Pipe, Cooler Refrigerant Liquid, C
88716 88716-95D09 Pipe, Cooler Refrigerant Liquid, C
88716 88716-28142 Pipe, Cooler Refrigerant Liquid, E
88716 88716-28180 Pipe, Cooler Refrigerant Liquid, H
88716 88716-28190 Pipe, Cooler Refrigerant Liquid, H
88716 88716-95D22 Pipe, Cooler Refrigerant Liquid, Q
88716 88716-95D23 Pipe, Cooler Refrigerant Liquid, Q
88717 88717-95D12 Pipe, Cooler Refrigerant Suction, B
88717 88717-95D16 Pipe, Cooler Refrigerant Suction, B
88717 88717-28100 Pipe, Cooler Refrigerant Suction, C
88717 88717-28120 Pipe, Cooler Refrigerant Suction, C
88717 88717-28061 Pipe, Cooler Refrigerant Suction, P
887181 88718-1A010 Pipe, Cooler Refrigerant Suction, No.2
8868895 88688-95D02 Bracket, Cooler Diaphragm
8868895 88688-95D11 Bracket, Cooler Diaphragm
8868895 88688-95D15 Bracket, Cooler Diaphragm
8868895 88688-95D23 Bracket, Cooler Diaphragm
8868895 88688-95D24 Bracket, Cooler Diaphragm
8871895 88718-95A10 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95D05 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95D10 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95D13 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95D14 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95D17 Pipe, Cooler Refrigerant Suction, No.2
8871895 88718-95D18 Pipe, Cooler Refrigerant Suction, No.2
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
8846795701 88467-95701 Insulator, Cooler Condenser Mounting
8868895026 88688-95026 Bracket, Cooler Diaphragm
8871828010 88718-28010 Pipe, Cooler Refrigerant Suction, No.2
8871887036 88718-87036 Pipe, Cooler Refrigerant Suction, No.2
9011906115 90119-06115 BOLT
9011906208 90119-06208 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9017908025 90179-08025 Nut, Cap(For Cylinder Head Cover)
9048026003 90480-26003 Grommet (For Cooler Unit)
9048036003 90480-36003 Grommet (For Cooler Unit)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165140816 91651-40816 BOLT
9165140820 91651-40820 Bolt
9165140825 91651-40825 Bolt(For Clutch Release Cylinder Setting)
