YR31

Toyota VAN · 1986 · 4,988 parts · 171 categories
YR31 ×

← Back to categories

4,988 items

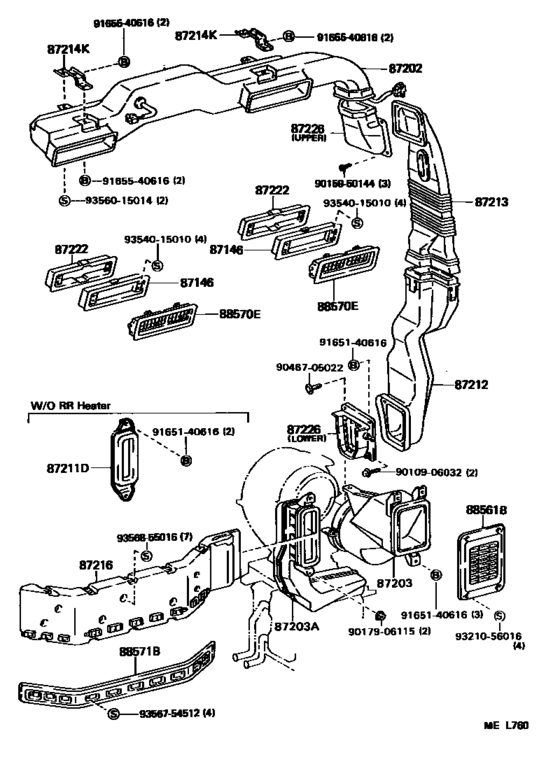

Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] REAR DUCT (8808- )) 38
#OEMPart name
87203 87202-87001 Duct, Heater Air, Rear No.1
87203 87212-87008 Duct Assy, Heater Air, Rear
87203 87212-87007 Duct Assy, Heater Air, Rear
87211 55077-87002 Cover, Heater Air Duct Hole
87212 87212-87003 Duct, Air, Rear No.1
87213 87213-87001 Duct, Air, Rear No.2
87216 87213-87002 Duct, Heater Interior Air (To Rear)
87216 87213-28010 Duct, Heater Interior Air (To Rear)
87226 87226-87003 Adapter, Air Duct
87226 88565-87001-03 Adapter, Air Duct
87226 88565-87001-04 Adapter, Air Duct
87226 88565-87001-06 Adapter, Air Duct
88561 88560-87002-13 Grille, Cooler Air Inlet
88561 88560-87002-B0 Grille, Cooler Air Inlet
88561 88560-87002-14 Grille, Cooler Air Inlet
88561 88560-87002-16 Grille, Cooler Air Inlet
88570 88570-28010-03 Grille Assy, Air Outlet
88570 88570-28010-04 Grille Assy, Air Outlet
88570 88570-28010-06 Grille Assy, Air Outlet
88571 88571-87001-13 Grille, Air Outlet
88571 88571-87001-B0 Grille, Air Outlet
88571 88571-87001-14 Grille, Air Outlet
88571 88571-87001-16 Grille, Air Outlet
9010906032 90109-06032 New Genuine Part
9015950144 90159-50144 SCREW
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9046705022 90467-05022 New Genuine Part
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9165540616 91655-40616 Bolt
9165540616 91651-60614 Bolt
9321056016 93210-56016 New Genuine Part
9354015010 93540-15010 SCREW, TAPPING
9356015014 93560-15014 SCREW
9356754512 93567-54512 SCREW
9356754512 93568-54512 SCREW
9356855016 93568-55016 Screw
