Search › Model › YR31

YR31

Toyota VAN · 1986 · 4,988 parts · 171 categories

← Back to categories

4,988 items

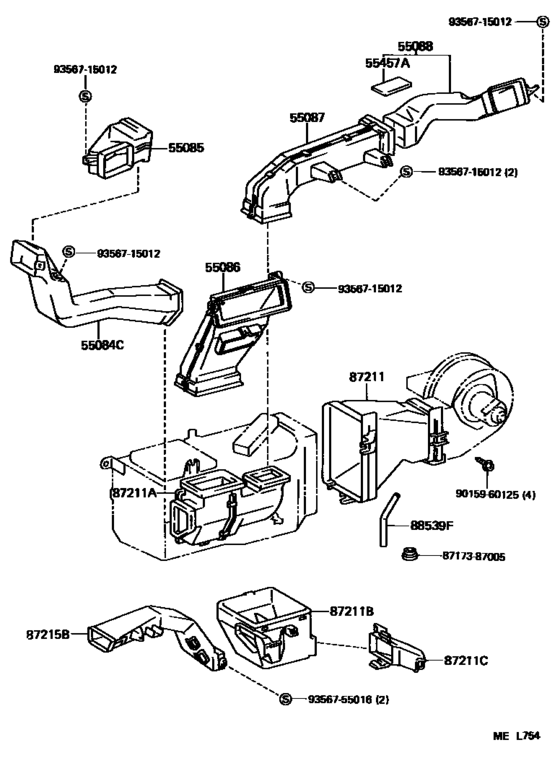

Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- )) 19

#	OEM	Part name
55084	55084-28020	Duct Sub-Assy, Heater To Register, No.1
55085	55085-28020	Duct Sub-Assy, Heater To Register, No.2
55086	55086-28030	Duct Sub-Assy, Heater To Register, No.3
55087	55087-28020	Duct Sub-Assy, Heater To Register, No.4
55088	55088-28010	Duct Sub-Assy, Heater To Register, No.5
55457	55457-22030	Spacer, Instrument Panel Safety Pad
87211	87201-28020	Duct, Air, No.1
87211	87201-28010	Duct, Air, No.2
87211	87201-28030	Duct, Air, No.3
87211	87211-28010	Duct, Air, No.4
87215	87211-28021	Duct, Air, Side No.3 Lh - AIR, SIDE NO.3 RH
88539	88539-12010	Hose, Cooler Unit Drain, No.1
8717387005	87173-87005	Protector, Water Valve, Heater
9015960125	90159-60125	New Genuine Part
9015960125	90159-60383	SCREW WWASHER
9356715012	93567-15012	New Genuine Part
9356715012	93568-55012	SCREW
9356755016	93567-55016	Screw
9356755016	93568-55016	Screw

OEM	Part name	Category
55084-28020	Duct Sub-Assy, Heater To Register, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
55085-28020	Duct Sub-Assy, Heater To Register, No.2	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
55086-28030	Duct Sub-Assy, Heater To Register, No.3	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
55087-28020	Duct Sub-Assy, Heater To Register, No.4	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
55088-28010	Duct Sub-Assy, Heater To Register, No.5	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
55457-22030	Spacer, Instrument Panel Safety Pad	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
87173-87005	Protector, Water Valve, Heater	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
87201-28010	Duct, Air, No.2	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
87201-28020	Duct, Air, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
87201-28030	Duct, Air, No.3	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
87211-28010	Duct, Air, No.4	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
87211-28021	Duct, Air, Side No.3 Lh - AIR, SIDE NO.3 RH	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
88539-12010	Hose, Cooler Unit Drain, No.1	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
90159-60125	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
90159-60383	SCREW WWASHER	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
93567-15012	New Genuine Part	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
93567-55016	Screw	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
93568-55012	SCREW	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
93568-55016	Screw	Heating & Air Conditioning - Control & Air Duct ([08.1988 - ] FRONT DUCT (8808- ))
