YR31

Toyota VAN · 1986 · 4,988 parts · 171 categories
YR31 ×

← Back to categories

4,988 items

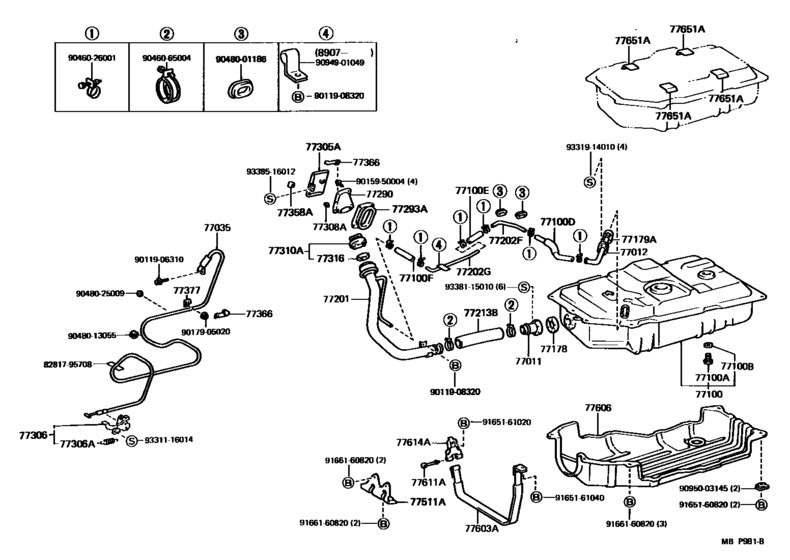

Fuel Tank & Tube ([08.1988 - ] (8808- )YR3#) 63
#OEMPart name
77011 77011-13010 Pipe Sub-Assy, Fuel Tank Filler, Lower
77012 77012-28020 Tube Sub-Assy, Fuel Tank Breather
77035 77035-28010 Cable Sub-Assy, Fuel Lid Lock Control
77100 77001-28300 Tank Assy, Fuel
77100 90105-12116 Plug(For Fuel Tank)
77100 90430-12245 Gasket(For Fuel Tank)
77100 77259-28030 Hose, Fuel, No.1 (For Breather Tube)
77100 90445-24010 Hose, Fuel, No.1(For Fuel Tank)
77100 90445-24029 Hose, Fuel, No.2 (For Breather Tube)
77178 77178-13020 Gasket, Fuel Tank Filler Pipe, Lower
77179 77179-14030 Retainer, Fuel Tank Mounting, Front
77201 77201-28070 Pipe Sub-Assy, Fuel Tank Inlet
77202 77222-28030 Tube, Fuel, No.2 (For Breather Tube)
77202 77014-28010 Tube, Fuel Tank Breather, No.3
77202 77223-28030 Tube, Fuel, No.3 (For Breather Tube)
77202 77223-28040 Tube, Fuel, No.2 (For Breather Tube)
77213 77019-28011 Hose, Fuel Tank Sub Inlet - FUEL TANK TO FILLER PIPE
77290 77290-28010 Shield Assy, Fuel Tank Filler Pipe
77293 77293-28010 Shield, Fuel Tank Filler Pipe, No.3
77305 77305-87006 Lid Sub-Assy, Fuel Filler Opening
77306 77306-28010 Lever Sub-Assy, Fuel Lid Lock Open
77306 90506-09004 Spring, Tension(For Luggage Door Lock Open Lever)
77308 90541-06001 Cushion(For Fuel Inlet Box Cover)
77310 77310-12140 Cap Assy, Fuel Tank
77316 77316-16010 Gasket (For Fuel Tank Cap)
77358 77358-87001 Stopper, Fuel Filler Opening Lid
77358 77358-87002 Stopper, Fuel Filler Opening Lid
77358 77358-87003 Stopper, Fuel Filler Opening Lid
77366 77366-87001 Spring, Fuel Filler Opening Lid Hinge
77377 77377-28010 Retainer, Fuel Filler Opening Lid Lock
77511 77511-28060 Bracket, Fuel Tank
77603 77603-28060 Band Sub-Assy, Fuel Tank, No.2
77606 77161-28010 Protector, Fuel Tank, Lower
77611 77653-28010 Pin (For Fuel Tank Band)
77614 77614-28010 Band, Fuel Tank, No.2 Rh
77651 77651-28010 Cushion, Fuel Tank, No.1
77651 77651-28020 Cushion, Fuel Tank, No.1
8281795708 82817-95708 Protector, Wiring Harness, No.15
9011906310 90119-06310 New Genuine Part
9011906310 90119-06428 New Genuine Part
9011908320 90119-08320 Screw Or Bolt(for Valve Rocker Shaft Lock)
9011908320 91611-B0816 Bolt
9015950004 90159-50004 New Genuine Part
9017905020 90179-05020 NUT
9017905020 90179-05011 NUT
9046026001 90460-26001 Clamp(For Oil Reservoir To Pump Hose)
9046065004 90460-65004 Clamp Or Clip(For Air Hose, No.1)
9046065004 90460-65002 Clamp Or Clip(For Air Hose, No.1)
9048001186 90480-01186 New Genuine Part
9048013055 90480-13055 Grommet, Dash Panel, No.3
9048025009 90480-25009 New Genuine Part
9094901049 90949-01049 New Genuine Part
9095003145 90950-03145 New Genuine Part
9165160820 91651-60820 Bolt, Radiator Side Support Plate
9165160820 91651-B0820 Bolt, Radiator Side Support Plate
9165161020 91651-61020 Bolt, No.1 (For Center Support Bearing)
9165161040 91651-61040 Bolt (For Transfer Case)
9166160820 91661-60820 New Genuine Part
9166160820 91661-B0820 Bolt
9331116014 93311-16014 Screw
9331914010 93319-14010 SCREW
9338115010 93381-15010 SCREW
9338516012 93385-16012 New Genuine Part
