YR31

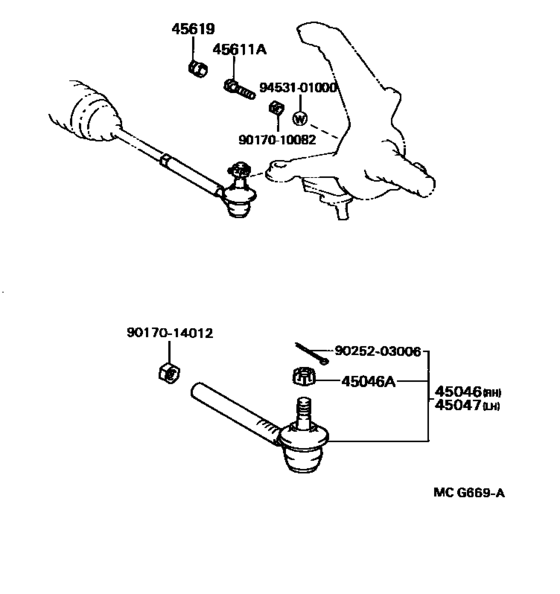

Front Steering Gear & Link ([08.1988 - ] (8808- )YR3#) 8
| # | OEM | Part name |
|---|---|---|
| 45046 | 45046-29195 | End Sub-Assy, Tie Rod, Rh |
| 45046 | 90171-14042 | Nut, Castle(For Pitman Arm) |
| 45611 | 90106-10032 | Bolt, Round Hexagon (For Steering Knuckle Stopper) |
| 45619 | 45619-14020 | Cover, Front Knuckle Stopper |
| 9017010082 | 90170-10082 | Nut, Hexagon (For Control Rod Setting) |
| 9017014012 | 90170-14012 | Nut, Rack End Lock |
| 9025203006 | 90252-03006 | New Genuine Part |
| 9453101000 | 94531-01000 | WASHER |
| OEM | Part name | Category |
|---|---|---|
| 45046-29195 | End Sub-Assy, Tie Rod, Rh | Front Steering Gear & Link ([08.1988 - ] (8808- )YR3#) |
| 45619-14020 | Cover, Front Knuckle Stopper | Front Steering Gear & Link ([08.1988 - ] (8808- )YR3#) |
| 90106-10032 | Bolt, Round Hexagon (For Steering Knuckle Stopper) | Front Steering Gear & Link ([08.1988 - ] (8808- )YR3#) |
| 90170-10082 | Nut, Hexagon (For Control Rod Setting) | Front Steering Gear & Link ([08.1988 - ] (8808- )YR3#) |
| 90170-14012 | Nut, Rack End Lock | Front Steering Gear & Link ([08.1988 - ] (8808- )YR3#) |
| 90171-14042 | Nut, Castle(For Pitman Arm) | Front Steering Gear & Link ([08.1988 - ] (8808- )YR3#) |
| 90252-03006 | New Genuine Part | Front Steering Gear & Link ([08.1988 - ] (8808- )YR3#) |
| 94531-01000 | WASHER | Front Steering Gear & Link ([08.1988 - ] (8808- )YR3#) |
