Search › Model › YR31

YR31

Toyota VAN · 1986 · 4,988 parts · 171 categories

4,988 items

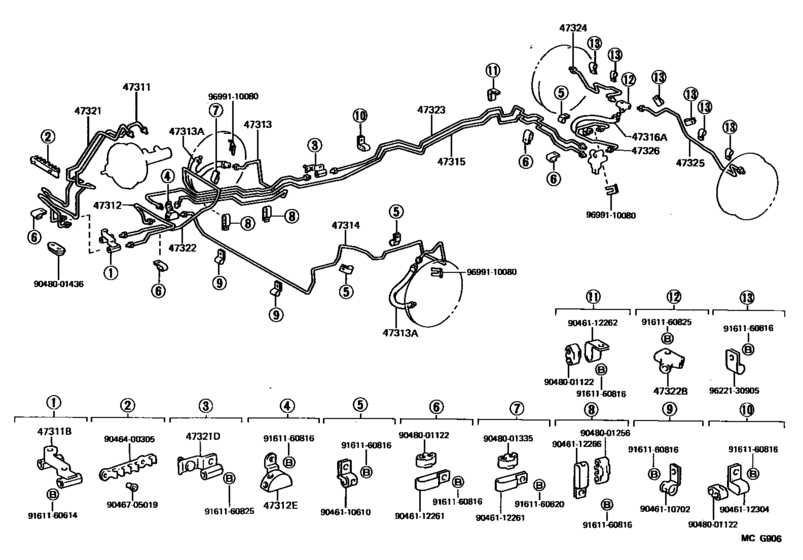

Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#) 43

#	OEM	Part name
47311	47311-28200	Tube, Front Brake, No.1
47311	90412-10097	Way, No.1(For Front Brake Tube)
47312	47312-28110	Tube, Front Brake, No.2
47312	90414-10014	Way, No.2(For Front Brake Tube)
47313	47313-28070	Tube, Front Brake, No.3
47313	96940-33056	Hose, Flexible, No.1(For Front)
47313	96940-33055	Hose, Flexible, No.1(For Front)
47314	47314-28090	Tube, Front Brake, No.4
47315	47315-28080	Tube, Front Brake, No.5
47316	90947-02523	Hose, Flexible(For Rear Brake Tube)
47316	90947-02492	Hose, Flexible, No.1(For Front)
47316	96940-33606	Hose, Flexible(For Rear Brake Tube)
47321	47321-28200	Tube, Rear Brake, No.1
47321	90412-10133	Way, No.1(For Rear Brake Tube)
47322	47322-28140	Tube, Rear Brake, No.2
47322	90413-10130	Way, No.2(For Rear Brake Tube)
47323	47323-28170	Tube, Rear Brake, No.3
47324	47324-28110	Tube, Rear Brake, No.4
47325	47325-28110	Tube, Rear Brake, No.5
47326	47326-28060	Tube, Rear Brake, No.6
9046110610	90461-10610	New Genuine Part
9046110702	90461-10702	New Genuine Part
9046112261	90461-12261	New Genuine Part
9046112262	90461-12262	New Genuine Part
9046112266	90461-12266	New Genuine Part
9046112304	90461-12304	New Genuine Part
9046400305	90464-00305	New Genuine Part
9046705019	90467-05019	New Genuine Part
9048001122	90480-01122	Grommet(For Brake Tube)
9048001256	90480-01256	New Genuine Part
9048001335	90480-01335	Clamp(For Resistive Cord)
9048001335	90464-00082	Clamp(For Resistive Cord)
9048001436	90480-01436	Grommet, No.1(For Front Brake Tube)
9161160614	91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160614	91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)
9161160816	91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)
9161160816	91611-B0816	Bolt
9161160820	91611-60820	Bolt(For Transaxle & Engine Setting)
9161160820	91611-G0820	Bolt
9161160825	91611-60825	Bolt(For Head To Camshaft Bearing Cap)
9161160825	91611-B0825	Bolt(For Clutch Release Cylinder Setting)
9622130905	96221-30905	CLAMP
9699110080	96991-10080	CLIP

OEM	Part name	Category
47311-28200	Tube, Front Brake, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
47312-28110	Tube, Front Brake, No.2	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
47313-28070	Tube, Front Brake, No.3	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
47314-28090	Tube, Front Brake, No.4	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
47315-28080	Tube, Front Brake, No.5	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
47321-28200	Tube, Rear Brake, No.1	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
47322-28140	Tube, Rear Brake, No.2	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
47323-28170	Tube, Rear Brake, No.3	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
47324-28110	Tube, Rear Brake, No.4	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
47325-28110	Tube, Rear Brake, No.5	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
47326-28060	Tube, Rear Brake, No.6	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90412-10097	Way, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90412-10133	Way, No.1(For Rear Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90413-10130	Way, No.2(For Rear Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90414-10014	Way, No.2(For Front Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90461-10610	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90461-10702	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90461-12261	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90461-12262	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90461-12266	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90461-12304	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90464-00082	Clamp(For Resistive Cord)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90464-00305	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90467-05019	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90480-01122	Grommet(For Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90480-01256	New Genuine Part	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90480-01335	Clamp(For Resistive Cord)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90480-01436	Grommet, No.1(For Front Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90947-02492	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
90947-02523	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
91611-60614	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
91611-60816	Screw Or Bolt(For Valve Rocker Shaft Lock)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
91611-60820	Bolt(For Transaxle & Engine Setting)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
91611-60825	Bolt(For Head To Camshaft Bearing Cap)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
91611-B0614	Bolt (For Rear Differential Breather Plug Oil Deflector)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
91611-B0816	Bolt	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
91611-B0825	Bolt(For Clutch Release Cylinder Setting)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
91611-G0820	Bolt	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
96221-30905	CLAMP	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
96940-33055	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
96940-33056	Hose, Flexible, No.1(For Front)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
96940-33606	Hose, Flexible(For Rear Brake Tube)	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
96991-10080	CLIP	Brake Tube & Clamp ([08.1988 - ] (8808- )YR3#)
