YR31

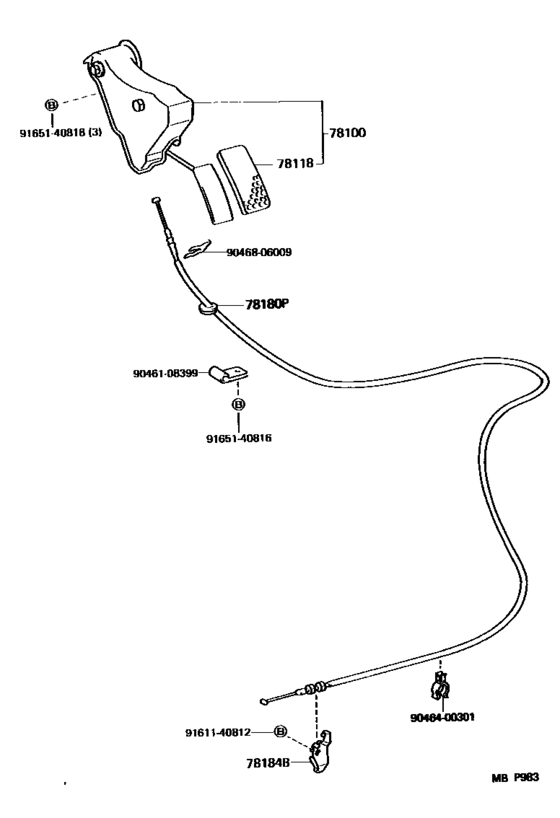

Accelerator Link ([08.1988 - ] (8808- )) 11
| # | OEM | Part name |
|---|---|---|
| 78100 | 78105-28040 | Link Assy, Accelerator |
| 78118 | 78119-95700 | Pad, Accelerator Pedal |
| 78180 | 78180-28030 | Wire Assy, Accelerator - ACCELERATOR CONTROL |
| 78184 | 78184-87005 | Bracket Sub-Assy, Accelerator Control Cable |
| 9046108399 | 90461-08399 | New Genuine Part |
| 9046400301 | 90464-00301 | Clamp |
| 9046806009 | 90468-06009 | New Genuine Part |
| 9161140812 | 91611-40812 | Bolt(for Drive Plate & Torque Converter Setting) |
| 9161140812 | 91611-B0812 | Bolt |
| 9165140816 | 91651-40816 | BOLT |
| 9165140818 | 91651-40818 | BOLT, W-WASHER |
| OEM | Part name | Category |
|---|---|---|
| 78105-28040 | Link Assy, Accelerator | Accelerator Link ([08.1988 - ] (8808- )) |
| 78119-95700 | Pad, Accelerator Pedal | Accelerator Link ([08.1988 - ] (8808- )) |
| 78180-28030 | Wire Assy, Accelerator - ACCELERATOR CONTROL | Accelerator Link ([08.1988 - ] (8808- )) |
| 78184-87005 | Bracket Sub-Assy, Accelerator Control Cable | Accelerator Link ([08.1988 - ] (8808- )) |
| 90461-08399 | New Genuine Part | Accelerator Link ([08.1988 - ] (8808- )) |
| 90464-00301 | Clamp | Accelerator Link ([08.1988 - ] (8808- )) |
| 90468-06009 | New Genuine Part | Accelerator Link ([08.1988 - ] (8808- )) |
| 91611-40812 | Bolt(for Drive Plate & Torque Converter Setting) | Accelerator Link ([08.1988 - ] (8808- )) |
| 91611-B0812 | Bolt | Accelerator Link ([08.1988 - ] (8808- )) |
| 91651-40816 | BOLT | Accelerator Link ([08.1988 - ] (8808- )) |
| 91651-40818 | BOLT, W-WASHER | Accelerator Link ([08.1988 - ] (8808- )) |
