Search › Model › YR27

YR27

Toyota VAN · 1983 · 4,468 parts · 164 categories

← Back to categories

4,468 items

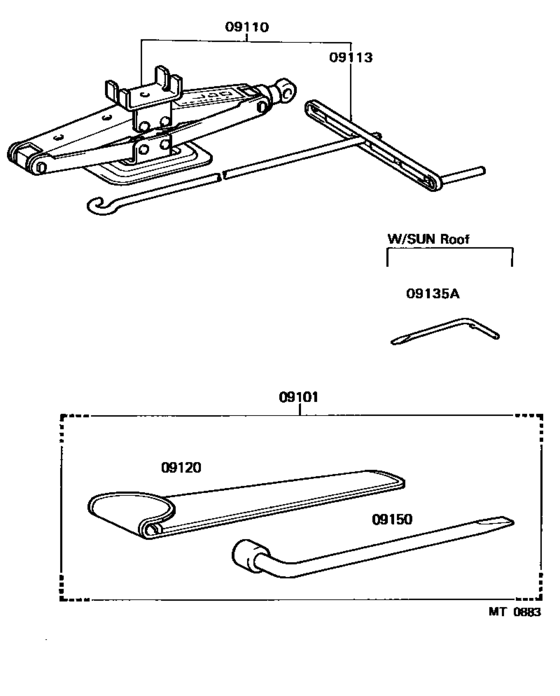

Standard Tool ([08.1983 - 09.1985] (8308-8509)) 10

#	OEM	Part name
9101	09101-14070	Tool Set, Standard W/o Jack
9110	09110-27040	Jack Assy
9110	09116-35041	Lever, Jack Handle
9110	09111-27040	Jack Assy
9110	09115-27040	Rod Sub-Assy, Jack Handle
9113	09113-13021	Handle, Jack
9120	09120-12030	Bag, Tool
9120	09120-32010	Bag, Tool (Black)
9150	09150-40010	Wrench, Hub Nut Box
9150	09033-1C100	WRENCH

OEM	Part name	Category
09033-1C100	WRENCH	Standard Tool ([08.1983 - 09.1985] (8308-8509))
09101-14070	Tool Set, Standard W/o Jack	Standard Tool ([08.1983 - 09.1985] (8308-8509))
09110-27040	Jack Assy	Standard Tool ([08.1983 - 09.1985] (8308-8509))
09111-27040	Jack Assy	Standard Tool ([08.1983 - 09.1985] (8308-8509))
09113-13021	Handle, Jack	Standard Tool ([08.1983 - 09.1985] (8308-8509))
09115-27040	Rod Sub-Assy, Jack Handle	Standard Tool ([08.1983 - 09.1985] (8308-8509))
09116-35041	Lever, Jack Handle	Standard Tool ([08.1983 - 09.1985] (8308-8509))
09120-12030	Bag, Tool	Standard Tool ([08.1983 - 09.1985] (8308-8509))
09120-32010	Bag, Tool (Black)	Standard Tool ([08.1983 - 09.1985] (8308-8509))
09150-40010	Wrench, Hub Nut Box	Standard Tool ([08.1983 - 09.1985] (8308-8509))

Source: Public OEM parts-catalog data
Variants: 2 / 8
Category: 164
Collected: 2026-08-04
