YR27

Toyota VAN · 1983 · 4,468 parts · 164 categories
YR27 ×

← Back to categories

4,468 items

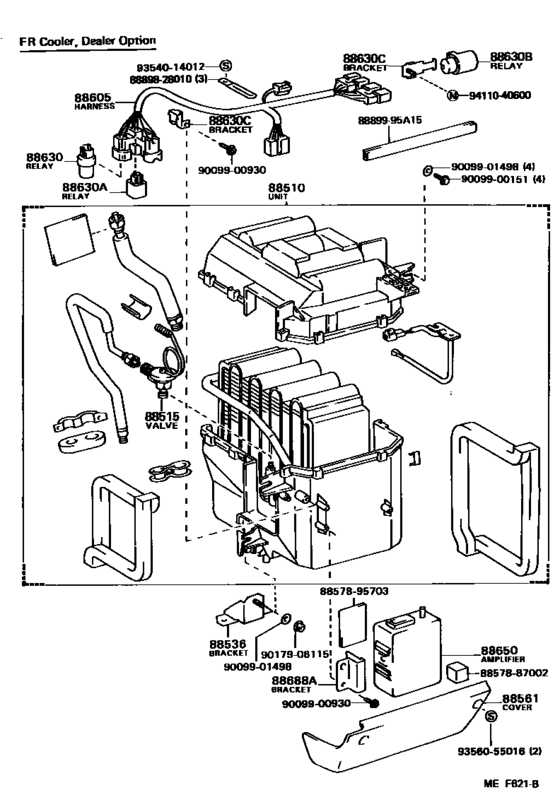

Heating & Air Conditioning - Cooler Unit ([08.1984 - 08.1985] (8408-8508)) 35
#OEMPart name
88510 88510-28041 Unit Assy, Cooler
88510 88510-28090 Unit Assy, Cooler
88510 88510-87011 Unit Assy, Cooler
88510 88510-28360 Unit Assy, Cooling (Rear)
88510 88510-28060 Unit Assy, Cooler
88510 88510-28070 Unit Assy, Cooler
88515 88515-16030 Valve, Cooler Expansion
88515 88515-16031 Valve, Cooler Expansion
88515 88515-87002 Valve, Cooler Expansion
88515 88515-87003 Valve, Cooler Expansion
88536 88536-28010 Bracket, Cooling Unit, No.1
88561 88899-28010 Cover, Cooler Unit
88605 88605-28031 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-28050 Harness Sub-Assy, Cooler Wiring, No.1
88630 90987-03001 Relay
88630 90987-02004 Relay Assy, Starter
88630 88630-28010 Relay Assy, Cooler
88630 88631-28010 Bracket, Cooler Relay
88650 88650-28010 Amplifier Assy, Cooler Stabilizer
88650 88650-87009 Amplifier Assy, Cooler Stabilizer
88650 88650-87011 Amplifier Assy, Cooler Stabilizer
88650 88650-14051 Amplifier Assy, Cooler Stabilizer
88688 88688-14080 Bracket, Cooler Stabilizer Amplifier
8889995 88899-95A15 Cover, Evaporator
8857887002 88578-87002 Paking, Cooler Air Duct
8857895703 88578-95703 Packing, Cooler Stabilizer Amplifier
8889828010 88898-28010 Clamp (for Cooler Relay)
8889828010 88569-87003 Clamp (for Cooler Relay)
9009900151 90099-00151 New Genuine Part
9009900930 90099-00930 New Genuine Part
9009901498 90099-01498 New Genuine Part
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9354014012 93540-14012 Screw
9356055016 93560-55016 Screw(For Mat Set Plate)
9411040600 94110-40600 Nut, Rock
