Search › Model › YR27

YR27

Toyota VAN · 1983 · 4,468 parts · 164 categories
YR27 ×

← Back to categories

4,468 items

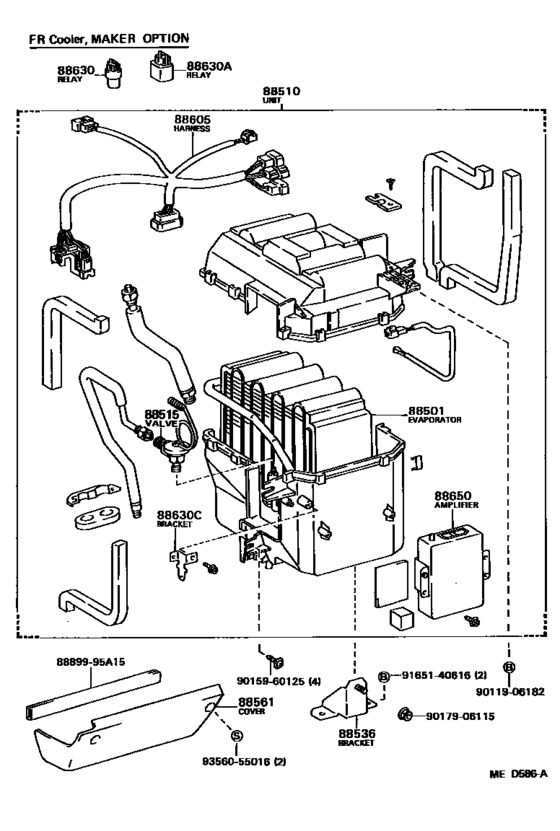

Heating & Air Conditioning - Cooler Unit ([08.1983 - 08.1985] (8308-8508)) 35
#OEMPart name
88501 88501-28010 Evaporator Sub-Assy, Cooler, No.1
88501 88501-28011 Evaporator Sub-Assy, Cooler, No.1
88501 88501-87007 Evaporator Sub-Assy, Cooler, No.1
88501 88501-87010 Evaporator Sub-Assy, Cooler, No.1
88501 88501-87008 Evaporator Sub-Assy, Cooler, No.1
88510 88510-28041 Unit Assy, Cooler
88510 88510-28090 Unit Assy, Cooler
88510 88510-87011 Unit Assy, Cooler
88510 88510-28360 Unit Assy, Cooling (Rear)
88510 88510-28060 Unit Assy, Cooler
88510 88510-28070 Unit Assy, Cooler
88515 88515-16030 Valve, Cooler Expansion
88515 88515-16031 Valve, Cooler Expansion
88515 88515-87002 Valve, Cooler Expansion
88515 88515-87003 Valve, Cooler Expansion
88536 88536-28010 Bracket, Cooling Unit, No.1
88561 88899-28010 Cover, Cooler Unit
88605 88605-28031 Harness Sub-Assy, Cooler Wiring, No.1
88605 88605-28050 Harness Sub-Assy, Cooler Wiring, No.1
88630 90987-03001 Relay
88630 90987-02004 Relay Assy, Starter
88630 88631-28010 Bracket, Cooler Relay
88650 88650-28010 Amplifier Assy, Cooler Stabilizer
88650 88650-87009 Amplifier Assy, Cooler Stabilizer
88650 88650-87011 Amplifier Assy, Cooler Stabilizer
88650 88650-14051 Amplifier Assy, Cooler Stabilizer
8889995 88899-95A15 Cover, Evaporator
9011906182 90119-06182 Bolt, W/washer (For Floor Shift)
9015960125 90159-60125 New Genuine Part
9015960125 90159-60383 SCREW WWASHER
9017906115 90179-06115 Nut (For Rear Wiper Arm Setting)
9165140616 91651-40616 BOLT
9165140616 91621-60614 Bolt(For Transaxle & Engine Setting)
9165140616 90080-11395 New Genuine Part
9356055016 93560-55016 Screw(For Mat Set Plate)
Source
Public OEM parts-catalog data
Variants
2 / 8
Category
164
Collected
2026-08-04
