YR22

Toyota VAN · 1985 · 4,905 parts · 171 categories
YR22 ×

← Back to categories

4,905 items

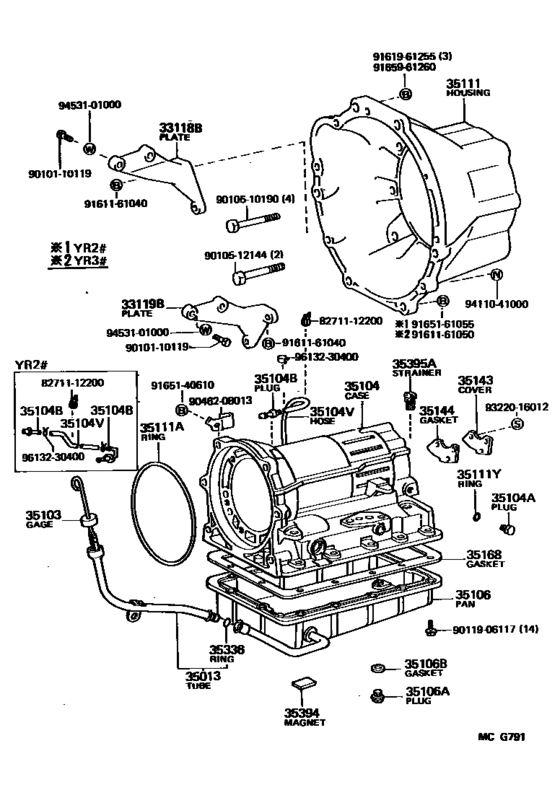

Transmission Case & Oil Pan (Atm) ([08.1988 - ] (8808- )4FC) 46
#OEMPart name
33118 33118-28020 Plate, Stiffener, Rh(Mtm)
33119 33119-28021 Plate, Stiffener, Lh(Mtm)
35013 35013-28020 Tube Sub-Assy, Transmission Oil Filler
35103 35103-26012 Gage Sub-Assy, Transmission Oil Level
35104 35104-26021 Case Sub-Assy, Automatic Transmission
35104 90341-08001 Plug, Transaxle Case, No.1
35104 90930-03098 Plug, Breather, No.1 (Atm)
35104 90930-03099 Plug, Breather, No.1 (Atm)
35104 90445-11084 Hose (For Breather Plug)
35104 90445-11090 Hose (For Breather Plug)
35106 35106-30060 Pan Sub-Assy, Automatic Transmission Oil
35106 35106-30061 Pan Sub-Assy, Automatic Transmission Oil
35106 90341-10006 Plug (For Transfer Oil Pan)
35106 90341-10011 Drain Plug (No Type)
35106 35178-30010 Drain Plug Gasket
35111 35111-28011 Housing, Automatic Transmission
35111 90301-99054 Ring, O (For Automatic Transmission Housing)
35111 90301-06196 O Ring, Transaxle Case, No.1
35143 35143-22010 Cover, Transmission Case, Rear
35144 35144-22010 Gasket, Transmission Case Rear Cover
35144 35144-28010 Gasket, Transmission Case Rear Cover
35168 35168-22011 Gasket, Automatic Transmission Oil Pan
35336 90301-09173 Ring, O(For Transmission Oil Filler Tube)
35394 35394-30011 Magnet, Oil Cleaner (For Transmission)
35395 35395-40010 Strainer, Governor Oil
8271112200 82711-12200 Clamp (For Fuel Lid Lock Control Cable)
9010110119 90101-10119 New Genuine Part
9010510190 90105-10190 New Genuine Part
9010512144 90105-12144 New Genuine Part
9011906117 90119-06117 Bolt (For Automatic Transmission Oil Pan)
9011906117 90119-06173 Bolt, Stud (For Automatic Transmission Oil Pan Setting)
9046208013 90462-08013 New Genuine Part
9161161040 91611-61040 Bolt(For Transaxle Case & Engine Setting)
9161161040 91612-61040 Bolt(For Transmission Case & Engine Setting)
9161161050 91611-61050 Bolt(For Transaxle & Engine Setting)
9161161050 91612-61050 Bolt(For Transaxle & Engine Setting)
9161961255 91619-61255 Bolt(For Transaxle & Engine Setting)
9165140610 91651-40610 RIVET
9165161055 91651-61055 New Genuine Part
9165161055 91651-61060 New Genuine Part
9165961260 91659-61260 Bolt(For Transaxle & Engine Setting)
9322016012 93220-16012 SCREW
9411041000 94110-41000 Nut(For Steering Damper)
9453101000 94531-01000 WASHER
9613230400 96132-30400 Clip Or Clamp(For Ventilation Hose)
9613230400 96132-51000 Clip Or Clamp(For Ventilation Hose)
